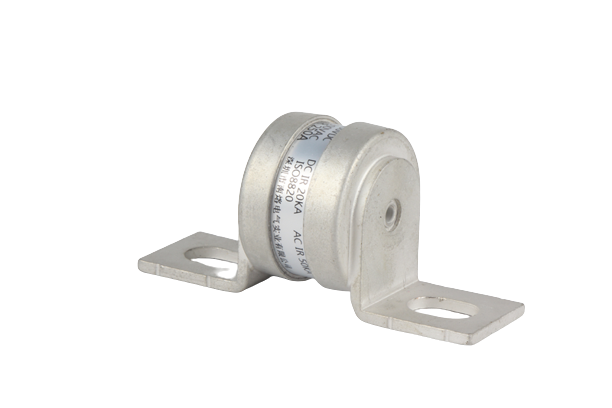

Dissmann^® White 250 Amp Low Voltage Automotive Fuse

Dissmann^® Low voltage automotive fuse BS88 british standard fuse HBB-250LMP, rated voltage: DC250V / AC300V, rated current: 250A, breaking capacity: DC20KA, AC100KA.

BS88 HBB Series fuses are round ceramic tube type fast-acting fuses, their dimensions and performance conforming to UL248-13, ISO8820, JAS0-D622, environmental protection conforming to European Union and China RoHS directives.

BS88 HBB Series fuses feature small size, and high breaking capacity, applicable to a wide temperature range, can withstand high strength mechanical vibration and impact, wide temperature impact and strong chemical load, is suitable for road vehicle industry applications, and can be used as short circuit, overload and backup protection of electric vehicle driving power system, power conversion system, energy storage and power battery, energy storage capacitor, frequency conversion controller, charger, wire and other vehicle devices.

Specifications of the  White 250amp Automotive Fuse

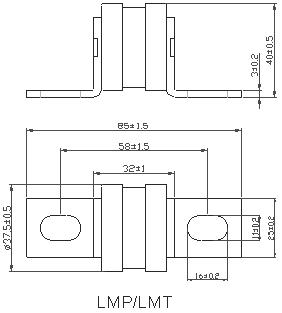

1.Shape and mounting dimensions of the BS88 fuse:

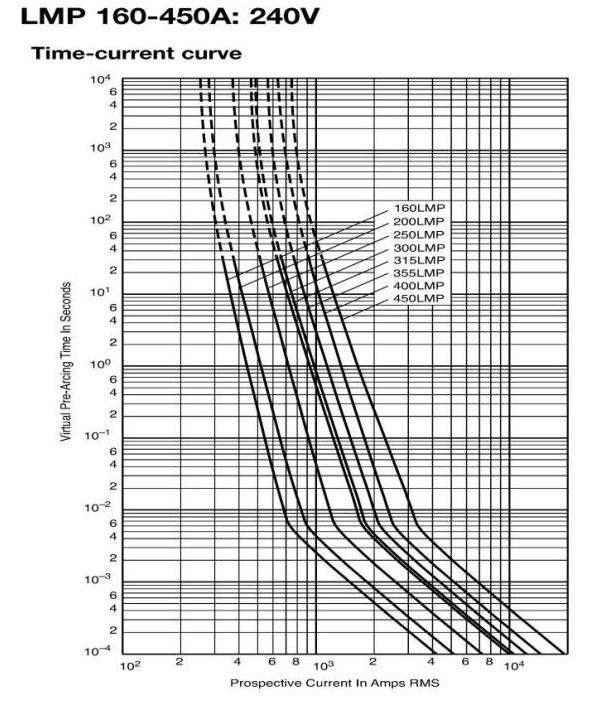

2.Current characteristic curve of the BS88 fuse:

3.More fuse models according to the rated current for you to choose :

Number	Model	Product code(A)	Rated current	I²t(A²Sec)		Power consumption(W)
				弧前	熔断
2	LMP/LET	HBB-50LMP/HBB-50LMT	50	107.5	1570	8.2
		HBB-63LMP/HBB-63LMT	63	165	2485	9.3
		HBB-80LMP/HBB-80LMT	80	275	4000	10.5
		HBB-100LMP/HBB-100LMT	100	420	6250	12.3
		HBB-125LMP/HBB-125LMT	125	670	11500	14
		HBB-160LMP/HBB-160LMT	160	1065	15440	16.5
		HBB-200LMP/HBB-200LMT	200	1460	19300	26.8
		HBB-250LMP/HBB-250LMT	250	3100	38670	28
		HBB-300LMP/HBB-3000LMT	300	5280	65300	30
		HBB-315LMP/HBB-315LMT	315	5830	72000	33
		HBB-350LMP/HBB-350LMT	350	7760	97200	34.7
		HBB-400LMP/HBB-400LMT	400	13550	153000	38.9
		HBB-450LMP/HBB-450LMT	450	17470	210100	47.3
		HBB-500LMP/HBB-500LMT	500	21250	259400	58.3

How to choose a right model of the BS88 Fuse:

        You can choose the right BS88 fuse for your project based on the rated current, send us the product code to get a quick quotation. If your project requires customized BS88 fuses, you can tell us the special customized requirements of the products you need, and we will give you a solution and quote you within 48 hours.
