EV / HEV 250 Volt Car DC Electric Vehicle Fuse For Charging Station 300Amp

The Dissmann square ceramic bolt on fuse has a voltage rating of DC 250V,current rating of 300A,and breaking capacity of DC20KA,which have the characteristics of small size, and high reliability.It has a non-transparent ceramic tube body that does not allow breaking or deformation.The copper cap should be firmly riveted to ensure that the copper cap cannot be removed when the fuse link is not damaged. After the sample is immersed in water at 15℃-35℃ for 24 hours and taken out, on each end cap, evenly apply a pulling force to 5N, keep it for 1 minute, the copper cap should not fall off.

2.EV fuse applications

This EV fuse is designed to bolt directly on the EV/HEV automotive,high power EV PDU and battery protection.It has been refer to UL248-20,ISO8820,JASO-D622,IEC60269,RoHS.

3.Product characteristic

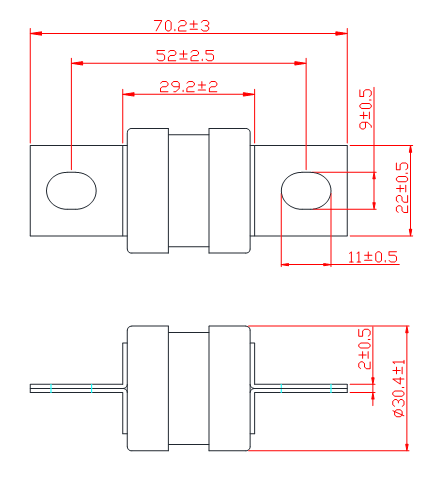

4.Product dimension in milimeter

5.Product system code of EV fuse

6.FAQ

Question 1:How could i get the samples?

Answer:For samples, we are usually only one free. Other samples need to be charged, and the freight and other costs are borne by the buyer.

Question 2:How long is the delivery time?

Answers:For samples,In the case of materials, we need about a week；For mass order,In the case of materials, two to three weeks.
