Dissmann^®High Voltage Automotive Fuses 1000VDC 400A Hybrid Electric Vehicle (HEV) fuses——Made in China

HEV-J-Q-400 Automotive fuse offers rated current 400 A, rated voltage DC1000V, And this high voltage fuse is designed to protect high-voltage accessory circuits in electric and hybrid electric vehicles.

HEV-A-Q Module series fuses offers rated current 5A- 800 A, rated voltage AC/DC1000V. Hybrid Electric Vehicle (HEV) fuses have been tested to automotive quality standards for environmental reliability, transient current cycling, and device electrical and fusing characteristics. They are RoHS compliant and halogen free,and certified UL248-20,ISO8820,JAS0-D622.

Product introduction of the HEV automotive fuse

1.Shape and mounting dimensions of the HEV-J-Q Module series automotive fuses:

Size code	A±2	B±1.5	C±1	D±1.5	E±1.5	F±1	G±0.5	H±0.2	J±1
HF1	124	25	78	100	109	9	18	4	13.5
HF2	117	33	78	93	100	9	22	5	12.5
HF3	139.5	38	83.5	99.5	120	10.5	25	6	20.7
HF4	146.5	50	89.5	106	126.5	10.5	38	6	20.7
HF5	197.5	63	89.5	123.5	162.5	13.5	50	10	33

2.Model classification according to automotive fuses rated current:

Model	Rated Current A	I²t(A²s)		Power dissipation W	Size code	Install
Model	Rated Current A	弧前	总	Power dissipation W	Size code	Install
HEV-J-Q-5	5A	20	115	1.8	HF1	Mounting Bolt M8 recommended torque 11N·m
HEV-J-Q-10	10A	30	170	2.2
HEV-J-Q-15	15A	48	220	3.1
HEV-J-Q-20	20A	72	360	3.6
HEV-J-Q-25	25A	85	510	4.2
HEV-J-Q-30	30A	110	830	5.1
HEV-J-Q-35	35A	180	1250	6.3
HEV-J-Q-40	40A	290	1650	7.8
HEV-J-Q-45	45A	350	1900	8.5
HEV-J-Q-50	50A	440	2450	10.0
HEV-J-Q-60	60A	600	3500	12.5
HEV-J-Q-70	70A	820	5500	14
HEV-J-Q-80	80A	1050	6500	16
HEV-J-Q-90	90A	1800	10500	17	HF2
HEV-J-Q-100	100A	2300	12000	18
HEV-J-Q-125	125A	3400	21000	20
HEV-J-Q-150	150A	4900	25500	27
HEV-J-Q-175	175A	9200	40000	30	HF3	Mounting Bolt M10 recommended torque 20N·m
HEV-J-Q-200	200A	15000	60000	32
HEV-J-Q-225	225A	19000	105000	40
HEV-J-Q-250	250A	24000	113000	47
HEV-J-Q-275	275A	25000	130000	49
HEV-J-Q-300	300A	26000	160000	52
HEV-J-Q-325	325A	33000	180000	55
HEV-J-Q-350	350A	42000	230000	60	HF4
HEV-J-Q-400	400A	71000	320000	65
HEV-J-Q-450	450A	78000	300000	80
HEV-J-Q-500	500A	105000	350000	95
HEV-J-Q-600	600A	163000	530000	105	HF5	Mounting bolt M12 recommended torque 28N·m
HEV-J-Q-700	700A	320000	680000	155
HEV-J-Q-800	800A	420000	870000	185

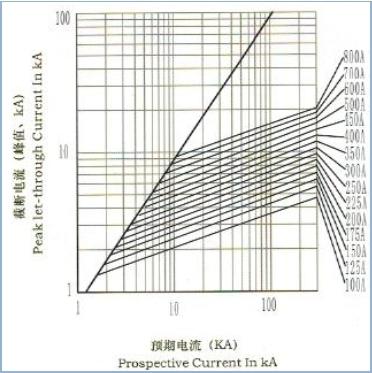

3.Current characteristic curve of the HEV-J-Q Module series automotive fuses :

High Voltage Automotive Fuses 1000VDC 400A Hybrid Electric Vehicle (HEV) fuses

Warm tips:You can choose the right HEV fuse for your project based on the model, so you will get a quote within one business day. If your project requires customized automotive fuses, you can tell us the special customized requirements of the products you need, and we will give you a solution and quote you within three working days.
