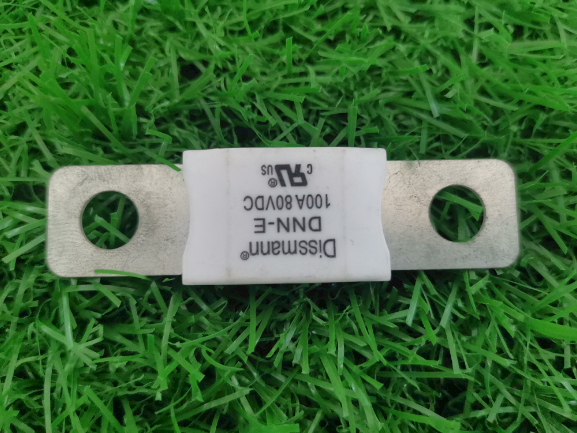

50Amp Low Voltage Car Battery Fuse UL Standard Safety Car Battery Fuse
80amp UL Standard Battery Fuse manufacturer in China
1.Application of the battery fuse
This series of products are suitable to rated voltage of 80VDC,rated current of 10A-800A,breaking capacity of DC2700A. Applicable to a wide temperature range, can withstand high-intensity mechanical vibration and shock, temperature shock and strong chemical load, suitable for road vehicle industry applications, can be used as short-circuit and backup protection for electric vehicle drive power system, power conversion system, energy storage and power battery, energy storage capacitor, inverter controller, charger, MSD, wire and other automotive devices and equipment.
2.Product characteristic of 80amp fuse
| Model | Rated Current | Installation |
| MEV-H-F00-315 | 315A |
Mounting bolt M8 recommended torque 10N.m |
3.Product type of the 80amp automotive fuse,Choose the model according to the rated current
| Rated current | Rated voltage | Rated voltage |
| 10A～500A | 32Vdc | 2700A |
| 10A～500A | 58Vdc | 2700A |
| 10A～500A | 80Vdc | 2700A |
4.Electronic performances
Performance test requirements
| Load | Opening time | |
| 20A/50A/100A | ||
| minimum time | Max time | |
| 100% | 14400s | - |
| 200% | 0 | 100s |
| 600% | 0 | 1s |
5.Dimension in milimeter
