Blue UL Certified DC32V 15A Automotive Blade Fuses Fast Acting
Price:
Negotiable
MOQ:
100pcs
Delivery Time:
5-8 days
Brand:
Dissmann
Product Description

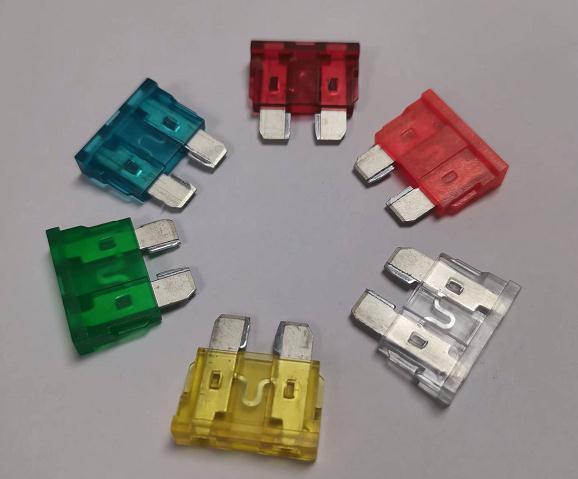

Product basic information Medium plug-in automobile fuse
Rated voltage: 32VDC
Rated current: 1~40A
Breaking capacity: DC1000A
Conform to EU and China RoHS directives
The executive standard is UL248, UL certification number: E343461
1.Dimension of the DC32V Automotive Blade Fuse (mm)
2.Product model of the Automotive Blade Fuse
|
Model 型号 |
Product code 产品代码 |
Rated current 额定电流 A |
I²t (A²Sec) |
Voltage drop 电压降 mV |
Pigment 颜色 |
| DFN-A | DFN-A-1 | 1 | 0.4 | 174 | 黑色(Black) |
| DFN-A-2 | 2 | 1.5 | 140 | 灰色(Gray) | |
| DFN-A-3 | 3 | 6.3 | 137 | 浅紫色(Violet) | |
| DFN-A-4 | 4 | 13 | 135 | 粉红色(Pink) | |
| DFN-A-5 | 5 | 25 | 125 | 浅棕色(Tan) | |
| DFN-A-7.5 | 7.5 | 56 | 115 | 棕色(Brown) | |
| DFN-A-10 | 10 | 110 | 110 | 红色(Red) | |
| DFN-A-15 | 15 | 295 | 102 | 蓝色(Blue) | |
| DFN-A-20 | 20 | 480 | 96 | 黄色(Yellow) | |
| DFN-A-25 | 25 | 1000 | 90 | 透明色(Clear) | |
| DFN-A-30 | 30 | 1460 | 86 | 绿色(Green) | |
| DFN-A-35 | 35 | 2205 | 88 | 深绿色(Dark green) | |
| DFN-A-40 | 40 | 3200 | 95 | 橙色(Orange) |
3.Current characteristic curve
Warm tips:You can choose the right automotive blade fuse for your project based on the model, so you will get a quote within 24 hours. If your project requires customized automotive fuses, you can tell us the special customized requirements of the products you need, and we will give you a solution and quote you within 48hours.
Why you choose us as your fuses product supplier in China?

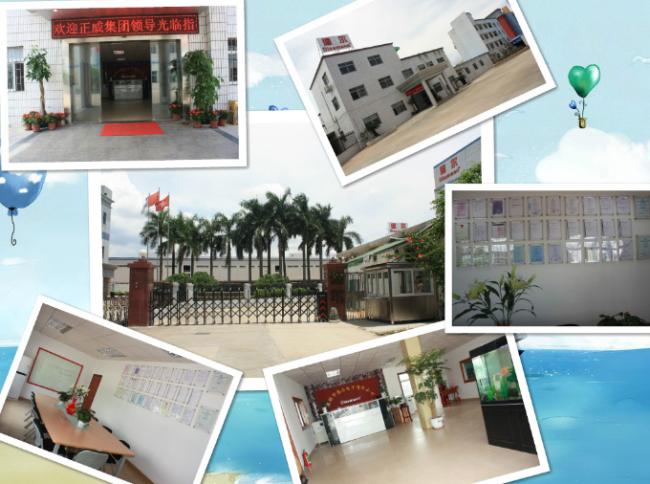

1.Focus on the production and development of fuse products for 20 years,factory located in Shenzhen China:
2.The fuse products comform to UL, TUV, VDE, ASTA, PSB, CCC, CQC, IATF16949, ISO9001-2015, ROHS standard.
Welcome you to get more information of the Automotive Blade fuses,We will provide you with fast and efficient services and high-quality fuse products.
