Fast acting DC32V 25A Clear Automotive Blade Fuses Conform To UL248
Price:
Negotiable
MOQ:
100pcs
Delivery Time:
5-8 days
Brand:
Dissmann
Product Description
Dissmann®UL248 Certified DC32V 25A Clear Automotive Blade Fuse
Rated voltage: DC32V
Rated current: 25A
Breaking capacity: DC1000A
Characteristic:Fast-acting
The executive standard is UL248, UL certification number: E343461
Conform to EU and China RoHS directives
1. Dimension of the DC32V DFN-A Series Automotive Blade Fuse (mm)
2. Product model of the DFN-A Series Automotive Blade Fuse
|
Model
|
Product code
|
Rated current A |
I²t (A²Sec) |
Voltage drop mV |
Pigment
|
| DFN-A | DFN-A-1 | 1 | 0.4 | 174 | (Black) |
| DFN-A-2 | 2 | 1.5 | 140 | (Gray) | |
| DFN-A-3 | 3 | 6.3 | 137 | (Violet) | |
| DFN-A-4 | 4 | 13 | 135 | (Pink) | |
| DFN-A-5 | 5 | 25 | 125 | (Tan) | |
| DFN-A-7.5 | 7.5 | 56 | 115 | (Brown) | |
| DFN-A-10 | 10 | 110 | 110 | (Red) | |
| DFN-A-15 | 15 | 295 | 102 | (Blue) | |
| DFN-A-20 | 20 | 480 | 96 | (Yellow) | |
| DFN-A-25 | 25 | 1000 | 90 | (Clear) | |
| DFN-A-30 | 30 | 1460 | 86 | (Green) | |
| DFN-A-35 | 35 | 2205 | 88 | (Dark green) | |
| DFN-A-40 | 40 | 3200 | 95 | (Orange) |
Notice:Choose the right product code according to the Rated Current.
3.Current characteristic curve of the DFN Series Automotive Blade Fuse
Warm tips:You can choose the right automotive blade fuse for your project based on the product code, so you will get a quote within 24 hours. If your project requires customized automotive fuses, you can tell us the special customized requirements of the products you need, and we will give you a solution and quote you within 48 hours.
Welcome you to get more information of the Automotive Blade fuses,We will provide you with fast and efficient services and high-quality fuse products.

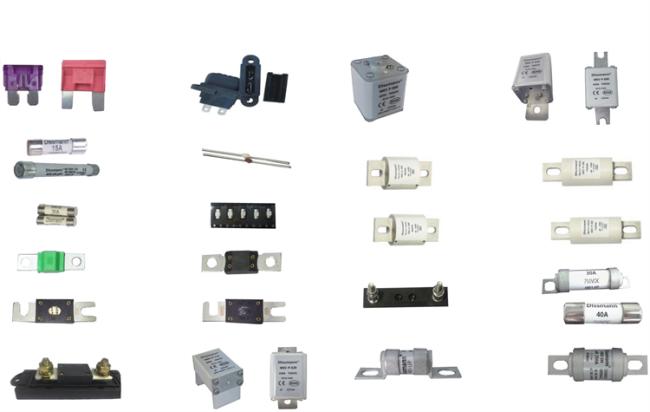

Other fuses are available for your choice:
