500VDC EV Charger Ceramic Automotive Fuses Bolt On Installation
500VDC EV charger fuse main designed for EV charger
Application of the EV fuse
This series products EV-H-Q are Ceramic Bolt-on Fuse; Applicable for road vehicle with small size, High Breaking capacity, Temperature shock resistance, Current surge, Mechanical vibration and shock, and Strong chemical load. Applicable for electric vehicle drive power system, Energy storage and power batteries, Energy storage capacitor, Frequency conversion controller, charger, wire and other automotive parts and equipment’s short circuit, overload and backup protection.
Related standard of the EV fuse
This series fuse dimension and performance conform to UL248, GB13539, IEC60269, and GB31465.
Basic information of EV fuse
Rated Voltage:AC/DC500V
Rated Current:10A-500A
Breaking Capacity:Ac100KA,DC20KA
Related Certificate:UL
Installation: Bolt on

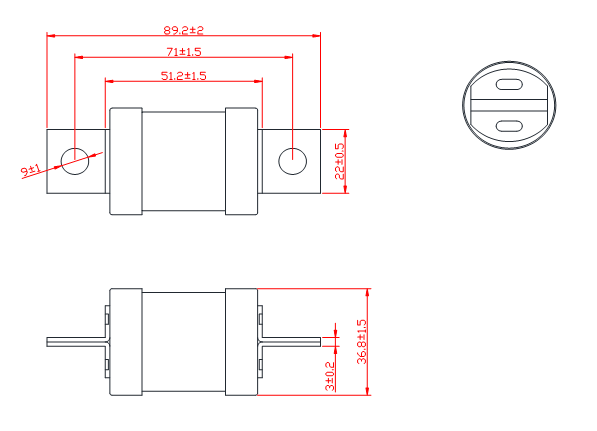

Dimension in milimeter of 500VDC fuse
Product system code
Materials of the EV fuse
| Part | Material |
| Fuse element | Silver copper tin alloy |
| End cap | Copper alloy tin plating |
| Fuse leg | Copper alloy tin plating |
| Fuse body | Ceramic tube |
| Filler | Quartz sand |
