UL Certified Automotive Blade Fuses , DC32V 10A Low Voltage Fuse
Price:
Negotiable
MOQ:
100pcs
Delivery Time:
5-8 days
Brand:
Dissmann
Product Description
Dissmann® UL Certified DC32V 10A Automotive Blade Fuse Low Voltage Fuse Made in China
Specifications of the DKN-A series Automotive Blade Fuse:
1. Dimension of the automotive balde fuse:
DKN-A Series Automotive blade fuse
2. DKN-A series fuse model rated voltage is DC32V, it's classification according to rated current :
Model | Product code | Rated current A | I²t (A²Sec) | Voltage drop mV | Pigment |
| DKN-A | DKN-A-2 | 2 | 2.8 | 170 | (Gray) |
| DKN-A-3 | 3 | 9.3 | 152 | (Violet) | |
| DKN-A-4 | 4 | 17 | 120 | (Pink) | |
| DKN-A-5 | 5 | 24 | 128 | (Tan) | |
| DKN-A-7.5 | 7.5 | 66 | 135 | (Brown) | |
| DKN-A-10 | 10 | 92 | 108 | (Red) | |
| DKN-A-15 | 15 | 270 | 98 | (Blue) | |
| DKN-A-20 | 20 | 380 | 96 | (Yellow) | |
| DKN-A-25 | 25 | 620 | 85 | (Clear) | |
| DKN-A-30 | 30 | 1120 | 86 | (Green) |

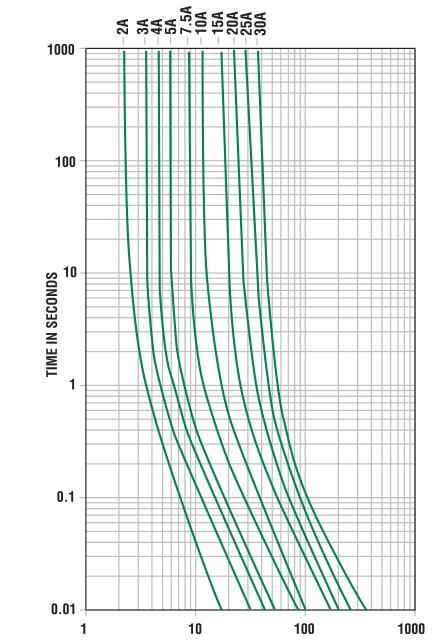

3.DKN-A series Automotive blade fuse Current Characteristic curve:
4.Performance criteria of the Automotive blade fuse
Test current item(A) | Current | Minimum time(s) | Maximum time(s) |
| 110% | 2A-30A | 360000 | ∞ |
| 135% | 2A-30A | 0.75 | 600 |
| 200% | 2A-30A | 0.15 | 5.0 |
| 350% | 2A-30A | 0.08 | 0.5 |
| 600% | 2A-30A | 0.03 | 0.1 |

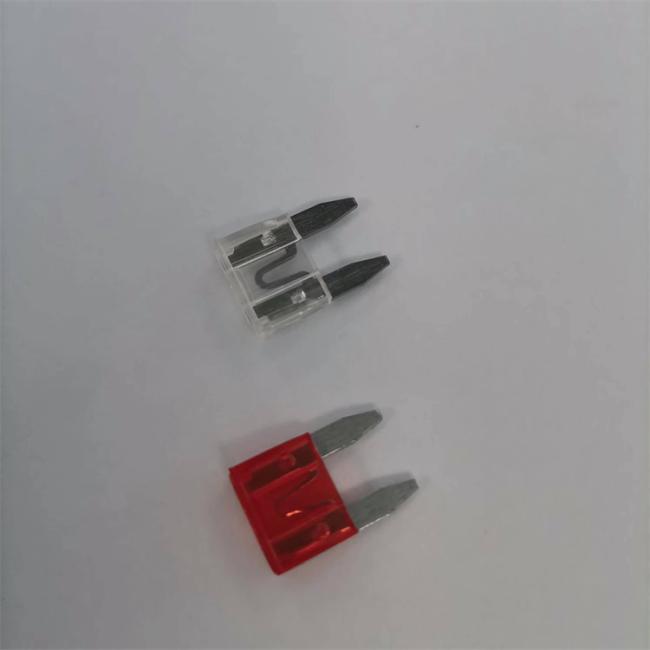

5.Dissmann® automotive blade fuse, include mini size,medium size,large size:
6.Other Fuses and fuse holders in our Factory:
7.Dissmann® fuse products through UL, TUV, VDE, ASTA, PSB, CCC, CQC, IATF16949, ISO9001-2015, ROHS certification.
8.Dissmann® fuse Factory Display:
Welcome you to get more information of the Automotive Blade Fuse,We will provide you with fast and efficient services and high-quality fuse products.
