DC500V 700A Dissmann Semiconductor Fuses , Fiber Pipe High Voltage Automotive Fuse

Price Negotiable

Price: Negotiable

MOQ: 100pcs

Delivery Time: 5-8 days

Brand: Dissmann

Product Description

Dissmann^®DC500V 700A Fiber Pipe High Voltage Automotive Fuse

Round Tube Bolted Fuse

The body of the HEV fuse is use the glass fiber tube,has good aging resistance and corrosion resistance.

DC500V Automotive Fuse for Semiconductor Protection

1. Size of the DC500V Semiconductor Fuses:

According to the diferent rated current, the size of the HEV fuse is slightly different

Size code	A±2	B±1.5	C±1	D±1.5	E±1.5	F±1	G±0.5	H±0.2	J±1
HZ1	81	22	40	55	66.5	9	15	3.3	14.75
HZ2	92.2	25	53	68	77	9	18	3.2	13.5
HZ3	92.2	33	53	68	75	9	22	5	12.5
HZ4	109	38	53	69	89.5	10.5	25	6	20.7
HZ5	110	50	53	70.5	90	10.5	38	6	20.7
HZ6	161	63	53	87	126	13.5	50	10	34
HZ7	177	76	81.5	113.5	139	16	60	10	28.4

2. Model classification of the DC500V Semiconductor Fuse:

Model	Rated Current A	I²t(A²s)		Power dissipation W	Size code	Install
Model	Rated Current A	Pre-arc	Total	Power dissipation W	Size code	Install
HEV-H-Q-35	35A	33	145	8.5	HZ1	Mounting Bolt M8 recommended torque 11N·m
HEV-H-Q-40	40A	74	315	8
HEV-H-Q-45	45A	100	430	8
HEV-H-Q-50	50A	130	650	8.5
HEV-H-Q-60	60A	200	880	10
HEV-H-Q-70	70A	210	900	10.5	HZ2
HEV-H-Q-80	80A	300	1360	12.5
HEV-H-Q-90	90A	350	1500	15.5
HEV-H-Q-100	100A	460	1950	17.5
HEV-H-Q-125	125A	750	3430	26	HZ3
HEV-H-Q-150	150A	1000	4450	31
HEV-H-Q-175	175A	1400	6100	36
HEV-H-Q-200	200A	1800	8300	41
HEV-H-Q-225	225A	4600	23000	39	HZ4	Mounting Bolt M10 recommended torque 20N·m
HEV-H-Q-250	250A	6250	32100	41
HEV-H-Q-275	275A	7800	40000	46
HEV-H-Q-300	300A	9600	49000	52
HEV-H-Q-325	325A	13500	63000	54
HEV-H-Q-350	350A	14000	72000	59
HEV-H-Q-400	400A	18500	95500	66
HEV-H-Q-450	450A	24000	125000	75	HZ5
HEV-H-Q-500	500A	28500	147000	84
HEV-H-Q-600	600A	40500	203000	108
HEV-H-Q-700	700A	54000	295000	122	HZ6	Mounting bolt M12 recommended torque 28N·m
HEV-H-Q-800	800A	75000	406000	130	HZ6
HEV-H-Q-1000	1000A	90000	430000	146	HZ7
HEV-H-Q-1200	1200A	120000	590000	180	HZ7

3. Current Characteristic curve of the Fuse:

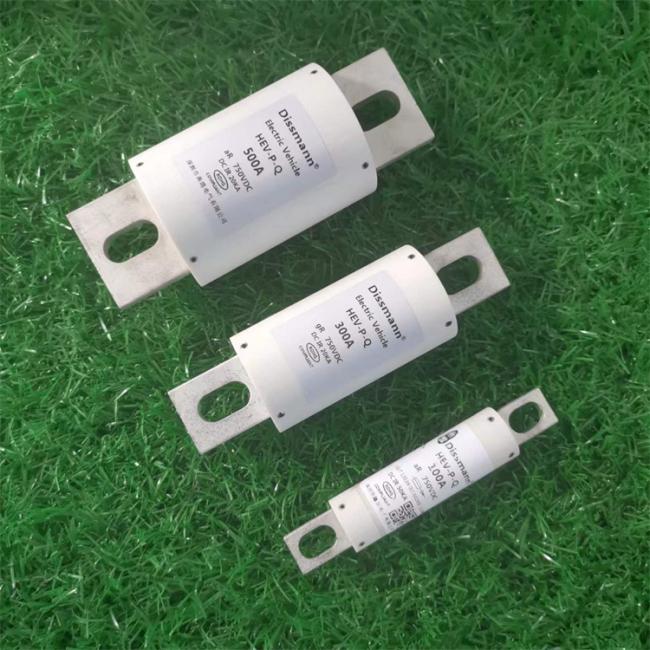

4. Automotive Fuses Provide By Dissmann Fuse:

5. Other Fuses produced in our factory:

UL Certified DC500V 200A Electric Vehicle Fuses Automotive Fuse Produced in China

6. Certifications Display:

7. Workshop Display:

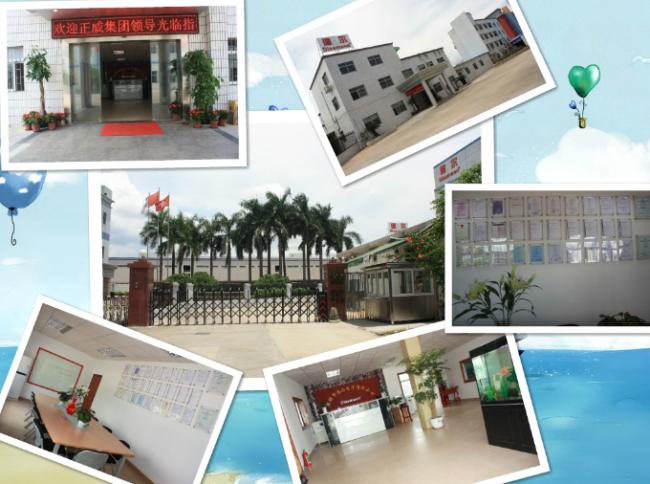

8. Factory Display:

Welcome you to get more information of the DC1000V HEV Automotive Fuses,We will provide you with fast and efficient services and high-quality fuse products.
