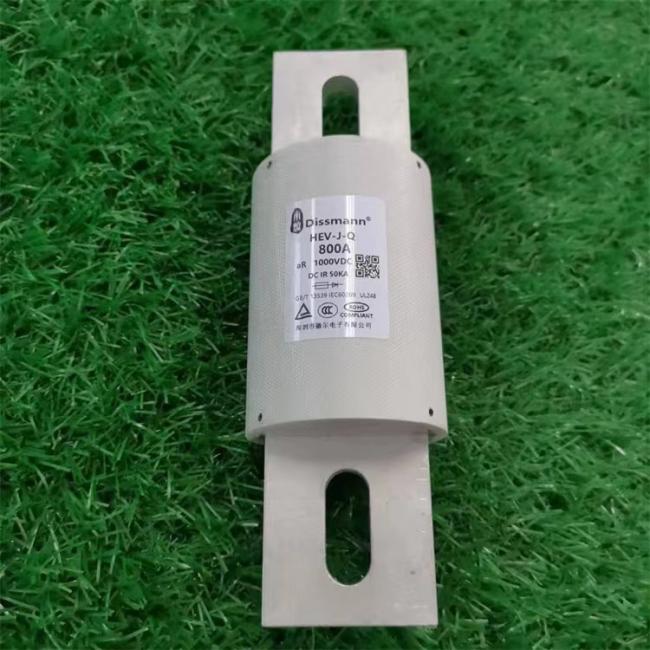

600 amp HEV Fiber tube high breaking capacity fuse made in China

Specification of the 600 amp HEV fuse

This HEV fuse products are round tube bolted connection fuses, with small size, high breaking capacity,temperature shock resistance,current surge, mechanical vibration and shock, and strong chemical load.The rating current of HEV series fuse is 5A~800A,rating voltage up to 1000VDC/AC,interrupting rating is AC100KA/DC30KA at 1000Volt.

Application

This series products are Round Tube Bolted Connection Fuses, with small size, high breaking capacity,

temperature shock resistance,current surge, mechanical vibration and shock, and strong chemical load.

applicable for electric vehicle drive power system,energy storage and power batteries,energy storage

capacitor,frequency conversion controller,charger, wire and other automotive parts and equipment’s short

circuit, overload and backup protection

Dimension of EV fuse in milimeter

Size code	A±2	B±1.5	C±1	D±1.5	E±1.5	F±1	G±0.5	H±0.2	J±1
HF1	124	25	78	100	109	9	18	4	13.5
HF2	117	33	78	93	100	9	22	5	12.5
HF3	139.5	38	83.5	99.5	120	10.5	25	6	20.7
HF4	146.5	50	89.5	106	126.5	10.5	38	6	20.7
HF5	197.5	63	89.5	123.5	162.5	13.5	50	10	33

Feature data of the 600 amp fuse

Model

Rated Current(A)

100% voltage drop (mv)

Size code

Installation

HEV-J-Q-600

600

140.2

HF5

Mounting Bolt M12,

Recommend

Torque: 28N.m

Size code

HT1:5A-80A,Mouting bolt M8 recommended torque 11N·m

HT2:90A-150A,Mouting bolt M8 recommended torque 11N·m

HT3:175A-325A,Mouting bolt M10 recommended torque 20N·m

HT4:350A-500A,Mouting bolt M10 recommended torque 20N·m

HT5:600A-800A,Mouting bolt M12 recommended torque 28N·m

Standard of the HEV fuse

The HEV series fuse meets the requirements of UL248-20,ISO8820,JASO-D622,RoHS compliant,TUV,CE.

Structure of HEV fuse

The fuse is mainly composed of tube body, end cap, fuse and quartz sand.This type of fuse tube is made of fiber,the end cap is a made of copper alloy tin plating,and fuse wire is made of copper strip.

FAQ

Question:How to select the current of the fuse?

Answer:Generally, we will calculate our rated current fuse according to 1.5 times of the customer's actual operating current.
