240VAC Ceramic Automotive Fuses , British Standard BS88 Fuse
Dissmann®240VAC Ceramic Automotive Fuses BS88 British Standard Fuse Made in China

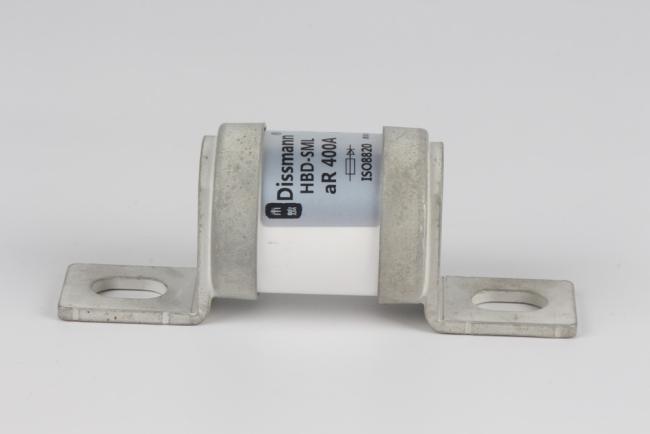

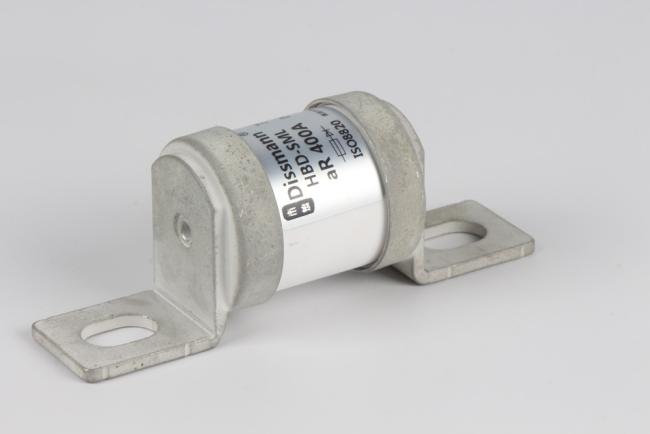

240VAC Ceramic Automotive Fuses
Product basic information of the BS88 fuse
- Bolt connection type quick fuse,
- the size and performance comply with GB13539, IEC60269, UL248
- Rated voltage: DC150V/AC240V or less
- Rated current: 6~900A;
- Protection category: aR;
- Breaking capacity: AC100KA/DC50KA
- Conform to EU and China RoHS directives
- Meet the requirements of QC/T413, ISO8820 and JASOD622
- This series of products is a round tube type fast fuse with small volume and high breaking capacity. It is applicable to a wide temperature range, can withstand high strength mechanical vibration and impact, wide temperature impact and strong chemical load, is suitable for road vehicle industry applications, and can be used as short circuit, overload and backup protection of electric vehicle driving power system, power conversion system, energy storage and power battery, energy storage capacitor, frequency conversion controller, charger, wire and other vehicle devices and equipment.
Dimension of the BS88 fuse:
The BS88-HBD series 240VAC fuse mode
| Number |
Model
|
Product code |
Rated current A |
I²t(A²Sec) |
Power consumption W |
|
| Pre-arc | Fusing | |||||
| 1 | LCP/LCT | HBD-6LCP/HBD-6LCT | 6 | 2.00 | 8.8 | 1.00 |
| HBD-10LCP/HBD-10LCT | 10 | 3.76 | 21.6 | 2.48 | ||
| HBD-12LCP/HBD-12LCT | 12 | 6.92 | 31.6 | 2.48 | ||
| HBD-16LCP/HBD-16LCT | 16 | 19.7 | 98.4 | 2.50 | ||
| HBD-20LCP/HBD-20LCT | 20 | 24.6 | 156.0 | 3.82 | ||
| 2 | LEP/LET | HBD-25LEP/HBD-25LET | 25 | 17.6 | 246.0 | 3.96 |
| HBD-32LEP/HBD-32LET | 32 | 31.2 | 442.0 | 4.75 | ||
| HBD-35LEP/HBD-35LET | 35 | 49.3 | 590.0 | 4.90 | ||
| HBD-50LEP/HBD-50LET | 50 | 97.6 | 136.5 | 6.80 | ||
| HBD-63LEP/HBD-63LET | 63 | 176.0 | 2120.0 | 8.95 | ||
| HBD-80LEP/HBD-80LET | 80 | 293.0 | 3695.0 | 9.70 | ||
| HBD-100LEP/HBD-100LET | 100 | 580.0 | 7300.0 | 10.2 | ||
| HBD-125LEP/HBD-125LET | 125 | 597.0 | 7380.0 | 15.8 | ||
| HBD-160LEP/HBD-160LET | 160 | 1060.0 | 15440.0 | 19.0 | ||
| HBD-180LEP/HBD-180LET | 180 | 1540.0 | 27950.0 | 21.0 | ||
| 3 | LMP/LMT | HBD-160LMP/HBD-160LMT | 160 | 1065.0 | 15440.0 | 16.5 |
| HBD-200LMP/HBD-200LMT | 200 | 1460.0 | 19300.0 | 26.8 | ||
| HBD-250LMP/HBD-250LMT | 250 | 3100.0 | 38670.0 | 28.0 | ||
| HBD-315LMP/HBD-315LMT | 315 | 5830.0 | 72000.0 | 33.0 | ||
| HBD-350LMP/HBD-350LMT | 350 | 7760.0 | 97200.0 | 34.7 | ||
| HBD-400LMP/HBD-400LMT | 400 | 13550.0 | 153000.0 | 38.9 | ||
| HBD-450LMP/HBD-450LMT | 450 | 17470.0 | 210100.0 | 42.3 | ||
| HBB-500LMP/HBD-500LMT | 500 | 21250.0 | 259400.0 | 58.3 | ||
| HBB-550LMP/HBD-550LMT | 550 | 25500.0 | 313000.0 | 76.0 | ||
| 5 | LMMP/LMMT | HBD-400LMMP/HBD-400LMMT | 400 | 5830.0 | 76500.0 | 57.7 |
| HBD-500LMMP/HBD-500LMMT | 500 | 13600.0 | 162400.0 | 62.0 | ||
| HBD-630LMMP/HBD-630LMMT | 630 | 23200.0 | 285300.0 | 74.0 | ||
| HBD-710LMMP/HBD-710LMMT | 710 | 31000.0 | 437000.0 | 77.0 | ||
| HBD-800LMMP/HBD-800LMMT | 800 | 50400.0 | 569000.0 | 80.1 | ||
| HBD-900LMMP/HBD-900LMMT | 900 | 72600.0 | 758000.0 | 96.0 | ||

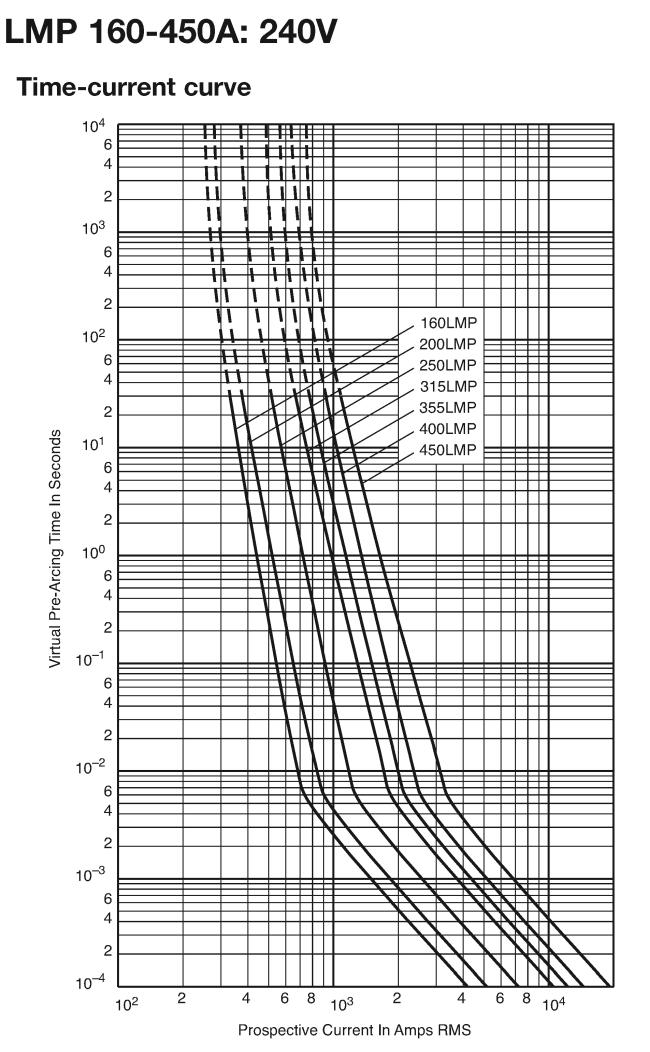

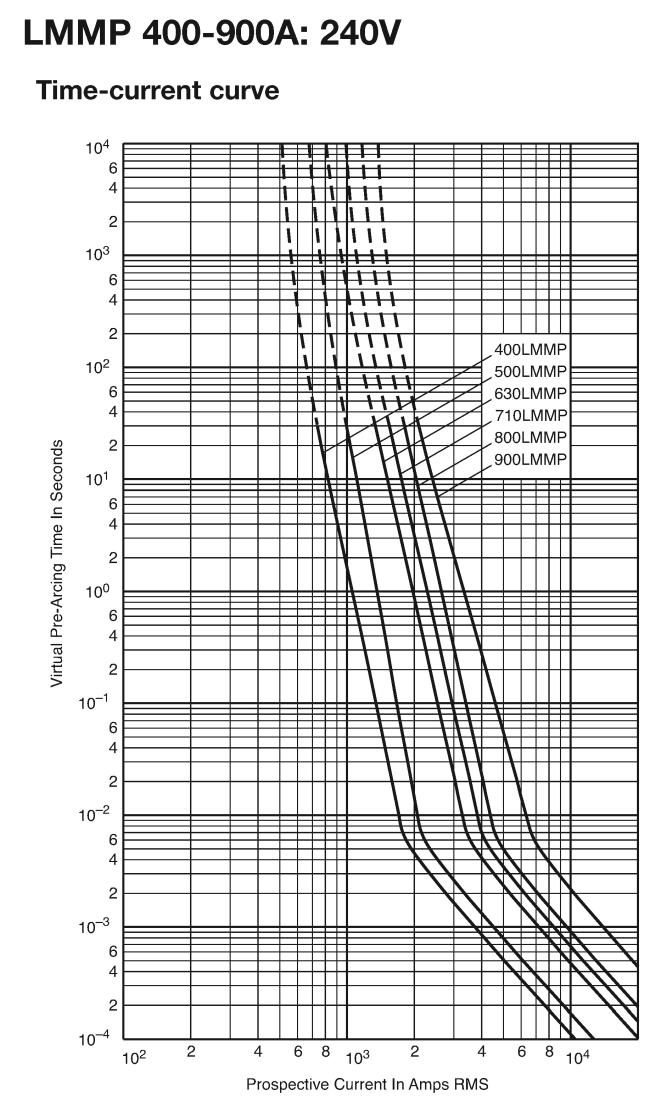

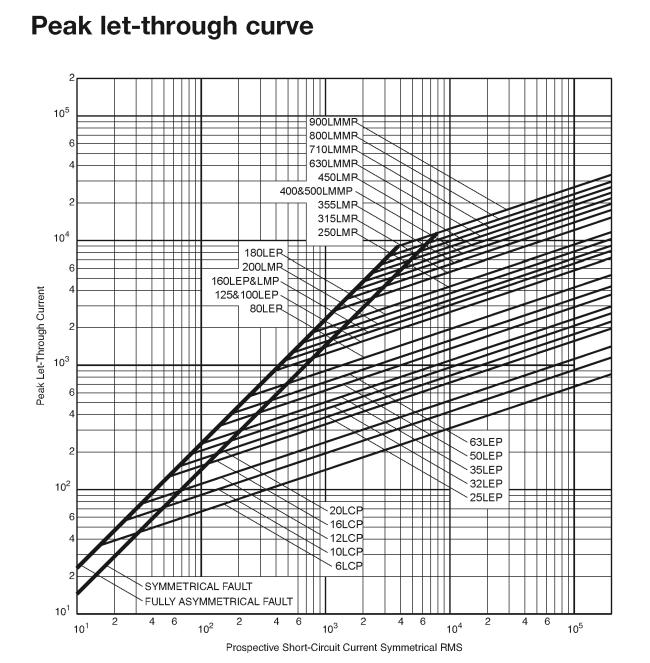

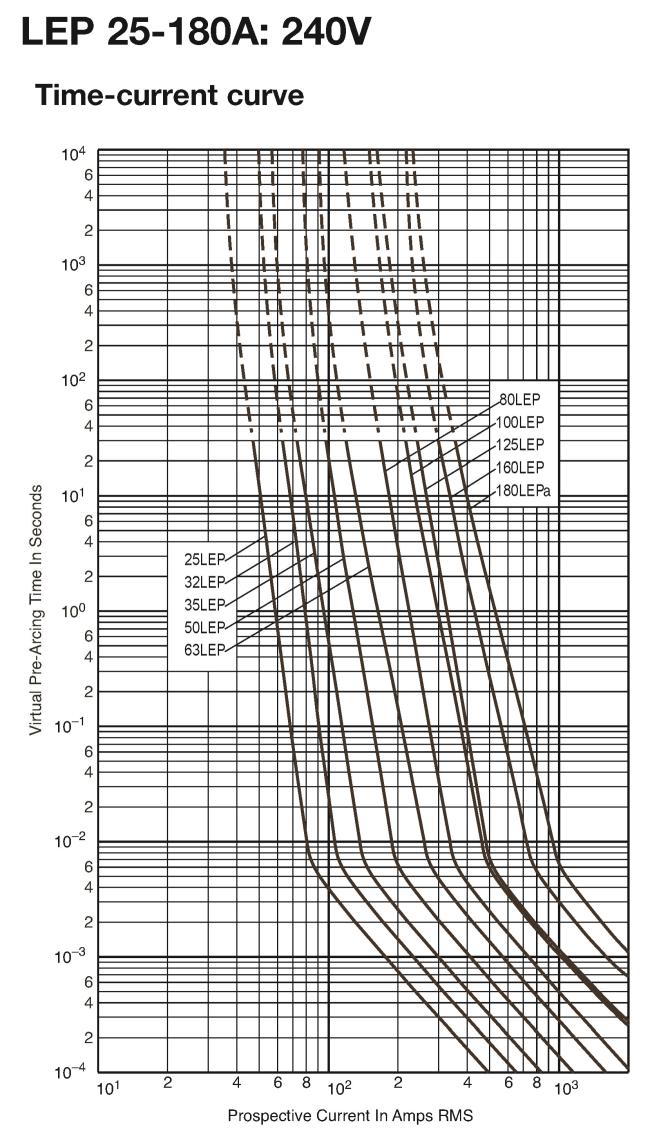

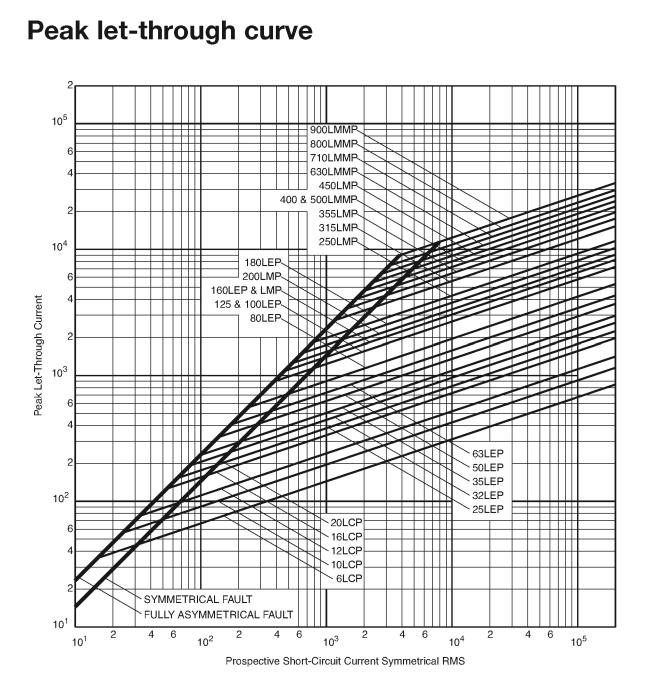

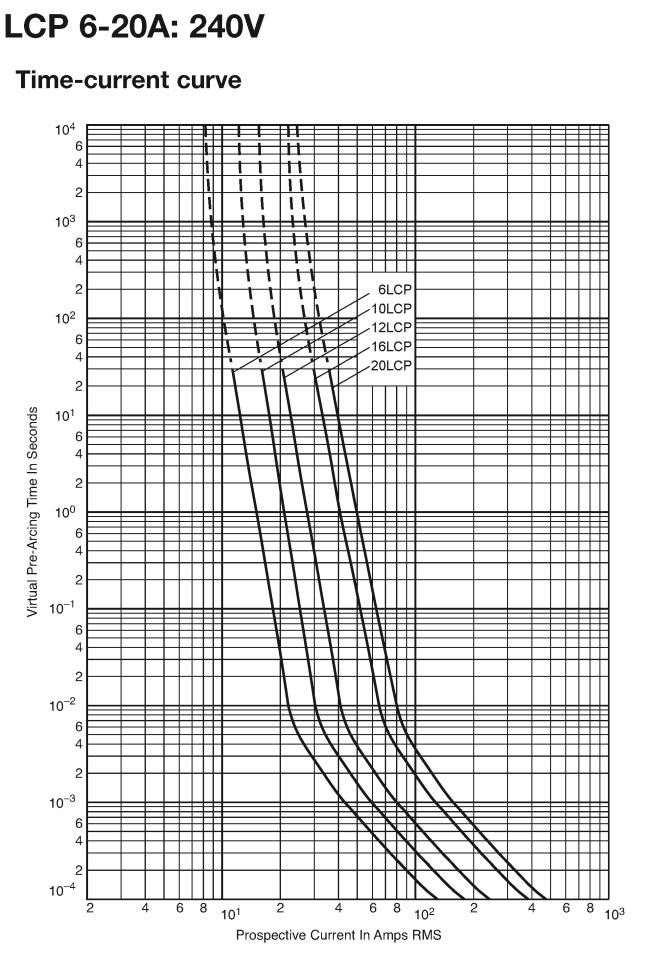

Current characteristic curve of the BS88 fuse
More other fuses produced by our factory:
The products list showed as below:
1. High-Voltage Auto Fuse (EV Series, HEV Series, HEN, BS88 Series, MEV Series)
2. Low-Voltage Auto Fuse (DNN Series, DFN Series,DKN Series)
3. Energy Storage Battery Fuse (MEV Series)
4. Power Fuse (HEV Series,BS88 Series,HH Series)
5. Solar PV Fuse(10*38,14*51,10*85,10*38 Holder,14*51 Holder,10*85Holder)
6. Charging Pile Fuse (HEV Series, EV Series, HDP Series)
7. 5G Telecom Fuse (HR70/HRP70 Series)
8. British Standard Fuse Series (BS1362/BS646)
9. High-Voltage Fuse (HD501/HDP501,HD601-619/HDP601-619 Series,10*38 Series)
10. Fuse blocks and holders
Certifications we can supply for the fuse products:
Our workshop and UL/TUV certified laboratory:
Our factory located in Shenzhen China:
Why choose Dissmann Fuse?
1. Dissmann is BYD’s Supplier.
2. Got UL,UR,ASTA,VDE,TUV,PSB,CCC,CQC,ROHS and Patents.
3. Own Complete IATF16949,ISO9001,ISO14001.
4. We’re UL and TUV authorized 3rd-party witness Lab..
5. Core material-Fuse Wire’s manufactured by us.
6. Fuses are Automated-production. 300K BS Fuses / day.
7. Full-automation equipment produced by us.
8. Senior Engineers Team come from famous company.
9. Complete automotive grade Fuse.
10. National High-Tech Enterprises.
