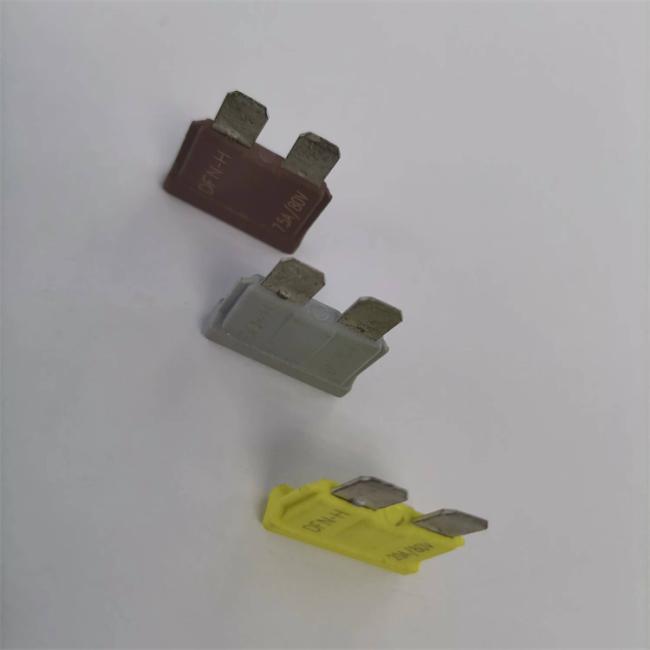

DFN-H series 5G Communication Module fuse
- Plug-in communication module fuse, size and performance conform to UL248
- Rated voltage: 80VDC
- Rated current: 1A~40A
- Breaking capacity: DC1000A
- Conform to EU and China RoHS directives
- The executive standard is UL248, UL certification number: E343461
- This series of products are automotive plug-in fuses with small size, low power consumption and high breaking capacity. It is applicable to the internal branch protection of automobile electrical appliances, UPS, communication power supply short circuit and backup protection. This product has good vibration resistance and flame retardancy.
1.Dimension of the 5G communication module fuse:
2.Materials of the 5G communication module fuse
|
Component name |
Material |
|
Contact the foot |
Copper alloy |
|
Noumenon |
PBT |
3.Performance criteria of the 5G communication module fuse
|
Test current item(A) |
Current |
Minimum time(s) |
Maximum time(s) |
| 110% | 1A-40A | 3600 | ∞ |
| 135% | 1A-40A | 0.500 | 300 |
| 200% | 1A-40A | 0.150 | 20 |
| 350% | 1A-40A | 0.040 | 0.500 |
| 600% | 1A-40A | 0.020 | 0.100 |

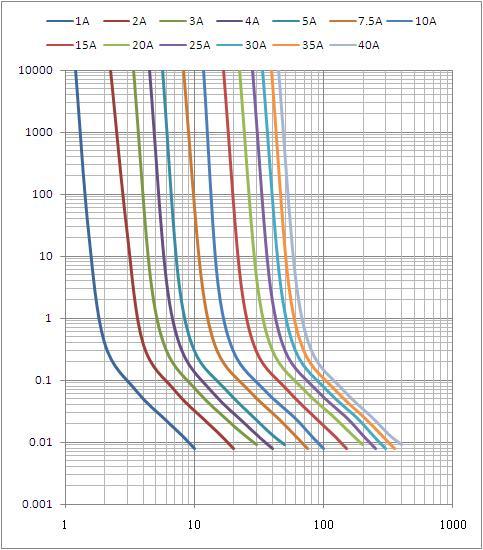

4.Current characteristic curve of the 5G communication module fuse
5.The DFN-H series DC80V 5G communication module fuse model
|
Model |
Product code |
Rated current A |
I²t (A²Sec) |
Voltage drop mV |
Pigment |
| DFN-H | DFN-H-1 | 1 | 0.4 | 174 | (Black) |
| DFN-H-2 | 2 | 1.5 | 140 | (Gray) | |
| DFN-H-3 | 3 | 6.3 | 137 | (Violet) | |
| DFN-H-4 | 4 | 13 | 135 | (Pink) | |
| DFN-H-5 | 5 | 25 | 125 | (Tan) | |
| DFN-H-7.5 | 7.5 | 56 | 115 | (Brown) | |
| DFN-H-10 | 10 | 110 | 110 | (Red) | |
| DFN-H-15 | 15 | 295 | 102 | (Blue) | |
| DFN-H-20 | 20 | 480 | 96 | (Yellow) | |
| DFN-H-25 | 25 | 1000 | 90 | (Clear) | |
| DFN-H-30 | 30 | 1460 | 86 | (Green) | |
| DFN-H-35 | 35 | 2205 | 88 | (Dark green) | |
| DFN-H-40 | 40 | 3200 | 95 | (Orange) |
We can supply you different size of blade type fuses:
Large Size Automotive Blade Fuse(rated voltage:DC80V;rated current 20A-60A)
Medium Size Automotive Blade Fuse(rated voltage:DC32V/58V/80V;rated current 1A-40A)
MINI Size Automotive Blade Fuse(rated voltage:DC32V/58V/80V;rated current 2A-30A)
