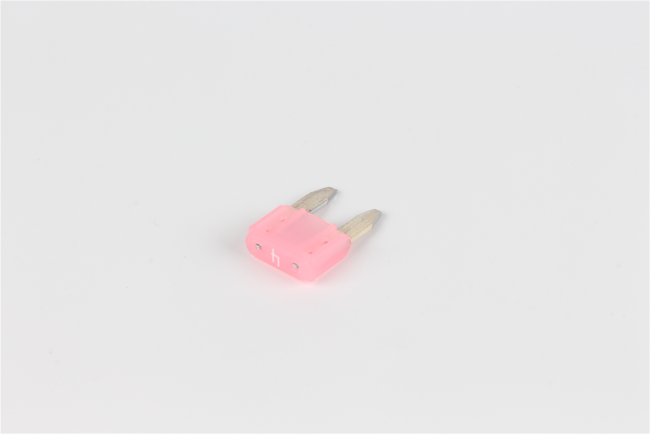

Mini Fast Blow Fuse , DC32V 4Amp Automotive Blade Fuse Small Plug In
Dissmann®Mini Fast Blow Fuse DC32V 4Amp Automotive Blade Fuse Small Plug In Fuse Made in China
DKN-A series Automotive Blade Fuses
Rated Voltage:DC32V; Rated Current:4A

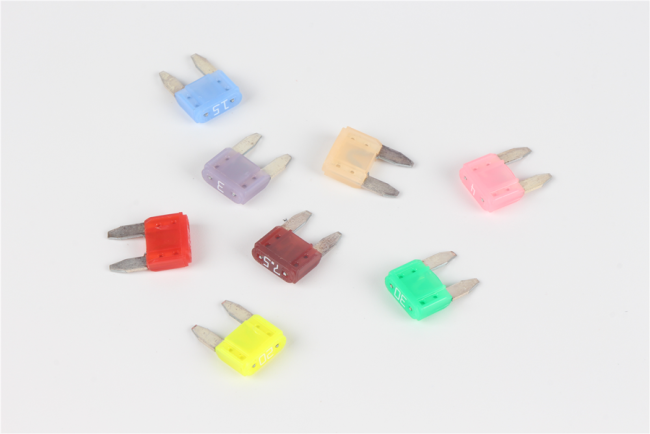

Product basic information of the Mini Plug in fuse
- Plug in type fast-acting fuse,
- the size and performance comply with UL248
- Rated voltage: DC32V
- Rated current: 2A~30A;
- Protection category: aR;
- Breaking capacity: DC1000A
- Conform to EU and China RoHS directives
- Meet the requirements of UL248-20, ISO8820
- Certifications: UL
- Product type showed as below:
-
Model
Product code
Rated current
A
I²t
(A²Sec)
Voltage drop
mV
Pigment
DKN-A DKN-A-2 2 2.8 170 (Gray) DKN-A-3 3 9.3 152 (Violet) DKN-A-4 4 17 120 (Pink) DKN-A-5 5 24 128 (Tan) DKN-A-7.5 7.5 66 135 (Brown) DKN-A-10 10 92 108 (Red) DKN-A-15 15 270 98 (Blue) DKN-A-20 20 380 96 (Yellow) DKN-A-25 25 620 85 (Clear) DKN-A-30 30 1120 86 (Green)
Dimension of the Mini Fast blow plug in fuse:
32VDC mini automotive blade fuse

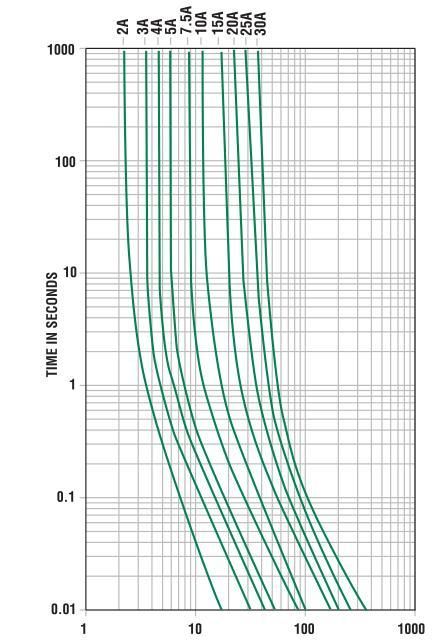

Current Characteristic curve of the mini blade type fuse:
Performance criteria:
|
Test current item(A) |
Current |
Minimum time(s) |
Maximum time(s) |
| 110% | 2A-30A | 360000 | ∞ |
| 135% | 2A-30A | 0.75 | 600 |
| 200% | 2A-30A | 0.15 | 5.0 |
| 350% | 2A-30A | 0.08 | 0.5 |
| 600% | 2A-30A | 0.03 | 0.1 |
More other fuses produced by our factory:
The products list showed as below:
1. High-Voltage Auto Fuse (EV Series, HEV Series, HEN, BS88 Series, MEV Series)
2. Low-Voltage Auto Fuse (DNN Series, DFN Series,DKN Series)
3. Energy Storage Battery Fuse (MEV Series)
4. Power Fuse (HEV Series,BS88 Series,HH Series)
5. Solar PV Fuse(10*38,14*51,10*85,10*38 Holder,14*51 Holder,10*85Holder)
6. Charging Pile Fuse (HEV Series, EV Series, HDP Series)
7. 5G Telecom Fuse (HR70/HRP70 Series)
8. British Standard Fuse Series (BS1362/BS646)
9. High-Voltage Fuse (HD501/HDP501,HD601-619/HDP601-619 Series,10*38 Series)
10. Fuse blocks and holders
Certifications we can supply for the fuse products:
We invested 2 Million USD for Fuses's design and development, and we get the certifications of fuse include UL, CSA, TUV, VDE, ASTA, PSB, CE, CCC, CQC, IATF16949, ISO9001, ROHS, REACH, SGS etc.
Our workshop and UL/TUV certified laboratory:
Our factory located in Shenzhen China:
Why choose Dissmann Fuse?
1. Dissmann is BYD’s Supplier.
2. Got UL,UR,ASTA,VDE,TUV,PSB,CCC,CQC,ROHS and Patents.
3. Own Complete IATF16949,ISO9001,ISO14001.
4. We’re UL and TUV authorized 3rd-party witness Lab..
5. Core material-Fuse Wire’s manufactured by us.
6. Fuses are Automated-production. 300K BS Fuses / day.
7. Full-automation equipment produced by us.
8. Senior Engineers Team come from famous company.
9. Complete automotive grade Fuse.
10. National High-Tech Enterprises.
