750VDC Energy Storage Dissmann 300Amp DC Fuse Fiber Tube Material

Price Negotiable

Price: Negotiable

MOQ: 100pcs

Delivery Time: 5-8 days

Brand: Dissmann

Product Description

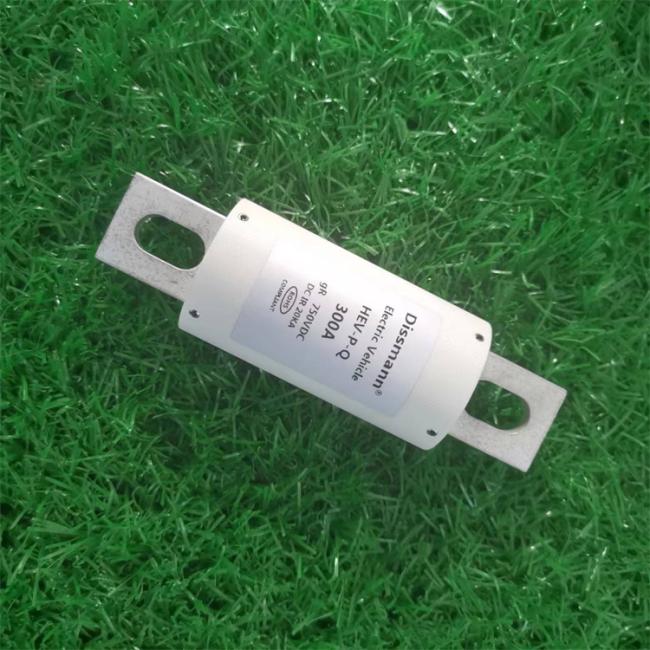

Dissmann^®Automotive Fuse 750VDC Energy Storage Fuse Dissmann 300 Amp DC Fuse Made in China

DC750V 300Amp HEV fuse for electric vehicle

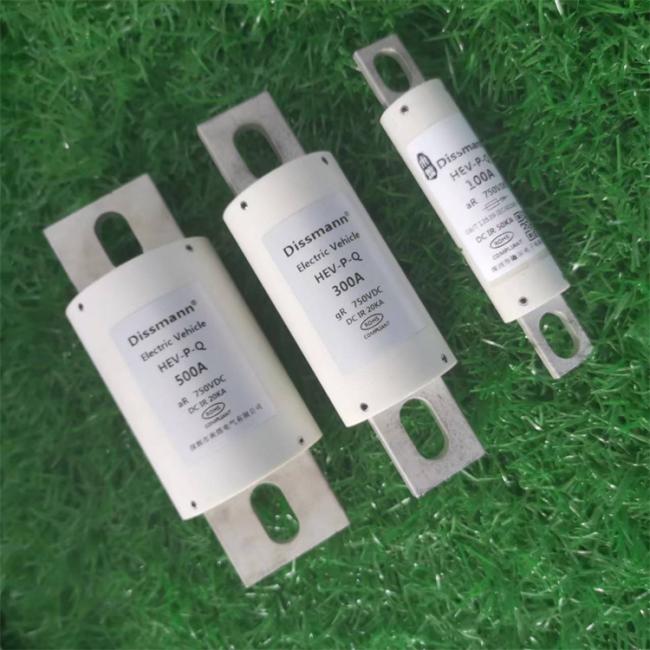

DC750V HEV FUSES IN DIFFERENT AMP 500A/300/100A

Basic information of the HEV fuse:

Type:automobile fuse (bolt type installation)
Dimensions and performance conforming to UL248
Rated voltage: DC750V,
Rated current: 5A~800A,
Breaking capacity: DC50KA (time constant ≤15ms)
Conform to EU and China RoHS directives
The executive standard is UL248-20,ISO8820,JASO-D622, TUV certification number: J 50458819 0001
This series of products are automobile fuses, which have the characteristics of small size, low power consumption and high breaking capacity. It is applicable to electric vehicles, energy storage system and charging modules.

Physics drawing of the dimension:

Size code	A±2	B±1.5	C±1	D±1.5	E±1.5	F±1	G±0.5	H±0.2	J±1
HT1	73.5	14.3	48	60.5	63.5	6.5	10.3	1.6	8
HT2	110	22	69	84	95.5	9	15	3.3	14.75
HT3	129	36.5	72	88	109	10.5	25	6	20.7
HT4	129	50	72	88.6	109	10.5	38	6	20.7
HT5	180	63	72	106	145	13.5	50	10	33

Ordinary produc type you can choose from our factory:

Model	Rated Current A	I²t(A²s)		Power dissipation W	Size code	Install
Model	Rated Current A	Pre-arc	Total	Power dissipation W	Size code	Install
HEV-P-Q-5	5A	1.6	10	1.5	HT1	Mounting Bolt M6 recommended torque 4N·m
HEV-P-Q-10	10A	3.5	19	3.8
HEV-P-Q-15	15A	9.5	73	5.4
HEV-P-Q-20	20A	25.5	176	6.0
HEV-P-Q-25	25A	42	330	7.0
HEV-P-Q-30	30A	55	420	9.0
HEV-P-Q-35	35A	33	160	11.0	HT2	Mounting Bolt M8 recommended torque 11N·m
HEV-P-Q-40	40A	75	315	12.0
HEV-P-Q-45	45A	95	430	12.0
HEV-P-Q-50	50A	135	590	12.5
HEV-P-Q-60	60A	205	940	14.8
HEV-P-Q-70	70A	300	1980	17.5
HEV-P-Q-80	80A	350	2350	20.5
HEV-P-Q-90	90A	410	2630	24.0
HEV-P-Q-100	100A	530	3450	26.5
HEV-P-Q-125	125A	1700	7200	27	HT3	Mounting Bolt M10 recommended torque 20N·m
HEV-P-Q-150	150A	2750	11000	34
HEV-P-Q-175	175A	4100	16000	35
HEV-P-Q-200	200A	5400	21000	42
HEV-P-Q-225	225A	7500	30000	45
HEV-P-Q-250	250A	9700	41000	47
HEV-P-Q-275	275A	12000	58000	51
HEV-P-Q-M300	300A	16500	70000	56	HT4
HEV-P-Q-M325	325A	20000	82000	61
HEV-P-Q-M350	350A	23000	94000	63
HEV-P-Q-M400	400A	30000	123000	76
HEV-P-Q-300	300A	16500	70000	56
HEV-P-Q-325	325A	20000	82000	61
HEV-P-Q-350	350A	23000	94000	63
HEV-P-Q-400	400A	30000	123000	76
HEV-P-Q-450	450A	35000	135000	95
HEV-P-Q-500	500A	44000	165000	108
HEV-P-Q-600	600A	48000	210000	115	HT5	Mounting Bolt M12 recommended torque 28N·m
HEV-P-Q-700	700A	53000	298000	125
HEV-P-Q-800	800A	75000	445000	140

The materials of the fuse :

Component name	Material
Contact the foot	copper alloy
Noumenon	Fiber tube

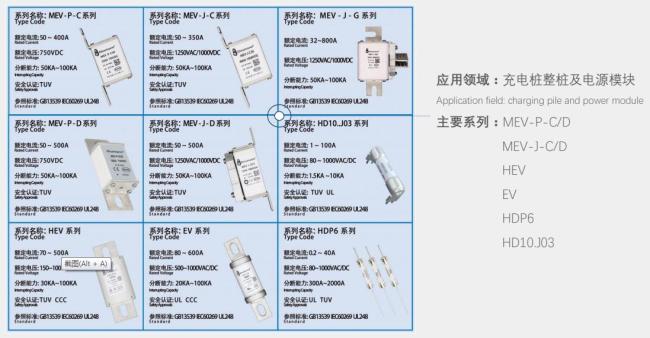

More automotive fuse for the electric vehicle:

More other fuses and fuse holder you can choose from our factory:

The products list showed as below:

1. High-Voltage Auto Fuse (EV Series, HEV Series, HEN, BS88 Series, MEV Series)
2. Low-Voltage Auto Fuse (DNN Series, DFN Series,DKN Series)
3. Energy Storage Battery Fuse (MEV Series)
4. Power Fuse (HEV Series,BS88 Series,HH Series)
5. Solar PV Fuse(10*38,14*51,10*85,10*38 Holder,14*51 Holder,10*85Holder)
6. Charging Pile Fuse (HEV Series, EV Series, HDP Series)
7. 5G Telecom Fuse (HR70/HRP70 Series)
8. British Standard Fuse Series (BS1362/BS646)
9. High-Voltage Fuse (HD501/HDP501,HD601-619/HDP601-619 Series,10*38 Series)
10. Fuse blocks and holders

Certifications of the fuse products:

Certifications we've got:
UL, TUV, VDE, ASTA, PSB, CCC, CQC, IATF16949, ISO9001-2015, ROHS and Reach certifications. And we have UL&TUV authorized third-party witness Lab., Enable us to get UL&TUV very fast (within 15days).
