Ev Charging Pile IEC Standard EV Fuses , UL248 Certified Ceramic Tube Fuses
Price:
Negotiable
MOQ:
100pcs
Delivery Time:
5-8days
Brand:
Dissmann
Product Description
EV charger fast acting fuse manufacture in China
Specification of EV fuse
| Material |
Body :Ceramic Caps :Copper alloy tin plating Terminal : Copper alloy tin plating |
| Characteristic | Use in electric vehicles charging protection boards |
| Interrupting Rating | AC100KA at 1000VDC |
| Ampere Raing | 10A-800A |
| Voltage ( DC) | 1000VDC |
| Voltage(AC) | 1000VAC |
| Permissible Conditions of Use | -55℃～120℃ |
| Green Mark | RoHS |
| Safety Approvals | UL |
Product characteristic of 300 amp EV fuse
| Model | Rated current |
100%--1h Voltage drop mV |
Size code | Installation |
| EV-J-Q-300 | 300 | 117 | VJ2 |
Install Bolt M10, Recommend Torque: 20N.m |

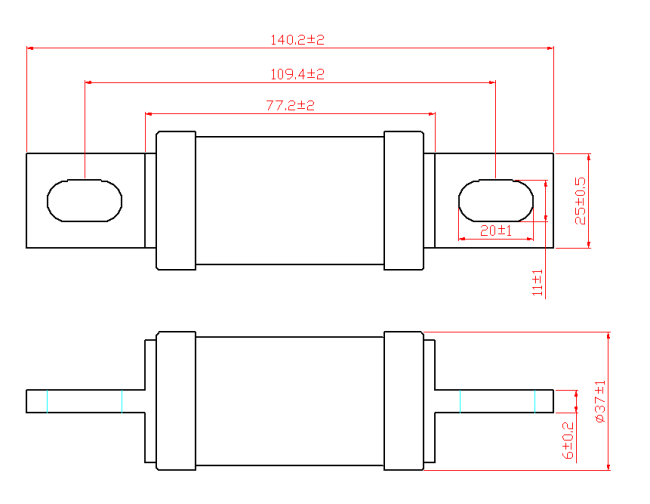

Dimension of 300 amp EV fuse
Size code of EV -J-Q fuse,Choose the code according to the rated current.
| Model | Size code | A±2 | B±1.5 | C±1 | D±1.5 | F±1 | G±0.5 | H±0.2 | J±1 |
| EV-J-Q | VJ1 | 116 | 30.4 | 75.5 | 97 | 9 | 25 | 4 | 13 |
| VJ2 | 139.75 | 37.3 | 75.75 | 108.75 | 11 | 25 | 6 | 15 | |
| VJ3-1 | 148 | 53.5 | 90.1 | 117.9 | 12.5 | 40 | 8 | 20 | |
| VJ3-2 | 173 | 53.5 | 114.7 | 143 | 12.5 | 40 | 6 | 20 |
Product system code
Dissmann®Factaory Display
Dissmann® Fuse workshop display
FAQ
Question:Does your EV series products meet the UL standard?
Answer:Our EV series products have obtained UL certification, which meets UL248 standards.
