Dissmann^®DC500V HEV Fuse and Fuse Holder, High Breaking Capacity Fuse TUV Certified 700Amp

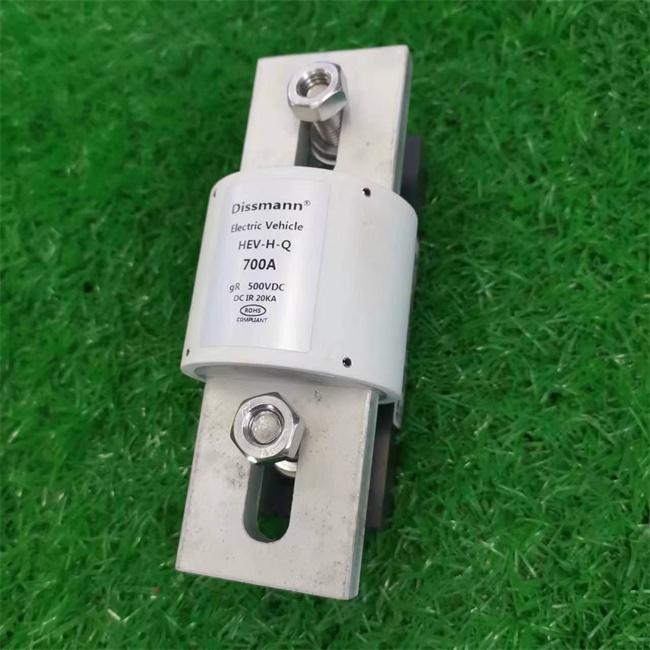

DC500V 700Amp HEV fuse for electric vehicle

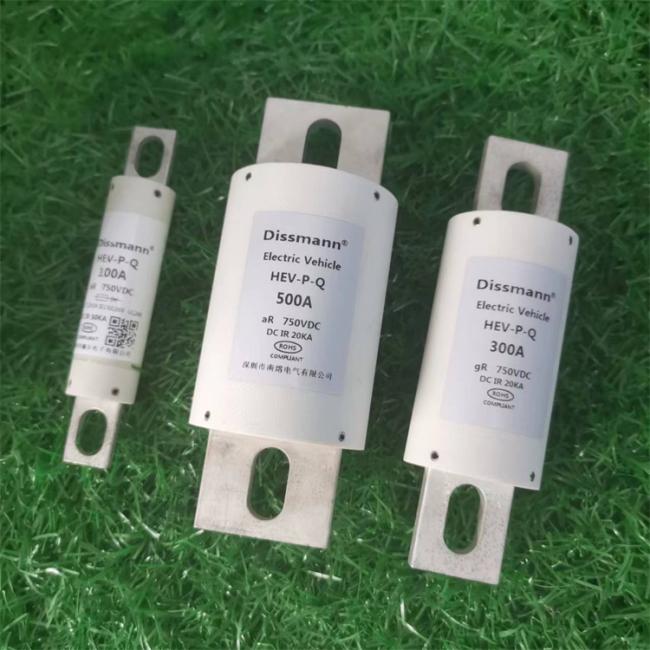

HEV FUSES IN DIFFERENT AMP 500A/300/100A

Basic information of the AC/DC500V HEV fuse:

Type:automobile fuse (bolt type installation)
Dimensions and performance conforming to UL248
Rated voltage: AC/DC500V,
Rated current: 5A~800A,
Breaking capacity: AC100KA, DC50KA (time constant ≤15ms)
Conform to EU and China RoHS directives
The executive standard is UL248-20,ISO8820,JASO-D622, TUV certification number: J 50458819 0001
This series of products are automobile fuses, which have the characteristics of small size, low power consumption and high breaking capacity. It is applicable to electric vehicles, energy storage system and charging modules.

Physics drawing of the dimension of the HEV-H-Q series fuse:

Size Code	A±2	B±1.5	C±1	D±1.5	E±1.5	F±1	G±0.5	H±0.2	J±1
HZ1	81	22	40	55	66.5	9	15	3.3	14.75
HZ2	92.2	25	53	68	77	9	18	3.2	13.5
HZ3	92.2	33	53	68	75	9	22	5	12.5
HZ4	109	38	53	69	89.5	10.5	25	6	20.7
HZ5	110	50	53	70.5	90	10.5	38	6	20.7
HZ6	161	63	53	87	126	13.5	50	10	34
HZ7	177	76	81.5	113.5	139	16	60	10	28.4

Ordinary produc type you can choose from our factory:

Model	Rated Current A	I²t(A²s)		Power dissipation W	Size code	Install
Model	Rated Current A	Pre-arc	Total	Power dissipation W	Size code	Install
HEV-H-Q-35	35A	33	145	8.5	HZ1	Mounting Bolt M8 recommended torque 11N·m
HEV-H-Q-40	40A	74	315	8
HEV-H-Q-45	45A	100	430	8
HEV-H-Q-50	50A	130	650	8.5
HEV-H-Q-60	60A	200	880	10
HEV-H-Q-70	70A	210	900	10.5	HZ2
HEV-H-Q-80	80A	300	1360	12.5
HEV-H-Q-90	90A	350	1500	15.5
HEV-H-Q-100	100A	460	1950	17.5
HEV-H-Q-125	125A	750	3430	26	HZ3
HEV-H-Q-150	150A	1000	4450	31
HEV-H-Q-175	175A	1400	6100	36
HEV-H-Q-200	200A	1800	8300	41
HEV-H-Q-225	225A	4600	23000	39	HZ4	Mounting Bolt M10 recommended torque 20N·m
HEV-H-Q-250	250A	6250	32100	41
HEV-H-Q-275	275A	7800	40000	46
HEV-H-Q-300	300A	9600	49000	52
HEV-H-Q-325	325A	13500	63000	54
HEV-H-Q-350	350A	14000	72000	59
HEV-H-Q-400	400A	18500	95500	66
HEV-H-Q-450	450A	24000	125000	75	HZ5
HEV-H-Q-500	500A	28500	147000	84
HEV-H-Q-600	600A	40500	203000	108
HEV-H-Q-700	700A	54000	295000	122	HZ6	Mounting bolt M12 recommended torque 28N·m
HEV-H-Q-800	800A	75000	406000	130	HZ6
HEV-H-Q-1000	1000A	90000	430000	146	HZ7
HEV-H-Q-1200	1200A	120000	590000	180	HZ7

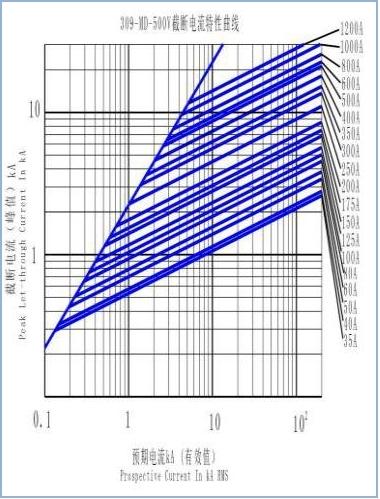

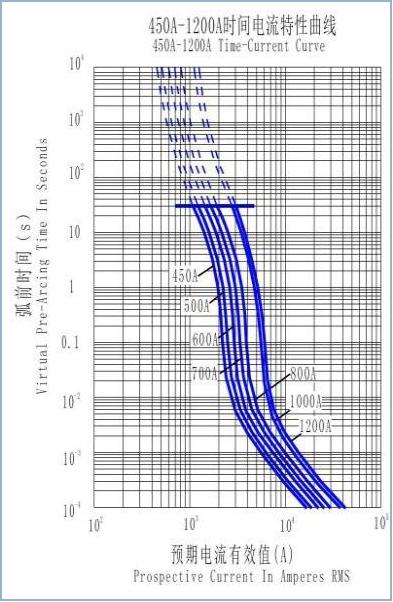

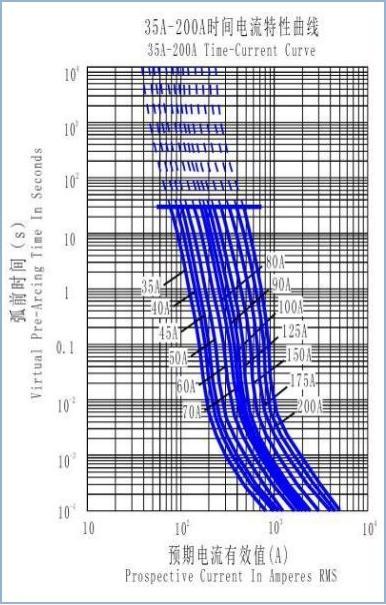

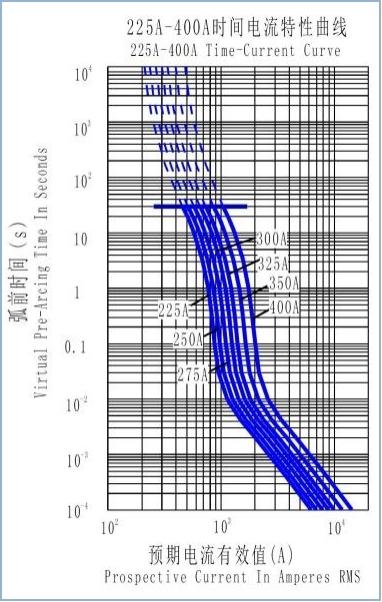

Current Characteristic Curve of the HEV-H-Q series fuses:

More automotive fuses for the electric vehicle:

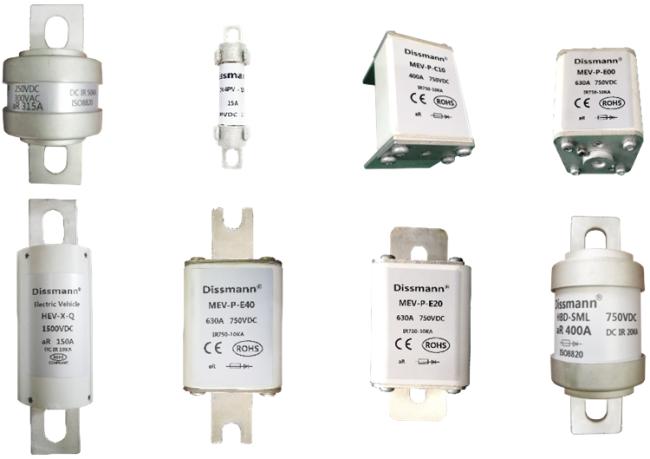

More other fuses and fuse holder you can choose from our factory:

The products list showed as below:

1. High-Voltage Auto Fuse (EV Series, HEV Series, HEN, BS88 Series, MEV Series)
2. Low-Voltage Auto Fuse (DNN Series, DFN Series,DKN Series)
3. Energy Storage Battery Fuse (MEV Series)
4. Power Fuse (HEV Series,BS88 Series,HH Series)
5. Solar PV Fuse(10*38,14*51,10*85,10*38 Holder,14*51 Holder,10*85Holder)
6. Charging Pile Fuse (HEV Series, EV Series, HDP Series)
7. 5G Telecom Fuse (HR70/HRP70 Series)
8. British Standard Fuse Series (BS1362/BS646)
9. High-Voltage Fuse (HD501/HDP501,HD601-619/HDP601-619 Series,10*38 Series)
10. Fuse blocks and holders

Certifications of the fuse products:

Certifications we've got:
UL, TUV, VDE, ASTA, PSB, CCC, CQC, IATF16949, ISO9001-2015, ROHS and Reach certifications. And we have UL&TUV authorized third-party witness Lab., Enable us to get UL&TUV very fast (within 15days).
