PBT Material Fast Acting Automotive Blade Fuses , 32VDC Car Blade Fuses
China 32VDC mini car blade fuse equal to littelfuse
Product basic information of mini car blade fuse
This mini car blade type fuse available in ratings of 2A-30A,rated voltage of 32VDC,breaking capacity of DC1000A at DC32V.The rated voltage of this product is 32VDC. If the actual working voltage of this product is lower than or equal to 32VDC, it will cause serious adverse consequences if it is used in an environment with a working voltage higher than the rated 32VDC voltage of this product, and the company shall not assume any responsibility.

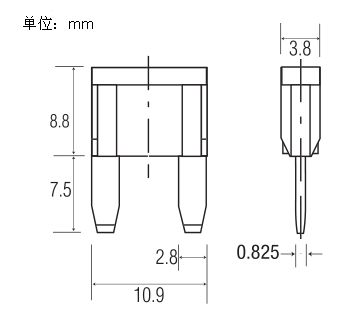

Dimension of the mini car blade fuse
Performance criteria
| Test current item | Minimum time | Maximum time |
| (A) | (s) | (s) |
| 110% | 360000 | ∞ |
| 135% | 0.75 | 600 |
| 200% | 0.15 | 5 |
| 350% | 0.04 | 0.5 |
| 600% | 0.02 | 0.1 |
Product type
| Model | Product code | Rated current | I²t | Voltage drop | Pigment |
| (A²Sec) | |||||
| DKN-A | DKN-A-2 | 2 | 2.8 | 170 | (Gray) |
| DKN-A-3 | 3 | 9.3 | 152 | (Violet) | |
| DKN-A-4 | 4 | 17 | 120 | (Pink) | |
| DKN-A-5 | 5 | 24 | 128 | (Tan) | |
| DKN-A-7.5 | 7.5 | 66 | 135 | (Brown) | |
| DKN-A-10 | 10 | 92 | 108 | (Red) | |
| DKN-A-15 | 15 | 270 | 98 | (Blue) | |
| DKN-A-20 | 20 | 380 | 96 | (Yellow) | |
| DKN-A-25 | 25 | 620 | 85 | (Clear) | |
| DKN-A-30 | 30 | 1120 | 86 | (Green) |
Current characteristic curve
FAQ
Question:Do your mini car balde fuses have UL certification?
Answer:Yes,this 32VDC mini car blade fuse approve by UL248 standard.
