Low Voltage Automotive Blade Fuse For Cars Trucks UL Certified

Price Negotiable
Price: Negotiable
MOQ: 100pcs
Delivery Time: 5-8 days
Brand: Dissmann
Product Description

Low Voltage Automotive Blade Fuse for Cars Trucks and Automotives UL Certified fuse Made in China

Low Voltage Automotive Blade Fuse for Cars Trucks and Automotives UL Certified fuse Made in China

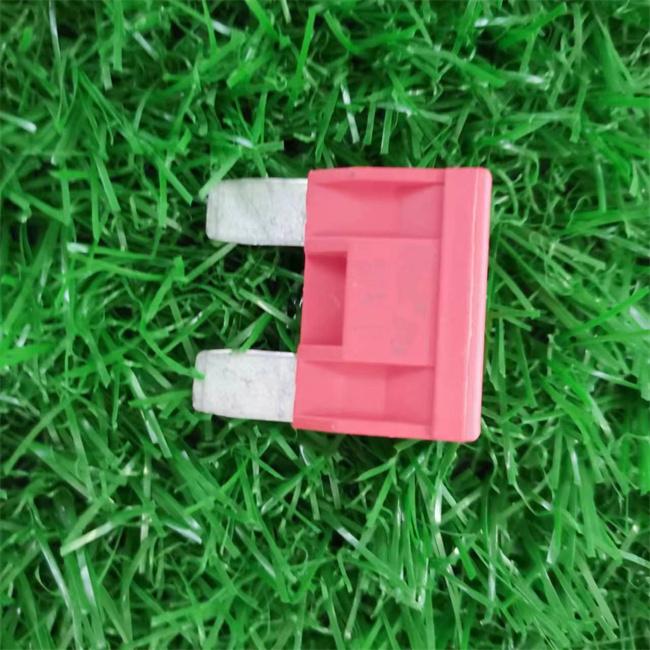

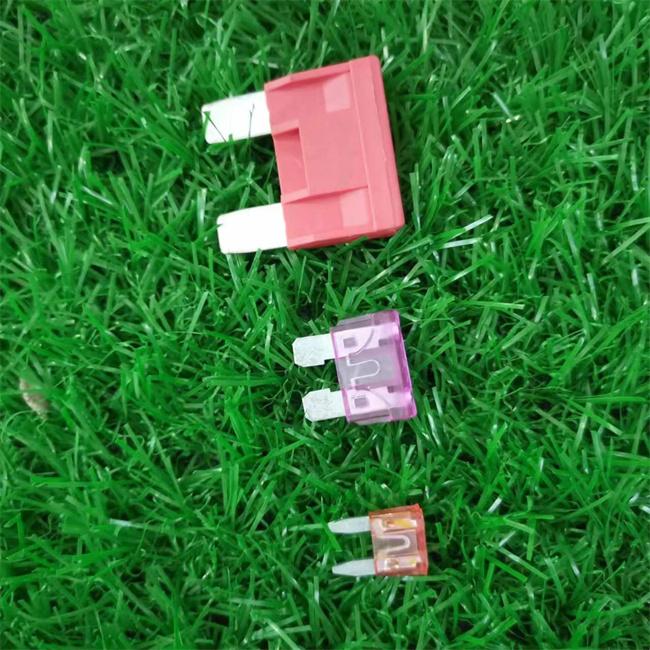

Large size automotive blade fuse 80VDC 50Amp

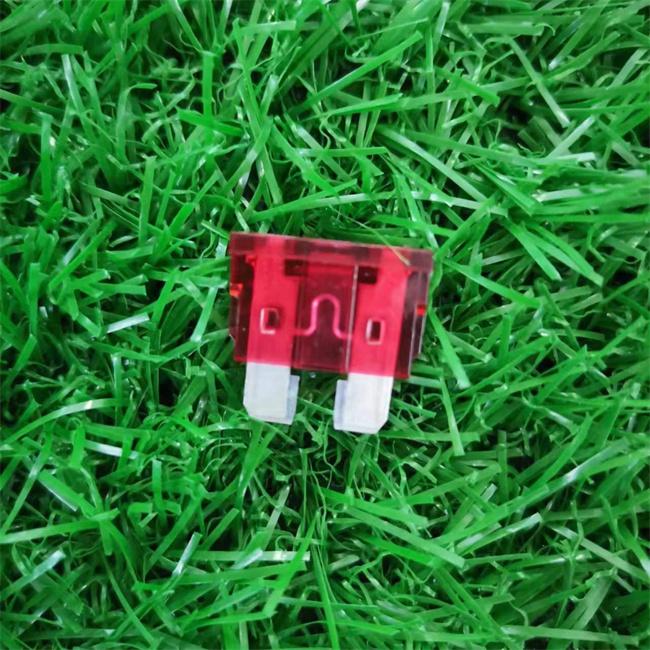

Medium size automotive blade fuse 32VDC 3Amp

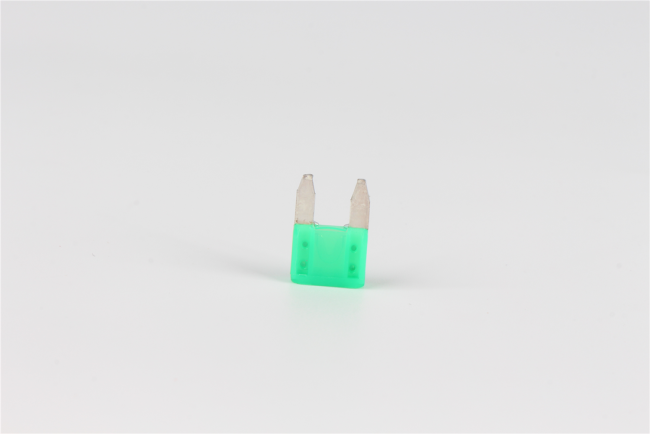

Small size automotive blade fuse 32VDC 4Amp

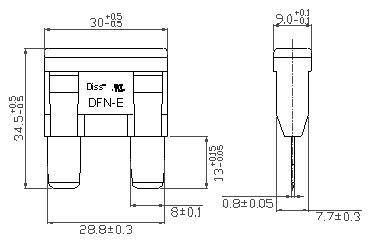

Dimensions of the Automotive blade fuse:

1.Large size automotive blade fuse 80VDC

Low Voltage Automotive Blade Fuse for Cars Trucks and Automotives UL Certified fuse Made in China    Low Voltage Automotive Blade Fuse for Cars Trucks and Automotives UL Certified fuse Made in China



Product Type:



Model

Product code

Rated current

A

I²t

(A²Sec)

Voltage drop

 mV

Pigment

DFN-E DFN-E-20 20 3500 100 (Yellow)
DFN-E-30 30 8200 97 (Green)
DFN-E-40 40 14200 93 (Orange)
DFN-E-50 50 22500 90 (red)
DFN-E-60 60 23000 95 (Blue)


2.Medium size automotive blade fuse 32VDC

Low Voltage Automotive Blade Fuse for Cars Trucks and Automotives UL Certified fuse Made in ChinaLow Voltage Automotive Blade Fuse for Cars Trucks and Automotives UL Certified fuse Made in China



Product Type:

Model

Product code

Rated current

A

I²t

(A²Sec)

Voltage drop

 mV

Pigment

DFN-A DFN-A-1 1 0.4 174 (Black)
DFN-A-2 2 1.5 140 (Gray)
DFN-A-3 3 6.3 137 (Violet)
DFN-A-4 4 13 135 (Pink)
DFN-A-5 5 25 125 (Tan)
DFN-A-7.5 7.5 56 115 (Brown)
DFN-A-10 10 110 110 (Red)
DFN-A-15 15 295 102 (Blue)
DFN-A-20 20 480 96 (Yellow)
DFN-A-25 25 1000 90 (Clear)
DFN-A-30 30 1460 86 (Green)
DFN-A-35 35 2205 88 (Dark green)
DFN-A-40 40 3200 95 (Orange)


3.Small size automotive blade fuse 32VDC

Low Voltage Automotive Blade Fuse for Cars Trucks and Automotives UL Certified fuse Made in ChinaLow Voltage Automotive Blade Fuse for Cars Trucks and Automotives UL Certified fuse Made in China



Product Type:

Model

Product code

Rated current

A

I²t

(A²Sec)

Voltage drop

mV

Pigment

DKN-A DKN-A-2 2 2.8 170 (Gray)
DKN-A-3 3 9.3 152 (Violet)
DKN-A-4 4 17 120 (Pink)
DKN-A-5 5 24 128 (Tan)
DKN-A-7.5 7.5 66 135 (Brown)
DKN-A-10 10 92 108 (Red)
DKN-A-15 15 270 98 (Blue)
DKN-A-20 20 380 96 (Yellow)
DKN-A-25 25 620 85 (Clear)
DKN-A-30 30 1120 86 (Green)
