DC50Ka High Voltage Automotive Fuse , High Breaking Capacity Fuse UL Certified
Price:
Negotiable
MOQ:
100pcs
Delivery Time:
5-8 days
Brand:
Dissmann
Product Description
High Voltage Automotive Fuse DC50Ka High Breaking Capacity Fuse UL Certified Fuse made in China
Square high-voltage automobile fuse

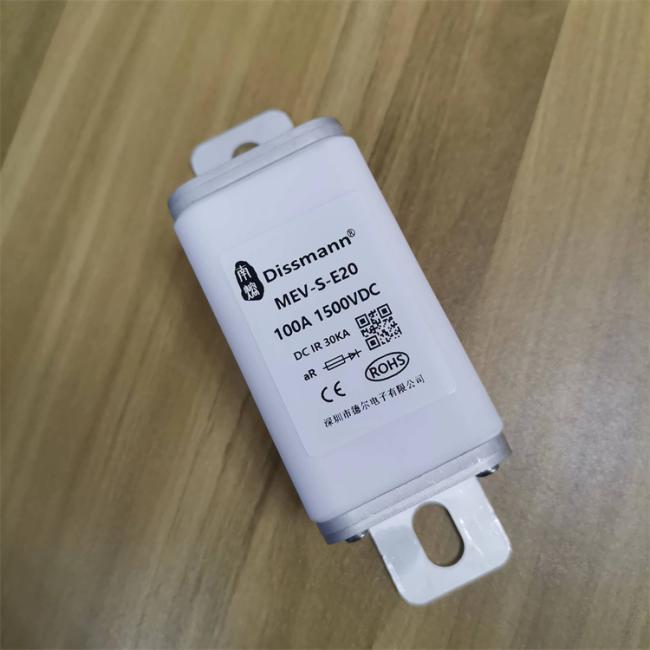

1500VDC 100A 30KA MEV-S-E20 automotive fuse
The Dissmann MEV series fuses are ceramic tube fuse. The rated voltage of the ceramic tube fuse should be consistent with the voltage of the power grid, and the current limiting ceramic tube fuse should not be used at reduced voltage generally.

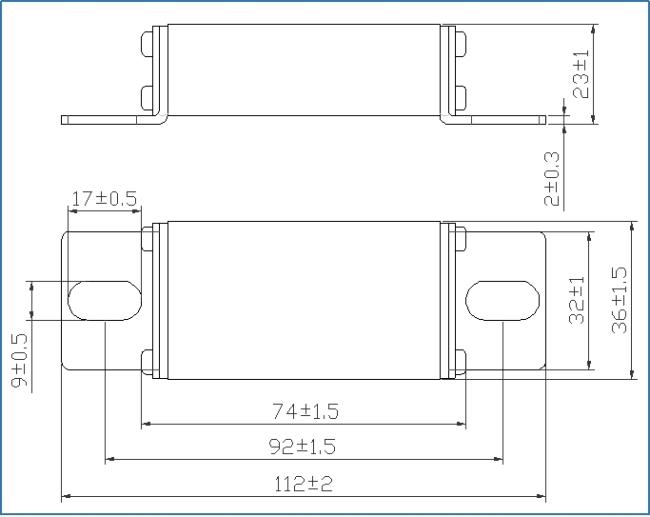

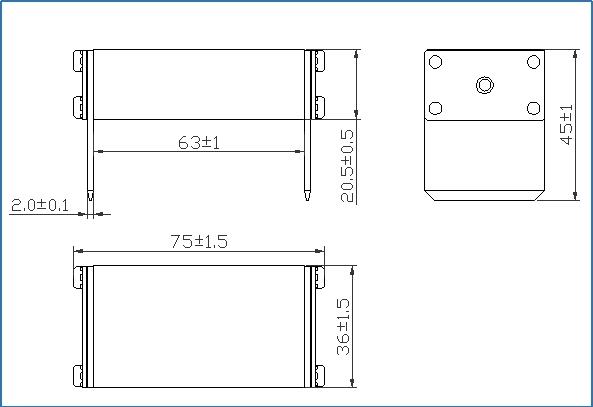

1.Dimensions of the MEV-J-Cxx series fuse
AC/DC 1000V (100A-315A)MEV-J-C10 series fuse

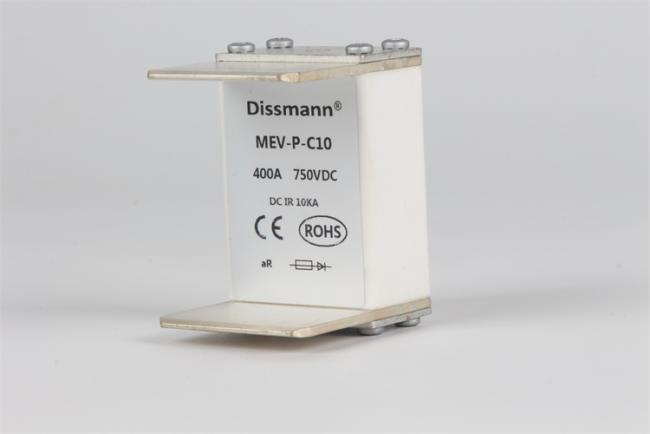

Similar appearance MEV fuse
AC/DC 1000V (100A-315A)MEV-J-C20 series fuse

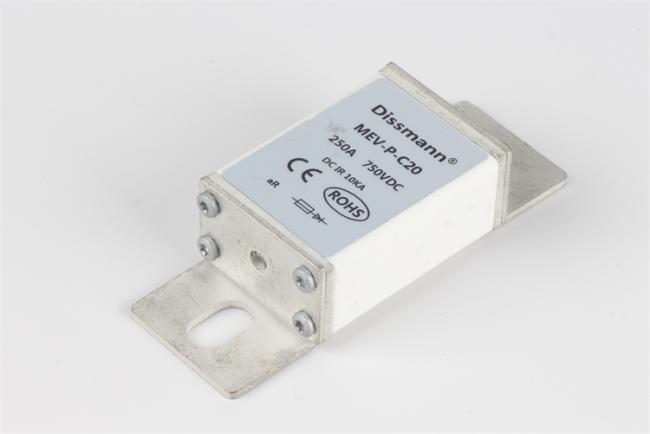

Similar appearance MEV fuse
2.Product types:
|
Model |
Product code |
Rated current A |
I²t(A²Sec) |
Power consumption W |
|
| Pre-arc | Fusing | ||||
|
MEV-J-C10/ MEV-J-C20 |
MEV-J-C10/C20-100 | 100 | 695 | 4650 | 24 |
| MEV-J-C10/C20-125 | 125 | 1200 | 8500 | 28 | |
| MEV-J-C10/C20-160 | 160 | 2300 | 16000 | 32 | |
| MEV-J-C10/C20-200 | 200 | 4200 | 28000 | 37 | |
| MEV-J-C10/C20-250 | 250 | 7750 | 51500 | 42 | |
| MEV-J-C10/C20-300 | 300 | 10900 | 73000 | 50 | |
| MEV-J-C10/C20-315 | 315 | 10900 | 73000 | 50 | |
3.Application:
