DC1000V Dissmann HEV Fuse High Breaking Capacity Fuse Equal to SINOFUSE RS309-MM

Price Negotiable

Price: Negotiable

MOQ: 100pcs

Delivery Time: 5-8 days

Brand: Dissmann

Product Description

Dissmann^®DC1000V Dissmann HEV Fuse High Breaking Capacity Fuse Equal to SINOFUSE RS309-MM Series Fuse

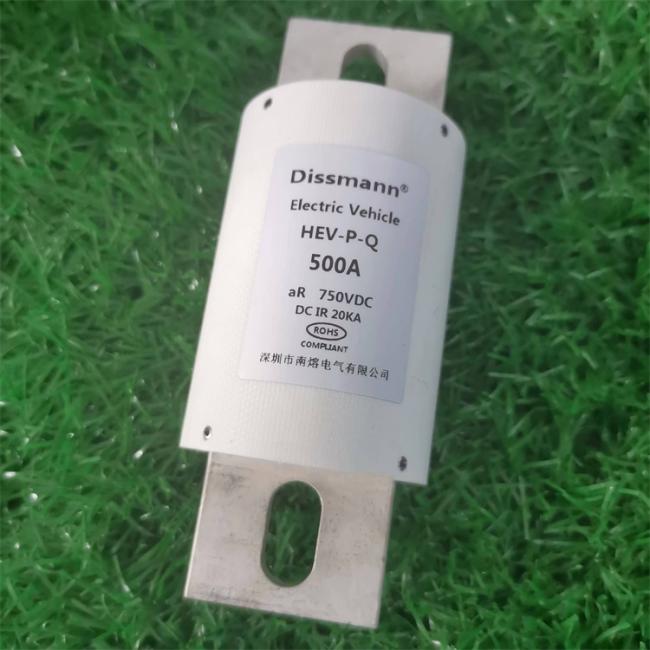

HEV FUSES IN DIFFERENT AMP 500A/300/100A

Basic information of the AC/DC1000V HEV fuse:

Type:automobile fuse (bolt type installation)
Dimensions and performance conforming to UL248
Rated voltage: AC/DC1000V,
Rated current: 5A~800A,
Breaking capacity: AC100KA, DC30KA (time constant ≤15ms)
Conform to EU and China RoHS directives
The executive standard is UL248-20,ISO8820,JASO-D622

Physics drawing of the dimension of the HEV-J-Q series fuse:

Size code	A±2	B±1.5	C±1	D±1.5	E±1.5	F±1	G±0.5	H±0.2	J±1
HF1	124	25	78	100	109	9	18	4	13.5
HF2	117	33	78	93	100	9	22	5	12.5
HF3	139.5	38	83.5	99.5	120	10.5	25	6	20.7
HF4	146.5	50	89.5	106	126.5	10.5	38	6	20.7
HF5	197.5	63	89.5	123.5	162.5	13.5	50	10	33

Ordinary produc type you can choose from our factory,and the fuses are equal to SINOFUSE RS309-MM series fuse:

HEV-J-Q	1000VDC/AV (5A-800A)					Equal to SINOFUSE
Product code	Rated Current	I²t(A²Sec)		power consumption	Size code	RS309-MM series Fuse
Product code	A	Pre-arc	Total	W	Size code	RS309-MM series Fuse
HEV-J-Q-5	5A	20	115	1.8	HF1	RS30-MM-5A
HEV-J-Q-10	10A	30	170	2.2		RS30-MM-10A
HEV-J-Q-15	15A	48	220	3.1		RS30-MM-15A
HEV-J-Q-20	20A	72	360	3.6		RS30-MM-20A
HEV-J-Q-25	25A	85	510	4.2		RS30-MM-25A
HEV-J-Q-30	30A	110	830	5.1		RS30-MM-30A
HEV-J-Q-35	35A	180	1250	6.3		RS30-MM-35A
HEV-J-Q-40	40A	290	1650	7.8		RS30-MM-40A
HEV-J-Q-45	45A	350	1900	8.5		RS30-MM-45A
HEV-J-Q-50	50A	440	2450	10.0		RS30-MM-50A
HEV-J-Q-60	60A	600	3500	12.5		RS30-MM-60A
HEV-J-Q-70	70A	820	5500	14.0		RS30-MM-70A
HEV-J-Q-80	80A	1050	6500	16.0		RS30-MM-80A
HEV-J-Q-90	90A	1800	10500	17.0	HF2	RS30-MM-90A
HEV-J-Q-100	100A	2300	12000	18.0		RS30-MM-100A
HEV-J-Q-125	125A	3400	21000	20.0		RS30-MM-125A
HEV-J-Q-150	150A	4900	25500	27.0		RS30-MM-150A
HEV-J-Q-175	175A	9200	40000	30.0	HF3	RS30-MM-175A
HEV-J-Q-200	200A	15000	60000	32.0		RS30-MM-200A
HEV-J-Q-225	225A	19000	105000	40.0		RS30-MM-225A
HEV-J-Q-250	250A	24000	113000	47.0		RS30-MM-250A
HEV-J-Q-275	275A	25000	130000	49.0		RS30-MM-275A
HEV-J-Q-300	300A	26000	160000	52.0		RS30-MM-300A
HEV-J-Q-325	325A	33000	180000	55.0		RS30-MM-325A
HEV-J-Q-350	350A	42000	230000	60.0	HF4	RS30-MM-350A
HEV-J-Q-400	400A	71000	320000	65.0		RS30-MM-400A
HEV-J-Q-450	450A	78000	300000	80.0		RS30-MM-450A
HEV-J-Q-500	500A	105000	350000	95.0		RS30-MM-500A
HEV-J-Q-600	600A	163000	530000	105.0	HF5	RS30-MM-600A
HEV-J-Q-700	700A	320000	680000	155.0		RS30-MM-700A
HEV-J-Q-800	800A	420000	870000	185.0		RS30-MM-800A

More automotive fuses for the electric vehicle:

More other fuses and fuse holder you can choose from our factory:

The products list showed as below:

1. High-Voltage Auto Fuse (EV Series, HEV Series, HEN, BS88 Series, MEV Series)
2. Low-Voltage Auto Fuse (DNN Series, DFN Series,DKN Series)
3. Energy Storage Battery Fuse (MEV Series)
4. Power Fuse (HEV Series,BS88 Series,HH Series)
5. Solar PV Fuse(10*38,14*51,10*85,10*38 Holder,14*51 Holder,10*85Holder)
6. Charging Pile Fuse (HEV Series, EV Series, HDP Series)
7. 5G Telecom Fuse (HR70/HRP70 Series)
8. British Standard Fuse Series (BS1362/BS646)
9. High-Voltage Fuse (HD501/HDP501,HD601-619/HDP601-619 Series,10*38 Series)
10. Fuse blocks and holders

Certifications of the fuse products:

Certifications we've got:
UL, TUV, VDE, ASTA, PSB, CCC, CQC, IATF16949, ISO9001-2015, ROHS and Reach certifications. And we have UL&TUV authorized third-party witness Lab., Enable us to get UL&TUV very fast (within 15days).
