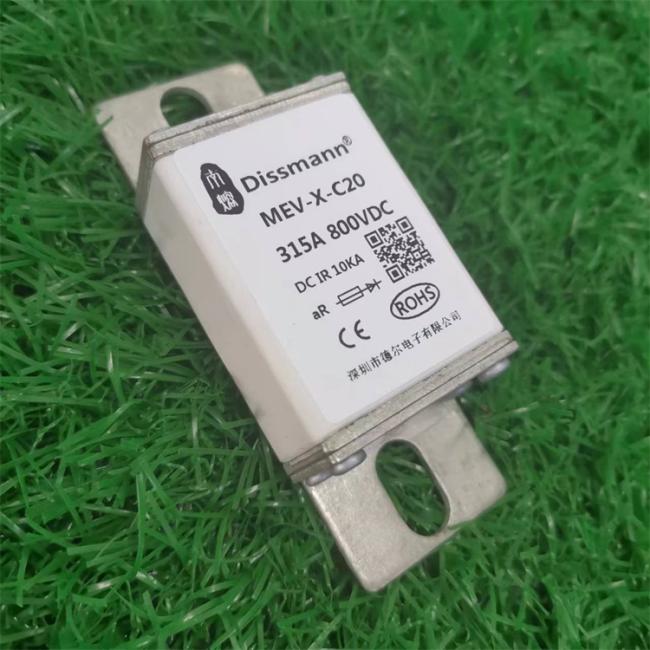

Dissmann MEV-J 1000VDC Fuse , Ceramic Automotive Fuses For EV Charger
Dissmann MEV-J 1000VDC Fuse Ceramic Automotive Fuses for EV Charger made in China
Basic information
- The size and performance of bolt-on fast-acting fuse shall comply with JASO-D622, IEC60269 and UL248
- Rated Voltage:DC1000V or lower； Rated Current:Optional
- Protection Type:aR； Breaking Capacity:DC50kA
- Comply with EU and China RoHS directives,
- Meet the requirements of UL-248, ISO8820 and JASOD622

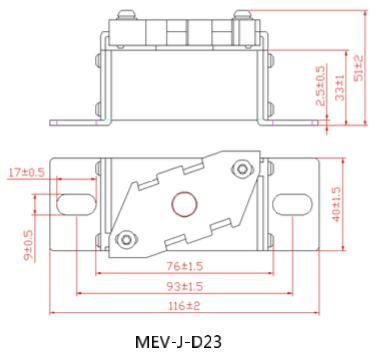

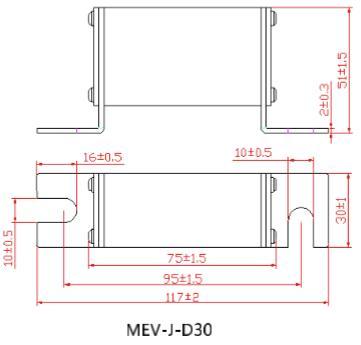

Appearance and installation dimension of the fuse(mm)
Product type that you can choose:
| MEV-J 1000VDC | ||||
| Product code | Rated current A | I²t(A²Sec) | power consumption | |
| Pre-arc | Total | W | ||
| MEV-J-C20 MEV-J-C21 MEV-J-C30 MEV-J-C31 MEV-J-D23 |
50 | 140 | 680 | 13 |
| 63 | 250 | 1300 | 15 | |
| 80 | 510 | 2550 | 20 | |
| 100 | 1100 | 5200 | 28 | |
| 125 | 2000 | 9800 | 32 | |
| 160 | 4100 | 20000 | 38 | |
| 200 | 8500 | 42000 | 44 | |
| 250 | 13000 | 60000 | 48 | |
| 300 | 18000 | 90000 | 53 | |
| 315 | 23000 | 110000 | 60 | |
| MEV-J-D20 MEV-J-D30 MEV-J-D23 |
350 | 24000 | 125000 | 70 |
| 400 | 38000 | 190000 | 80 | |
| 450 | 53000 | 260000 | 85 | |
| 500 | 69500 | 340000 | 95 | |
Service conditions
Normal use conditions and parameter correction.
The fuse operates under the following normal conditions of use, without additional correction.
When the normal use conditions are exceeded, if they are within the allowable use conditions, some parameters may need to be corrected or consulted. If the scope of allowable use conditions is exceeded, our company should be consulted and the work adaptability evaluation and test of the conditions should be carried out.
It is recommended that the current value of long-term current flow should not be greater than 80% of the rated current.
