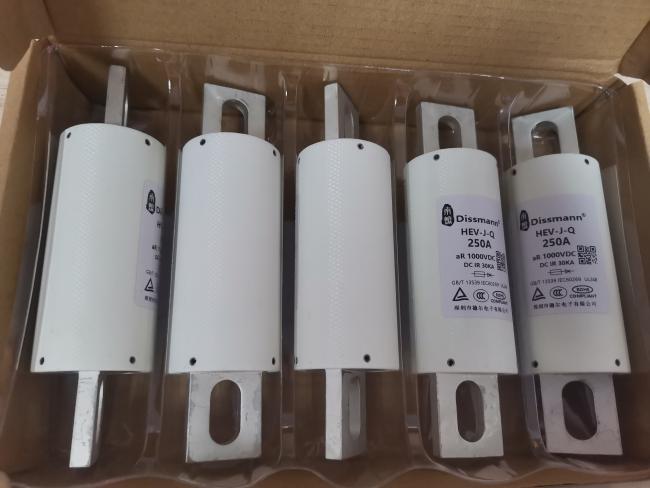

M8 Bolt HEV Series Fuses DC1000V Fiber Automotive Fuses 600A High Current Fuses

M8 bolt HEV series fuses available line in 250/500/750/1000VDC circuit

Description of the HEV series fuse

• Bolt connection fast type fuse, Dimension and performance conform to UL248,GB13539,IEC60269
• Rated Voltage: 1000VDC or lower,Rated Current: 600A, type of protection:aR,Breaking capacity: DC30KA(Time constant≤15ms)
• Compliance with EU and ROHS directive.
• Approved by CCC and TUV certificate

Material of the HEV series fuse

Dimension of the HEV fuse(mm)

Installation conditions

Normal working conditions

• The fuse is installed separately in natural air without ventilation. Except for the connecting wires, there are no other heat-generating parts or heat-dissipating parts within 1m.
• The fuse connection terminal should ensure stable and reliable electrical contact. The contact resistance should not significantly affect the operation of the fuse.
• The fuse can be installed vertically, horizontally or obliquely. If you rely on spring pressure to ensure the electrical connection of the fuse, you should choose a suitable location during installation to avoid the adverse effects of gravity and vibration on the electrical connection.

FAQ

Question:My battery product nominal current is 250A, and the pulse current is 380A. So how much of the fuse of the current is protected?

Answer:Generally, we use your pulse current as the basis for selection, and the 600A fuse is required.
