Dissmann HDP6 Series 6.3x32mm Ceramic Fuse UL Certified 500VDC / VAC
6.3x32mm Ceramic Fuse UL Certified Dissmann HDP6 series 500VDC/VAC fuse Can be Used to Replace Littelfuse 505 Series fuse
HDP601
Product dimension drawing of HDP6XX
HD600
Product dimension drawing of HD6XX
Dissmann fuse HD/HDP6 series 500VAC/500VDC ceramic fuse Including the following 3 models:
1. HD601/HDP601 Rated Voltage:500VAC Rated Current:1-30A Breaking Capacity:1500A
2. HD602/HD602 Rated Voltage:500VDC Rated Current:1-30A Breaking Capacity:1500A
3. HD603/HDP603 Rated Voltage:500VAC/500VDC Rated Current:1-30A Breaking Capacity:1500A
Suitable for circuit protection in high energy applications.
| HD/HDP601 500VAC | |||
| 产品代码 | 额定电流 A | I²t | 100%电压降 |
| (A²Sec) | mV | ||
| HD601 HDP601 |
1 | 0.75 | 575 |
| 2 | 2.93 | 851 | |
| 3 | 3.94 | 422 | |
| 4 | 11 | 311.6 | |
| 5 | 30 | 299 | |
| 8 | 91 | 244.1 | |
| 10 | 164.3 | 242.8 | |
| 15 | 235 | 190.6 | |
| 20 | 464 | 196.2 | |
| 25 | 1193 | 170.6 | |
| 30 | 1858 | 154.7 | |
| HD/HDP602 500VDC | |||
| 产品代码 | 额定电流 A | I²t | 100%电压降 |
| (A²Sec) | mV | ||
| HD602 HDP602 |
1 | 0.75 | 575 |
| 2 | 2.93 | 851 | |
| 3 | 3.94 | 422 | |
| 4 | 11 | 311.6 | |
| 5 | 30 | 299 | |
| 8 | 91 | 244.1 | |
| 10 | 164.3 | 242.8 | |
| 15 | 235 | 190.6 | |
| 20 | 464 | 196.2 | |
| 25 | 1193 | 170.6 | |
| 30 | 1858 | 154.7 | |
| HD/HDP603 500VDC/500VAC | |||
| 产品代码 | 额定电流 A | I²t | 100%电压降 |
| (A²Sec) | mV | ||
| HD603 HDP603 |
1 | 0.75 | 575 |
| 2 | 2.93 | 851 | |
| 3 | 3.94 | 422 | |
| 4 | 11 | 311.6 | |
| 5 | 30 | 299 | |
| 8 | 91 | 244.1 | |
| 10 | 164.3 | 242.8 | |
| 15 | 235 | 190.6 | |
| 20 | 464 | 196.2 | |
| 25 | 1193 | 170.6 | |
| 30 | 1858 | 154.7 | |

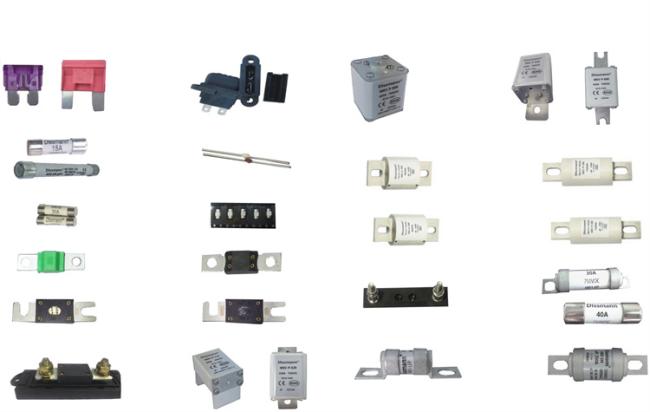

Other fuse you can choose from our factory:
