EV Battery High Voltage Fuse , ESS Fuse For Commercial Truck Customer
China EV battery fuse supplier

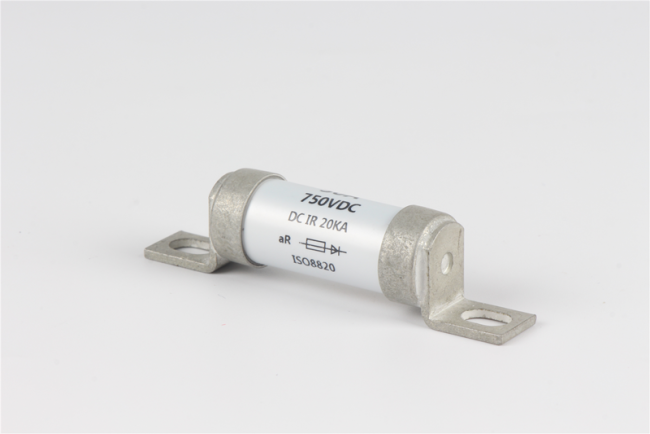

Basic information of the EV battery fuse
Bolted fast fuse,dimension and performance conform:GB13539,IEC60269,UL248
Rated Voltage: DC750V or lower
Rated Current:16A/20A/32A/40A
Class of Protection:aR
Breaking Capacity:DC20kA
Compliance with EU and China RoHS directives
Compliance with the requirements of QC/T413,ISO8820,JASOD622
Dimension of the EV battery fuse
Application of the EV battery fuse
This series of products are round-tube bolt-connected fast fuses, which have the characteristics of small size, and high reliability. Applicable to a wide temperature range, can withstand high-intensity mechanical vibration and shock, temperature shock and strong chemical load, suitable for road vehicle industry applications, can be used as electric vehicle drive power system, power conversion system, energy storage and power battery, energy storage Short-circuit and backup protection for capacitors, inverter controllers, chargers, wires, and other automotive components and equipment.Short circuit protection fuses especially for pure electric vehicles and hybrid electric vehicles
Electrical parameters of EV battery fuse
| Model | Code |
Rated Current A |
100% voltage drop mV |
| HBD-EPL | HBD-16EPL | 16 | 266.6 |
| HBD-EPL | HBD-20EPL | 20 | 317.4 |
| HBD-EPL | HBD-32EPL | 32 | 253.5 |
| HBD-EPL | HBD-40EPL | 40 | 224.4 |
FAQ
Question:What are the advantages of your BS88 series fuse product compared with the Sinofuse?
Answer:Our BS88 series fuse product can reach a maximum current of 700 amperes, has UL certification, and has a more favorable price and cost.
