1t Custom Scissor Lift Table 1200mm Rotary Round Plate

Price Negotiable
Price: Negotiation
MOQ: 10 set
Delivery Time: Negotiable
Brand: JS
Product Description

New Arrival Rotating Top Custom Lift Tables 1200 Mm Rotary Round Plate Up To 1000kg Loading Weight

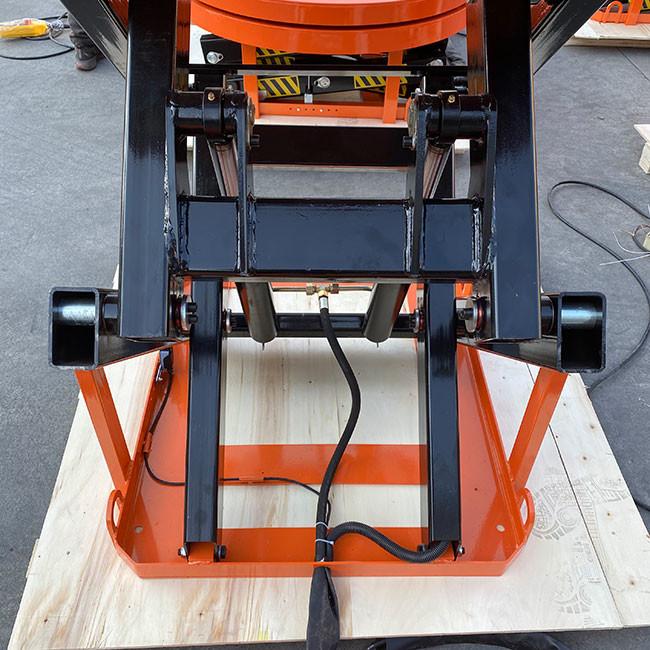

Customized double scissor lift table with rotating



We could supply you different size as requested for height, loading weight,diameter what you needed.

This rotating lift tables with 1.5KW and 380V input voltage to keep powerful. However, customized rotary platform lift tables are available. This rotating top lift tables is equipped with hydraulic cylinder and double





Standard non-customized specification



Model
Unit
HD1000
HD2000
HD4000
Rated Lifting Capacity
Kg
1000
2000
4000
Platform Size
mm
1300x820
1300x850
1700x1200
Base Size
mm
1240x640
1220x785
1600x900
Min/Max Height
mm
305/1780
360/1780
400/2050
Elevating Time
s
35-45
35-45
55-65
Power Parameters

380V/50Hz
380V/50Hz
380V/50Hz
N.W.
Kg
210
295
520



360 degree swivel top with heavy duty cam rollers and exclusive swivel bearings.


Integral gear pump with check valve, relief valve, solenoid valve.
