Transverse Double Scissor Electric Hydraulic Scissor Lift Table With Dust 2 Ton Max Height 1000mm Custom

Price Negotiable
Price: Negotiation
MOQ: 10 set
Delivery Time: Negotiable
Brand: JS
Product Description

Transverse Double Scissor Payload Capacity 2ton Electric Scissor Lift Tables With Dust Max Height 1000mm Custom



Transverse scissor lift table



Flexible and compact lifting platform/working positioner. Suitable for heavy industrial environments, office buildings and pharmaceutical plants with loads up to 4000 kg.
Hydraulic lifting platform adopts industrial design, equipped with high quality components, standard with two brake casters, which can prevent the lifting platform from moving during unloading. In addition, the heavy-duty hydraulic pump mechanism is equipped with a reduction valve to ensure smooth movement during lifting.



Model
Unit
HD500LD
HD2000LD
HD4000LD
HD8000LD
Rated Lifting Capacity
Kg
500
2000
4000
8000
Platform Size
mm
2000x800
2500x820
2500x850
3000x1200
Base Size
mm
1615x680
2460x640
2450x785
2500x900
Min/Max Height
mm
200/1000
205/1000
230/1000
300/1050
Elevating Time
s
16-26
26-36
36-46
40-50
Power Parameters

380V/50Hz
380V/50Hz
380V/50Hz
380V/50Hz
N.W.
Kg
193
265
360
560

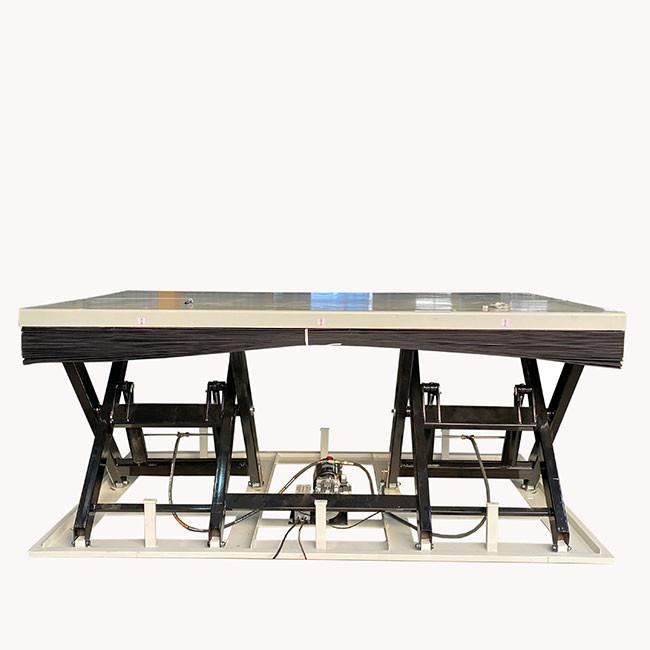

Heavy Duty Double Horizontal Scissor Lift Tables

Heavy Duty Double Horizontal Scissor




Scan this code and contact us for Double scissor lift tables




Control box with 24V battery back up
