Mobile Portable Hydraulic Table

Mini Hydraulic 150Kg Payload Capacity Platform 27.56in * 17.72in Mobile Scissor Lift Tables Max Height 29.72in

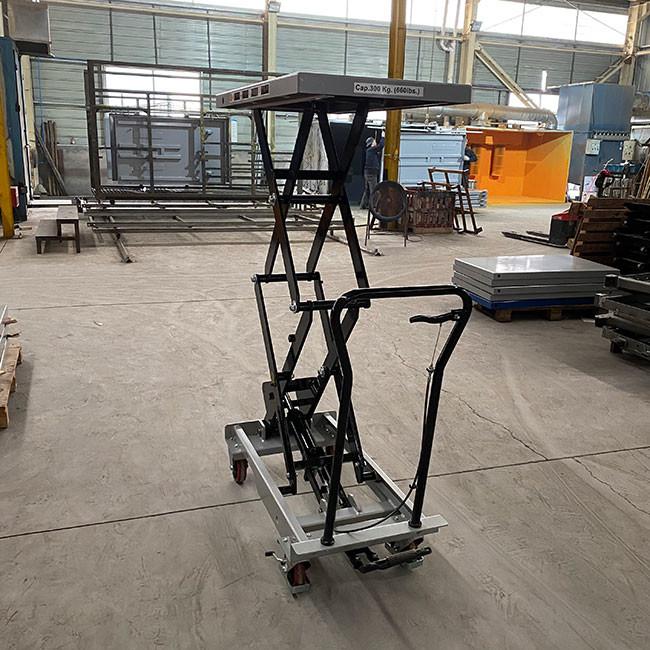

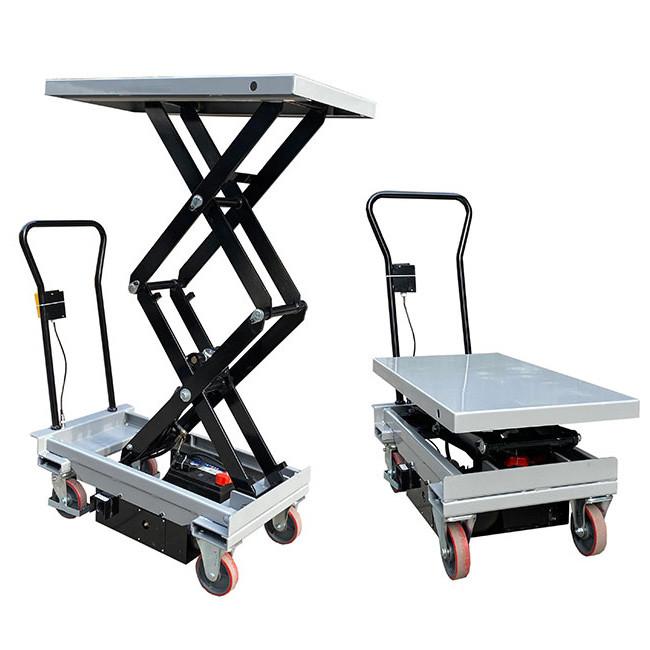

Manual Double Scissor Lift Table

The portable shear lift platform is an effective low-cost solution ideal for lifting small, heavy loads to a comfortable working height and is the perfect multistage work platform for easily locating loads.
Jiasheng provides safe, universal lifting AIDS for industry, workshops and warehouses. Portable shear lift platform is an effective low cost solution.
The BS series provides 150 to 1000 kg of lift and can be easily lifted to a height of 1580mm. With these devices, you can have high productivity and a relaxed work environment with minimal maintenance.



Model	Capacity (kg)	Description
		Single/Double Scissor	Platfor Size (mm)	Min/Max Height (mm)	Wheel Dia. (mm)	N.W. (kg)
BS15	150	Single	700x450	265x755	100	41
BS25	250	Single	830x500	330x910	125	78
BS50	500	Single	1010x520	435x1000	150	112
BS75	750	Single	1010x520	442x1000	150	112
BS100	1000	Single	1010x520	445x950	150	130
BS15D	150	Double	830x500	435x1430	125	90
BS30D	300	Double	1010x520	435x1585	125	137.5
BS50D	500	Double	1010x520	440x1575	150	156
BS80D	800	Double	1010x520	470x1410	150	160



Portable Manual Lift Tables

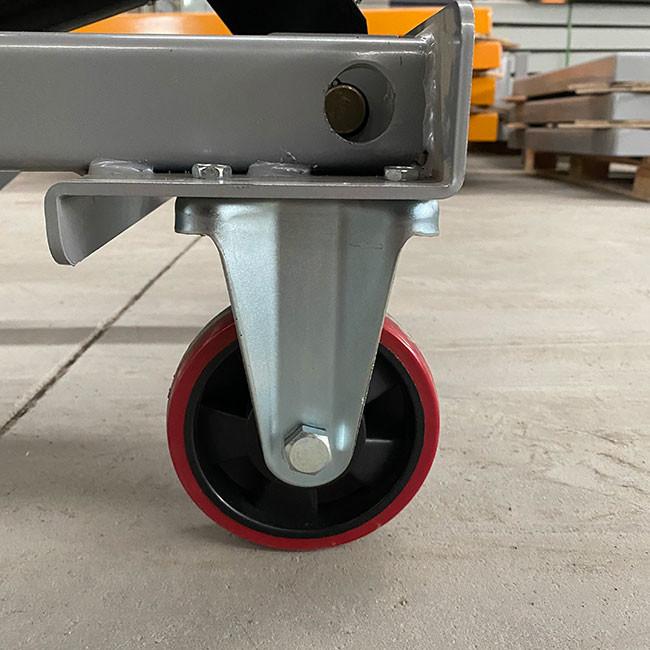

Polyurethane swivel wheels
Foot operated hydraulic pump
Scan the QR code to contact us for quick reply for the Single scissor lift tables
