China Electric Hydraulic Scissor Lift Tables Multi Stage Scissor Lift With Rotating Tops 1200mm Up To 1000kg for sale

Electric Hydraulic Scissor Lift Tables Multi Stage Scissor Lift With Rotating Tops 1200mm Up To 1000kg

Name: Electric Hydraulic Scissor Lift Tables Multi Stage Scissor Lift With Rotating Tops 1200mm Up To 1000kg
Brand: Hangzhou Aayee Technology Co.,Ltd

Price Negotiable

Price: Negotiation

MOQ: 10 set

Delivery Time: Negotiable

Brand: JS

Product Description

Hydraulic Electric Multi Scissors Lift Tables With Rotating Tops 1200 Mm Up To 1000kg Loading Weight Custom Lift Tables

Customized electric scissor lift table with rotating top

Model	Unit	HD1000 with rotating	HD4000 with rotating
Rated Lifting Capacity	Kg	1000	4000
Platform Size	mm	1200mm dia	1000mm dia
Base Size	mm	1240x640	1600x900
Min/Max Height	mm	305/1780	500/1400
Elevating Time	s	35-45	55-65
Power Parameters		380V/50Hz	380V/50Hz
N.W.	Kg	450	450

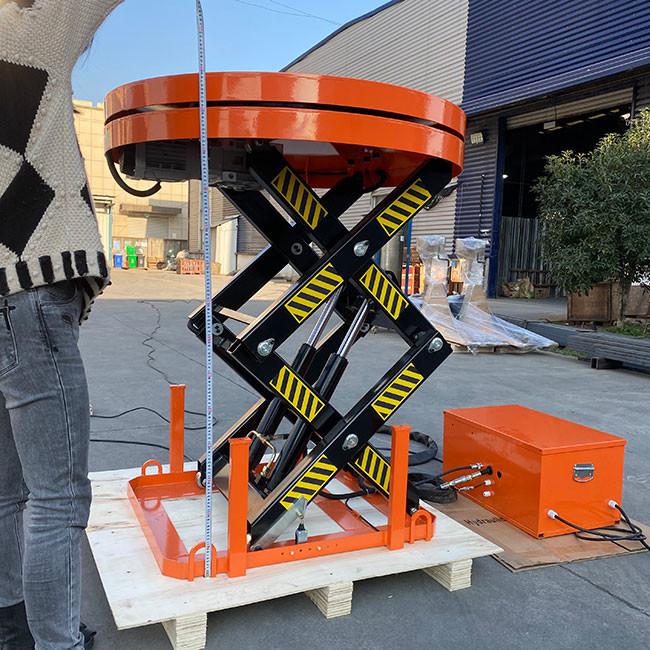

			Hydraulic Scissors Lift Tables with Rotating Tops
360 degree swivel top with heavy duty cam rollers and exclusive swivel bearings. Cylinder with Internal Stop, Hard Chrome Plated, Polished Shafting Hydraulic Cylinder Piston Rod.Surfaces are degreased, descaled and painted with safety yellow enamel Integral gear pump with check valve, relief valve, solenoid valve. Smooth steel top with yellow safety strips Magnetic Backing With control box for motor

			Travel limit switch

			Limit components adjust the desire height by controller. Industrial design with high-quality components, the hydraulic lift table comes standard with two brake casters that prevent the table from moving when unloaded. In addition, the heavy-duty hydraulic pump mechanism is equipped with a slow-down valve to ensure smooth movement during the lifting process.

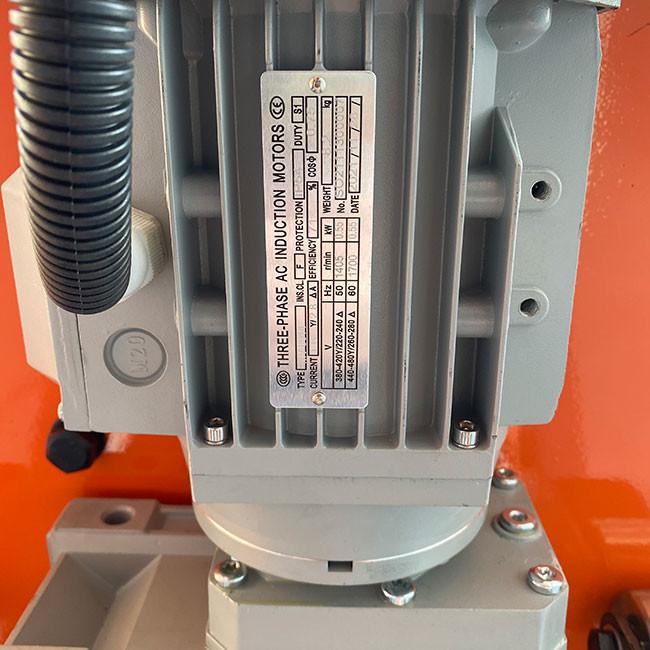

			Powerful by Electric
3-phase support powerful in watt. Ideal technical design supply support lifting with Double scissor.
