4 Pin Unshieled M12 A Code Female Straight Connector 2m Pvc Industrial Automation
Price:
Negotiated
MOQ:
100
Delivery Time:
2~3 weeks
Brand:
CABLEFORCE
Product Description

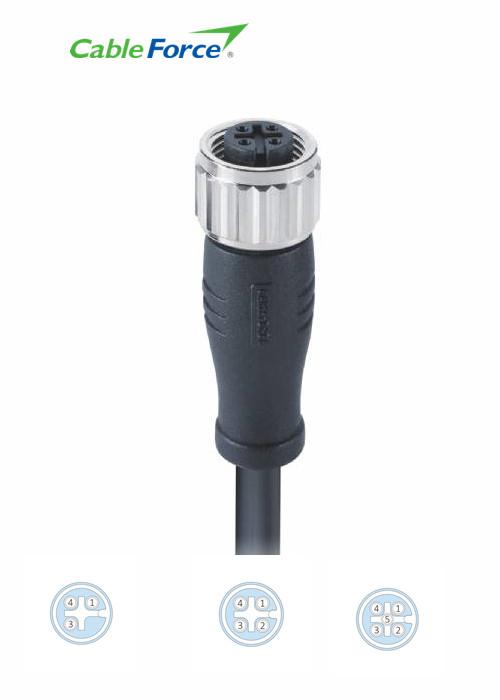

4 Pin Unshieled M12 A Code Female Straight Circular Connector With 2m Pvc Industrial Automation
|

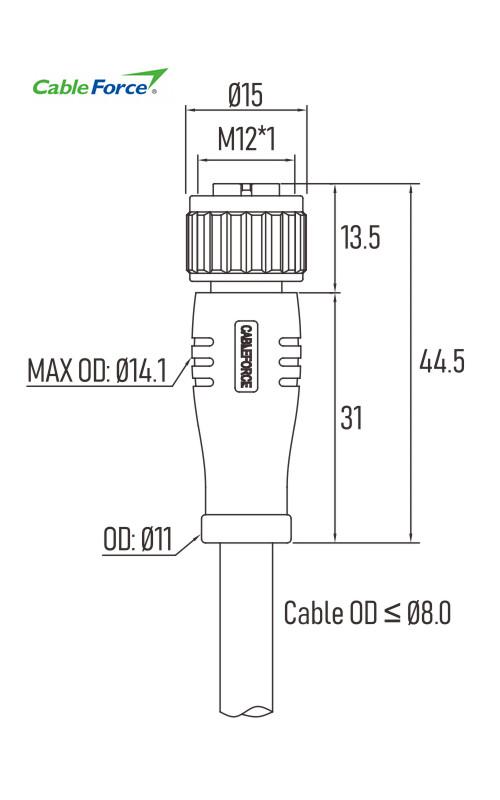

Connector Technical Data
|
|||||||||
|
Model Number
|
MC04C2LSAB22CK20 | ||||||||
|
Connectors No.
|
4 Pin
|
||||||||
|
Rated Current
|
4A
|
||||||||
|
Rated Voltage
|
250V
|
||||||||
|
Impulse Voltage
|
2500V
|
||||||||
| O ring | FKM / Silicon | ||||||||
| Insulation resistance | 100MΩ | ||||||||
| Contact resistence | 5MΩ | ||||||||
| Termination | Soldering | ||||||||
| Contact carrier | TPU,GF | ||||||||
|
Pollution degree
|
3 | ||||||||
Product Description
M12 circular cable connectors with a 12-mm locking thread used for sensors, actuators, Fieldbus and industrial Ethernet, primarily in factory automation applications. Often with ratings ofIP65, IP68 and IP69K, they are ideal for washdown and corrosive environments. The M12 family can be found in many applications such as factory automation, measurement and control, communications, food and beverage, transportation, agriculture, robotics and alternative energy.
CABLEFORCE Products Features
●Current rating: 20A, 16A, 12A,8A, 4A, 2A, 1.5A
●360° Shielded or non-shielded versions are available
●Degree of protection IP67,IP69K
FAQ
● What is a M12 thread?
M12 x 25 = 12 mm diameter, coarse thread is assumed (1.75 mm), 25 mm long. M12 is a matching coarse threaded nut.
(To avoid confusion, we always include the thread pitch for both coarse and fine metric fasteners.)
