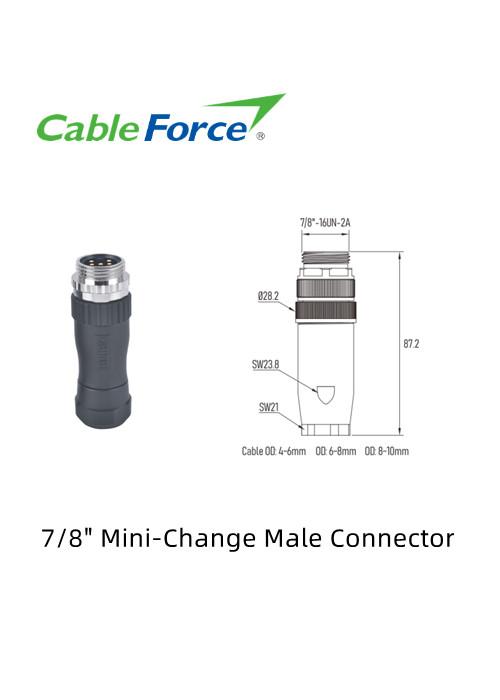

7/8 Inch 3 Pin 4 Pin 5 Pin Male Mini Change Connector Field Wireable Screw Termination
|
Connector Technical Data
|
|||||||||
| Model Number | MF05A1LWAB | ||||||||
| Contact No | 3 pin 4pin 5 pin | ||||||||
|
Insulation Resistance
|
≥100MΩ
|
||||||||
|
Contact Resistance
|
≤5mΩ
|
||||||||
| Rated Current | 13 A,8 A | ||||||||
| Rated Voltage | 2500 V | ||||||||
|
Wire Gauge
|
0.75~1.25mm²(AWG 16~18)
|
||||||||
|
Connector Type
|
7/8" Min-Change Connector
|
||||||||
|
Contact Carrier
|
TPU+GF
|
||||||||
| O-Ring | FKM,Silicon O-Ring | ||||||||
|
Screw Nut
|
Brass,CNC,Nickel-plated
|
||||||||
|
Contact
|
Male:Brass, Female:Phosphor bronze
|
||||||||
|
Pollution Degree
|
3 | ||||||||
|
Protection Degree
|
IP67,IP68
|
||||||||
The 7/8 Mini-change connector designed with A-Coding and available with 3,4,5 poles .The 7/8" Mini-Change IP67 connectors are mating -compatible with industry mini-change connectors and designed for both power connection for rough environments such as Mining,Automotive,Machine building technologies.Cableforce offers 7/8" over molded cables,7/8'' panel mount receptacles and 7/8" field wireable connectors.
