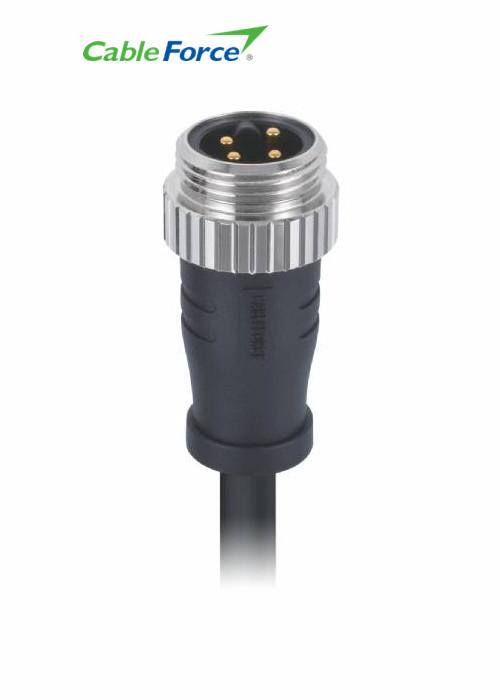

Mini Change Male 4 Pin Connector Molded With 2M PVC 16AWG UnShielded Cable
Price:
Negotiated
MOQ:
100
Delivery Time:
2~3 weeks
Brand:
CABLEFORCE
Product Description
7/8 Inch Mini-Change Male 4 Pin Connector Molded With 2M PVC 16AWG UnShielded Cable
|

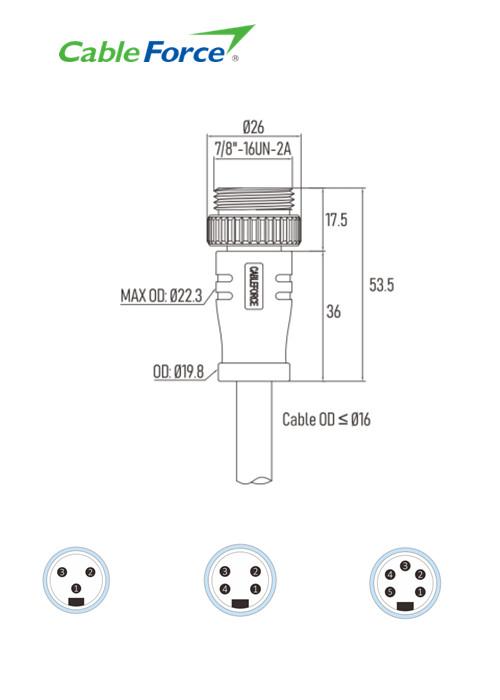

Connector Technical Data
|
|||||||||
|
Model Number
|
MF04C1LCABCK20 | ||||||||
|
Connectors No.
|
4 Pin
|
||||||||
| Gender | Male | ||||||||
|
Rated Current
|
13A,8A
|
||||||||
| Coding | A Coding | ||||||||
|
Rated Voltage
|
300V
|
||||||||
|
Impulse Voltage
|
2500V
|
||||||||
| Rated Temperature | -25℃~+80℃ | ||||||||
| O ring | FKM , Silicon | ||||||||
| Tightening Torque | 1.5Nm | ||||||||
| Over-molding | TPU | ||||||||
| Locking System | 7/8'' screw | ||||||||
| Insulation Resistance | ≥100MΩ | ||||||||
| Contact Resistence | ≤5MΩ | ||||||||
| Type of Cable | PVC or PUR | ||||||||
| Wire Gauge | 0.75~1.25mm² (AWG 16~18) | ||||||||
| Cable Length | 2M | ||||||||
| Termination | Crimping | ||||||||
| Protection Degree | IP67,IP68 | ||||||||
| Contact Carrier | TPU+GF | ||||||||
|
Pollution Degree
|
3 | ||||||||
Description
7/8 Inch Mini-Change Male 4 Pin Connector Molded With 2M PVC 16AWG UnShielded Cable was included in Cableforce 7/8''Mini-change series connector,which are mating-compatibel with industry mini-change connectors and designed for both signal and electricity current application.Cableforce offers 7/8'' over molded cables (PVC or PUR),7/8''Field wireable connectors and 7/8'' panel mount receptacles.
7/8''Mini-change Circular Cable Connectors Feature
●Degree of protection IP67
●3P,4P,5P are available
●Custom cable specification,PUR and PVC cable option
●TPU over molded or plastic shell
●Current rating:8S~13A
●Operating voltage:300V
●Power connection for rough environments such as mining,automotive,machine building technologies.
FAQ
● What is your Core competitiveness?
-
Providing application orientated product’s design and solution
-
Over 15 years working experience in cable & connector manufacturing industry
-
Choosing reliable and higher performance material for products
●About Cableforce Brief?
Cableforce focuses on the industrial cable and connector‘s R&D, Manufacture and Sales. We located in Dongguan City, in the southern China, with 3000㎡ premises and efficient modern machinery and equipment for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.Cableforce globally supplying customers with excellent quality cable and connectors at affordable price.
● What kind of machine can be used of Cableforce connector in Factory Automation?
-
Sensors Devices
-
Servo Motors
-
Industrial Safety
-
Packaging Conveyor
-
Vision Control
-
Industrial Computer
-
Field-bus Odva
-
Material Handing and Robotics
