Field Installation M12 Male Connector 5 Pin A Code Plastic Screw PG7 PG9 IP67 IP68
|
Connector Technical Data
|
|||||||||
| Model Number | MC05A1LSAP | ||||||||
| Contact No | 5 pin | ||||||||
|
Insulation Resistance
|
≥100MΩ
|
||||||||
|
Contact Resistance
|
≤5mΩ
|
||||||||
| Rated Current | 4A | ||||||||
| Rated Voltage | 60V | ||||||||
| Cable Outlet | PG7 (4~6mm) , PG9 (6~8mm) | ||||||||
| Rated Temperature | -25℃~+90℃,-40℃~+125℃ | ||||||||
| Locking System | M12 ×1.0 Screw | ||||||||
| Tightening Torque | 0.4Nm | ||||||||
| Termination | Soldering | ||||||||
|
Wire Gauge
|
0.34mm²(AWG 22)
|
||||||||
|
Type
|

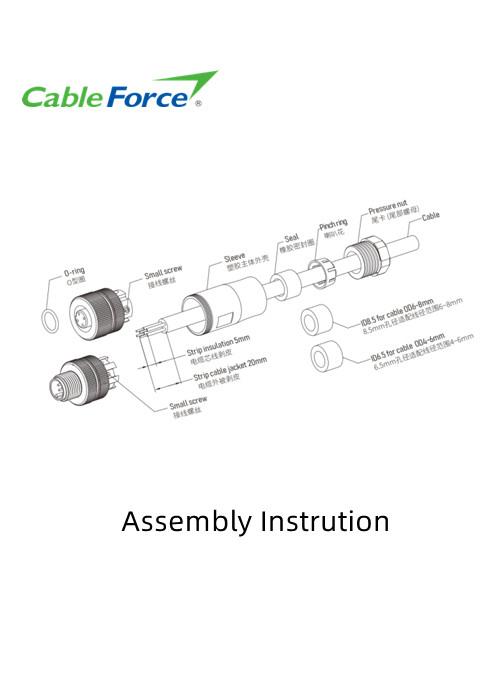

M12 Field Wireable Cable Connector Plastic Screw
|
||||||||
| Contace Body | PA66+GF | ||||||||
|
Contact Carrier
|
PA66+GF
|
||||||||
|
Screw Nut
|
PA66+GF | ||||||||
|
Contact
|
Brass
|
||||||||
| Contacts Plating | Au (Gold) | ||||||||
|
Pollution Degree
|
3 | ||||||||
|
Protection Degree
|
IP67,IP68
|
||||||||
The M12 metric size A-Coding connectors, based on IEC 61076-2-101 standard, it is the most commonly used connector in the factory automation. M12 A-Coding connectors mainly designed for sensor and actuator devices. CABLEFORCE M12 A-Coding connectors are developed and designed for harsh industrial and climatic environments, e.g. High temperature range endurance, Hydrolysis resistant, Oil resistant, Corrosion resistant, UV-Resistant, Abrasion resistant, Bending and Drag Chain applicable. M12 A-Coding is a specified single keyway design; differentiate itself from B, C, D, X, S, T, K, L, Y-Coding.
● Cable plugs, field installable plugs, panel receptacles, T-connectors, Y-Splitters are available
● Cable length base on customer requesting
● 2, 3, 4, 5, 6, 8, 12, 17 poles are available
● Operating voltage 250V/ 60V/ 30V; Current range: 4A, 2A, 1.5A
CABLEFORCE Products Features
● Sturdy metal coupling screws with anti-vibration design, 48 hours Salt Spray Test
● TPU over molded and PA+GF or metal shell
● IP67 IP68 IP69K and UL approvals
● Temperature Range: Dynamic -25 ~ 80℃, Static: -40 ~ 80℃.
● RoHS, REACH compliant.
FAQ
● What is the Application of M12 Connector?
- Senor and Actuator
- Factory automation
- Industrial safety control
- Logistic and packaging
- Railway transit
- Industrial Ethernet
- Vision Control
● How many times of Cable Moving Application Drag Chain can be chose?
-
5 Million times
-
10 Million times
-
20 Million times
●What's Cableforce Core Benefits can provide to customers?
-
Free Technical Consultation
-
Samples & Prototyping
-
Free Technical Drawings
-
Timeline Planning
-
Quality Control & 100% Testing 100%
-
Safe and reliable system that is easy to install
-
Manufactured, assembled and tested in our facility
-
Guaranteed for life
-
CE,IP67,UL Certified
-
Excellent weathering,UV and temperature resistance
-
High impact strength even
-
Ingress protection up to IP68
-
RoHS and REACH compliant
-
Free of halogen, LSZH
-
Excellent chemical resistance: to fuels, oils, alkalies, weak acids.
