NMEA2000 M12 5 Pin Connector A Code Power Tap Male To Female 0.5M 1M 2M
|
Connector Technical Data
|
|||||||||
| Model Number | MC05T6-CMFAB22CK05 | ||||||||
| Contact No | 5 pin | ||||||||
|
Insulation Resistance
|
≥100MΩ
|
||||||||
|
Contact Resistance
|
≤5mΩ
|
||||||||
| Rated Current | 4A | ||||||||
| Rated Voltage | 60V | ||||||||
| O-ring | FKM/Silicon O-Ring | ||||||||
| Rated Temperature | -25℃~+80℃ | ||||||||
| Locking System | M12 ×1.0 Screw | ||||||||
| Tightening Torque | 0.4Nm | ||||||||
|
Type
|
M12 A Code 5 Pin Power-Tap Connector
|
||||||||
| Contace Body | TPU | ||||||||
|
Contact Carrier
|
TPU+GF | ||||||||
|
Screw Nut
|
Brass, CNC, Nickel-plated | ||||||||
|
Contact
|
Brass, Phosphor bronze
|
||||||||
| Contacts Plating | Au (Gold) | ||||||||
|
Pollution Degree
|
3 | ||||||||
|
Protection Degree
|
IP67,IP68
|
||||||||

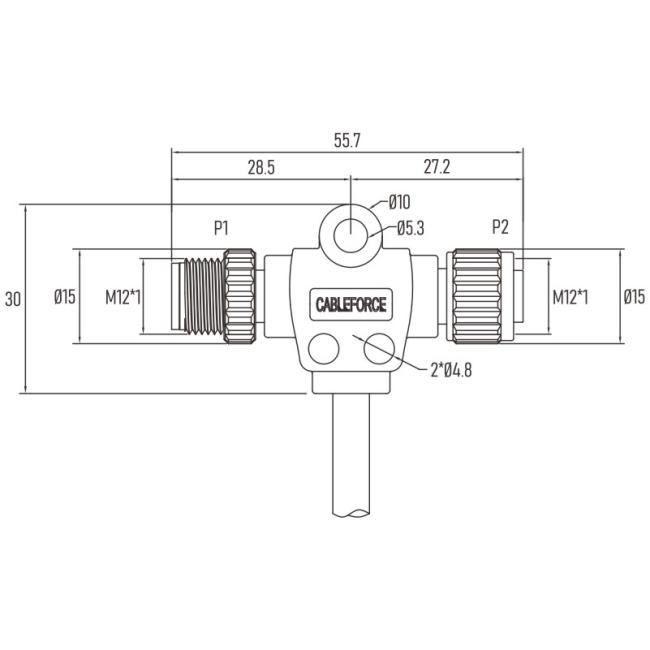

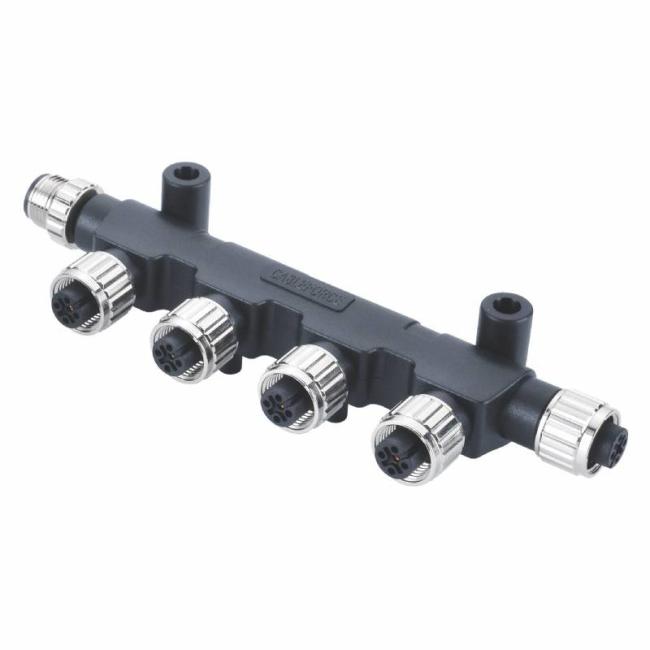

The M12 T-Connectors split wires into 2 or more separate connectors, allowing installation of two more single or power channel input or output devices to each port of hardwired distribution box. Connectors are available with parallel circuits, which allow input or output signals to run or trigger devices simultaneously. The T-Connectors are mainly designed for various Fieldbus system, such as the cabling of Devicenet, CANbus, Profibus, NMEA 2000 etc…
● Male - Female configurable
● 2 Way-T, 4 Way-T solutions with shielding option
● 3, 4, 5, 8 poles and plastic connectors are available
● Operating voltage 250V / 30V, Rated current 4A, 2A
● Temperature range: -40°C ~ + 80°C
● Anti-Vibration and IP67 protection degree
.
CABLEFORCE Products Features
● Sturdy metal coupling screws with anti-vibration design, 48 hours Salt Spray Test
● TPU over molded and PA+GF or metal shell
● IP67 IP68 IP69K and UL approvals
● Temperature Range: Dynamic -25 ~ 80℃, Static: -40 ~ 80℃.
● RoHS, REACH compliant.
FAQ
● What is the Application of M12 Connector?
- Senor and Actuator
- Factory automation
- Industrial safety control
- Logistic and packaging
- Railway transit
- Industrial Ethernet
- Vision Control
● How many times of Cable Moving Application Drag Chain can be chose?
-
5 Million times
-
10 Million times
-
20 Million times
●What's Cableforce Core Benefits can provide to customers?
-
Free Technical Consultation
-
Samples & Prototyping
-
Free Technical Drawings
-
Timeline Planning
-
Quality Control & 100% Testing 100%
-
Safe and reliable system that is easy to install
-
Manufactured, assembled and tested in our facility
-
Guaranteed for life
-
CE,IP67,UL Certified
-
Excellent weathering,UV and temperature resistance
-
High impact strength even
-
Ingress protection up to IP68
-
RoHS and REACH compliant
-
Free of halogen, LSZH
-
Excellent chemical resistance: to fuels, oils, alkalies, weak acids.
