China Power Cable 16A 690V K Code M12 Connector 4 Pin +PE Male Straight Molded 0.5M PUR Shielded Cable for sale

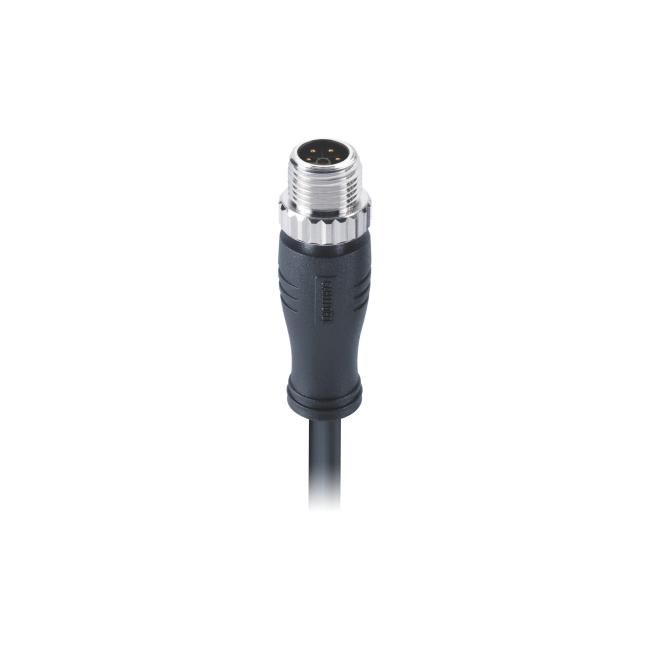

Power Cable 16A 690V K Code M12 Connector 4 Pin +PE Male Straight Molded 0.5M PUR Shielded Cable

Price Negotiable

Price: Negotiated

MOQ: 100

Delivery Time: 2~3 weeks

Brand: CABLEFORCE

Product Description

Power Cable 16A/690V M12 K Code Connector 4 Pin+PE Male Straight Molded 0.5M PUR 16A Shielded Cable

Connector Technical Data
Reference Standard	IEC 61076-2-111
Contact No	5 pin
Coding	K Coding
Insulation Resistance	≥100MΩ
Contact Resistance	≤5mΩ
Rated Voltage	690V AC
Rated Current	16A
Cable Specification	1.5mm²(AWG 16)
Type	M12 K Coding Connector Molded PUR 5x16AWG Power Cable
Contact Carrier	PA66+GF
Termination	Soldering
Screw Nut	Brass,CNC,Nickel-plated
Contact	Brass
Pollution Degree	3
Protection Degree	IP67,IP68,IP69K
Rated Temperature	Flexible:-25℃~+80℃ /,Static:-40℃~+80℃
Cable Length	1M,2M,5M,10M,20M or Customized

Description of M12 K Code Power Cable

CABLEFORCE has introduced the 690V /16A AC power M12 K-Code connector which provides high voltage and currents ratings combined with IP67/IP68 protection degree for application in harsh environmental conditions. Its compact design and high power transmission make it a cost-effective solution for operations that need a reliable, installation space saving and flexible power connector.
● K-Code, 5Pin (4+PE)
● Rated: 690V AC/ 16A
● Gold-plated crimp contacts
● PVC, PUR cable with custom specification service
● Panel receptacle with either 16AWG prewired or PCB solder contacts
● Protection degree IP67/IP68

Cableforce Products Catagory For your Reference

M5-Circular Cable Connectors
M8-Circular Cable Connectors
M12-Circular Molded Cable
M12-Circular Panel Connectors
M12-Field Wireable Connectors
M12-T-Adapter & Y-Splitter
M16-Circular Connectors
7/8''Mini-change Circular Cable Connectors
I/O-Industrial Data Cable Connectors
Rail Transit Vehicle Cables
Plastic Optical Fiber Cable
Cable Assembly and Wire Harness
NMEA2000-Boat Cable Connectors
Regular Use Bulk Cable

FAQ

● How many type of Contacts Version?

There are 5 kinds of contacts version about Cableforce connector ,Crimping Type,Solder Type,Screwing Type,PCB Contacts ,IDC.

● What's Quick Detail Of M12 Circular Connector?

1) Colours:Black,blue,white and yellow color supported

2) Mutiple pin:2,3,4,5,6,7,8,9 to 22 pins are optional

3) Assembly: wire to wire type(no cable),wire to wire by overmolding, wire to board

4) Contact pin: Screw terminal and soldering terminal available

5) Cable length:Different cable length could be customized

6) Advanced structure: Self-locking

● Where are your client come from?

We have lots of clients from many Countries and regions, Our main clients come from America, Europe and Australia.Cableforce's Mission :Globally supplying customers with excellent quality cable and connectors at afforable price.At Cableforce,you will experience our value-add products and services.With our systems ,our process,our people and our extensive vendor base affords us solutions to meet your requirements.
