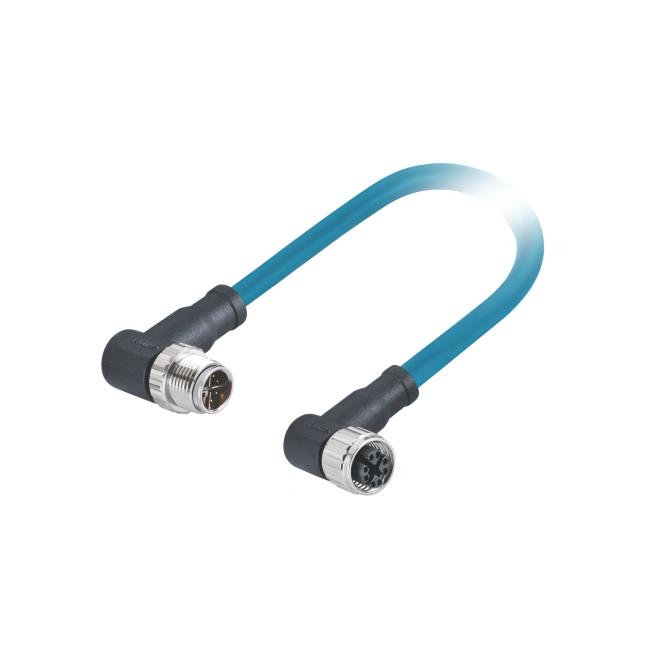

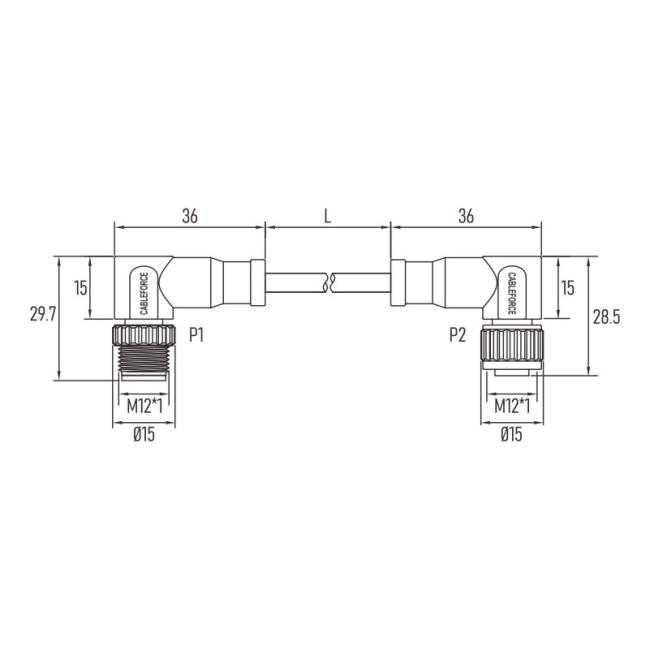

Ethernet Cable M12 X Coded Connector Right Angled Male To Female Molded 1m Pur Cat 6a 4px26awg Profinet Cable
|
Connector Technical Data
|
|||||||||
|
Model Number
|
MC08C3RSXSB26RG10 | ||||||||
| Tightening Torque | 0.4Nm | ||||||||
| Locking System | M12 ×1.0 screw | ||||||||
|
Connectors No.
|
8 Pin
|
||||||||
|
Rated Current
|
0.5A
|
||||||||
|
Rated Voltage
|
50V AC, 60V DC
|
||||||||
|
Impulse Voltage
|
800V
|
||||||||
| O Ring | FKM , Silicon, O-Ring | ||||||||
| Insulation Resistance | ≥100MΩ | ||||||||
| Contact Resistence | ≤5MΩ | ||||||||
| Termination | Soldering | ||||||||
| Cable Length | 1M or Customized length | ||||||||
| Contact Carrier | PA66,GF | ||||||||
|
Pollution Degree
|
3 | ||||||||
| Protection Degree | IP65, IP67 | ||||||||
The M12 X-coding connector conforms to IEC 61076-2-109; it meet Cat 6A specifications with data transmission rates up to 10 Gbps, these high-speed connectors are designed for industrial communications and networks, video surveillance and other applications requiring a fast and reliable Ethernet connection. CABLEFORCE offers M12 X-Coding cable molded cordsets and M12 X-Coding PCB panel mount receptacles as well as male M12 X-Code to RJ45 male connector with different customized cable material and cable specifications.
● Cable available with PUR, PVC, LSZH, NFPA130 material
● Custom cable specification and lengths
● Rated: 48V/ 0.5A
● Up to 500Mhz/ 10Gbps
● Protection degree IP67
1. Cable jacket with different colors,grey,black,orange,yellow,blue,overmolded color can be customized.
2. Flexible: connectors for on-site assembly,extremely high winding and unwinding strength
3. Soldering connection: proven connection technology for a large selection of different conductors
4. Connector Screw/Nut:Plastic/Brass/Stainless steel

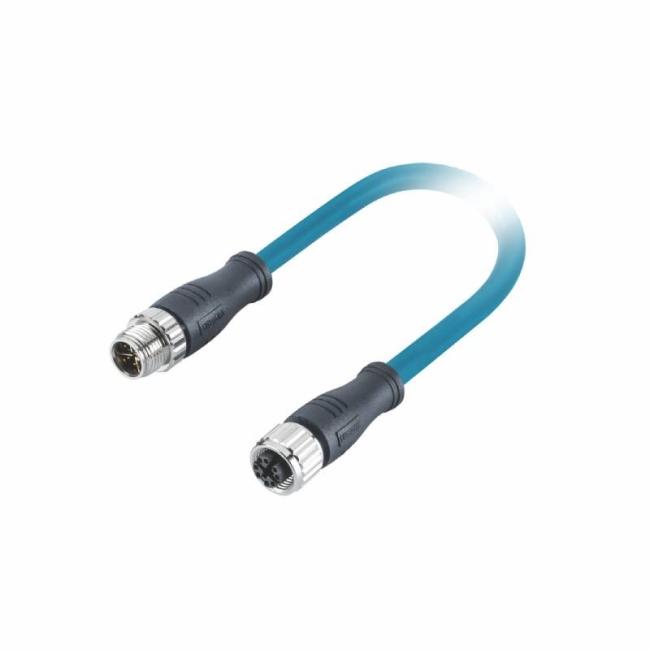

6. 90 degree angled or straight(180 degree) overmolded M8 connector with PUR or PVC cable
7. M8 extension cable or Flying leads(open cable ends),with good oil resistance/ chemical resistance
8. A-coding/B-coing/D-coding
