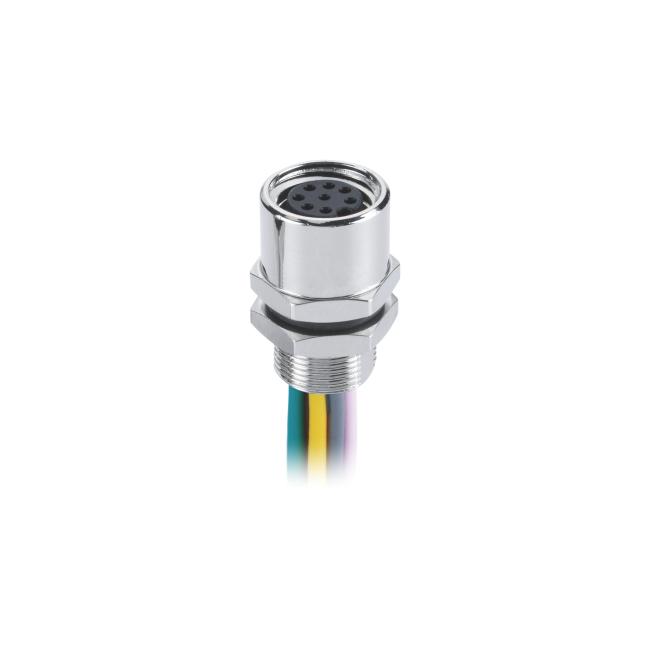

Soldered Wires M8 Panel Mount Connector Rear Receptacle Female With 0.5m Wires
| Connector Technical Data | |
| Contacts No. | 3Pin, 4Pin, 5Pin, 6Pin, 8Pin |
| Reference standard | IEC 61076-2-104 |
| Locking system | M8×1.0 screw |
| Tightening torque | Recommend: 0.3Nm, Max: 0.6Nm |
| Termination | Soldering |
| Wire gauge | 0.14mm²(AWG 26) |
| Rated temperature | -25℃ ~ +80℃ |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤5mΩ |
| Contact carrier | TPU+GF |
| Screw nut | Brass, CNC, Nickel-plated |
| Contact | Brass |
| Contacts plating | Au(Gold) |
| O-ring | FKM, Silicon |
| Protection degree | IP67, IP68, IP69K |
| Pollution degree | 3 |
M8 connectors is a connector of 8mm metric size with thread locking mechanism, is one of the most commonly used connectors in factory automation, generally connecting with automation sensors in factory packaging and delivery system, outdoor LED module, security grating screen, and new energy signal control applications.
● 3 pin, 4 pin, 5 pin, 6 pin, 8 pins
● PCB contacts or Solder type (custom wire specification)
● Voltage rating: 60V, 30V
● Current rating: 4A, 3A, 1.5A
● IP67 protection degree
● Anti-vibration
● 3Pin, 4Pin, 5Pin, 6Pin, 8Pin aie available
● RoHS, CE compliant
● Protection degree: IP67 in locked status, IP68 base on customer specific requirements
● We can also quote on a huge selection of products that are not normally stocked
● High quality gold-plated solid phosphor bronze contacts, ≥600 times mating life
● Anti-vibration locking screw design
● Support samples retail and bulk orders
FAQ
● What is Panel Mount connector?
Panel Mount is a mechanical feature or features built into the design of a connector half. It allows the connector to be secured to an equipment panel, external case or enclosure. Often (but not always), connectors fitted with panel mount features will be cable connectors.
● Can i have a sample for test?
Yes, sample order is welcomed, the lead time will be 3-7 days according to your request.
● Are you a factory? where is your factory?
Yes, we are a factory, we located in Dongguan, Guangdong, China.
● Do you have certificates about the waterproof connectors?
Yes, we have CE for all waterproof connectors.
● Do you accept OEM & ODM service?
Yes, we accept OEM service. We wil produce according to your requirment. ODM are also welcomed. Our enginers have more than 10 years experience for waterproof connector industry. We provide our best service for your refer.
