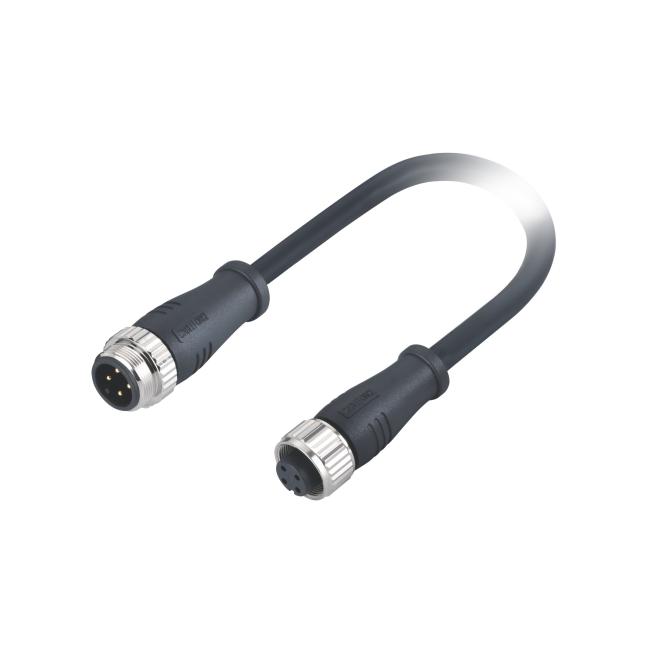

M16 Connector Male To Female 4 Pin A Code Molded Pur 1m 4x16awg Unshielded Cable
|
Connector Technical Data
|
|||||||||
|
Model Number
|
MD04C3LSAB16RK10 | ||||||||
| Housing/Outer shell | TPU, Brass with nickel plated | ||||||||
|
Connectors No.
|
4 Pin
|
||||||||
|
Contact
|
Brass, Phosphor bronze
|
||||||||
| O Ring | FKM , Silicon, O-Ring | ||||||||
| Insulation Resistance | ≥100MΩ | ||||||||
| Contact Resistence | ≤5MΩ | ||||||||
| Termination | Soldering | ||||||||
| Cable Length | 1M or Customized length | ||||||||
| Contact Carrier | PA66,GF | ||||||||
| Rated temperature | -40℃ ~ +80℃ | ||||||||
| Compliance | RoHs compliance | ||||||||
|
Pollution Degree
|
3 | ||||||||
| Protection Degree | IP67, IP68 | ||||||||
M16 Connectors is the circular connectors with threaded joint M16 designed to IEC 61076-2-106 and IEC 60130-9 with a robust metal housing and environmental protection rating of IP67 when mated, M16 connector is an ideal solution for power and signal transmission in harsh environments and industrial applications.
● Cableforce offers pole variants of 5Pin, 6Pin, 7Pin, 12Pin, 14 Pins
● Voltage rating: 300V, 125V, 60V
● Current rating: 8A, 4A
● Custom cable specification and lengths, molded with PVC, PUR or TPE cable
● The panel mount receptacle counter part with PCB contacts or Solder cup
● Oil-Resistant, Hydrolysis Resistant, UV-Resistant, Drag China cable options are available
● IP67 degree of protection
● Robust metal connector shells
● Excellent EMI shielding
1. Cable jacket with different colors,grey,black,orange,yellow,blue,overmolded color can be customized.
2. Flexible: connectors for on-site assembly,extremely high winding and unwinding strength
3. Soldering connection: proven connection technology for a large selection of different conductors
4. Connector Screw/Nut:Plastic/Brass/Stainless steel
6. 90 degree angled or straight(180 degree) overmolded M8 connector with PUR or PVC cable
7. M16 extension cable or Flying leads(open cable ends),with good oil resistance/ chemical resistance
