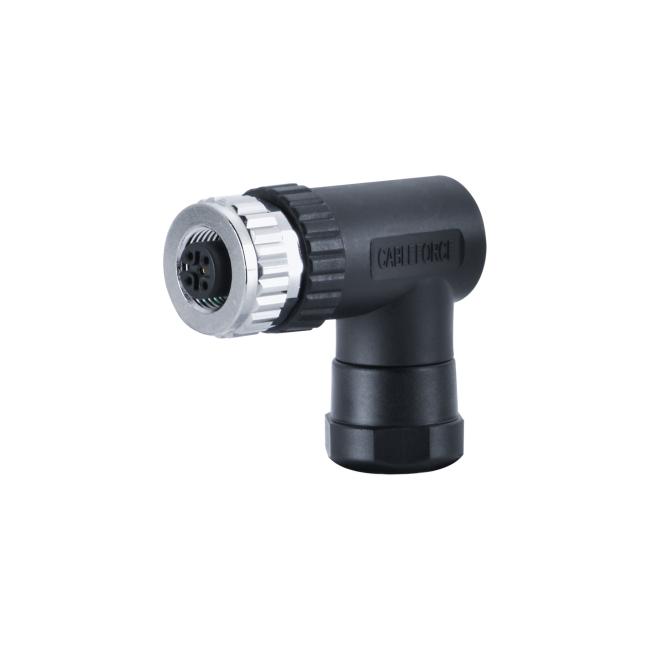

Screw Termination M12 Circular Connector 5 Pin A Code Female 90 Degree Field Wireable Pg7
|
Connector Technical Data
|
|||||||||
|
Model Number
|
MC04A2RWAP-P7 | ||||||||
|
Connectors No.
|
5Pin
|
||||||||
| Connector gender | Female connector | ||||||||
| Wire gauge |
24AWG/ 0.25mm², 22AWG/ 0.34mm², 20AWG/ 0.5mm²
|
||||||||
| Sealing | O-Ring | ||||||||
| Locking System | M12 × 1.0 screw | ||||||||
| Tightening Torque | Recommend:0.2Nm | ||||||||
| Locking screws | Brass with nickel plated | ||||||||
| Straight/90°right angled | 90°right angled | ||||||||
|
Contacts Plating
|
Au(Gold) | ||||||||
| O ring | FKM, NBR | ||||||||
| Insulation resistance | ≥100MΩ | ||||||||
| Contact resistence | ≤5MΩ | ||||||||
| Reference standard | IEC 61076-101 | ||||||||
| Connector flamability | UL94 V0 | ||||||||
|
Pollution degree
|
3 | ||||||||
The M12 metric size A-Coding connectors, based on IEC 61076-2-101 standard, it is the most commonly used connector in the factory automation. M12 A-Coding connectors mainly designed for sensor and actuator devices. CABLEFORCE M12 A-Coding connectors are developed and designed for harsh industrial and climatic environments, e.g. High temperature range endurance, Hydrolysis resistant, Oil resistant, Corrosion resistant, UV-Resistant, Abrasion resistant, Bending and Drag Chain applicable. M12 A-Coding is a specified single keyway design; differentiate itself from B, C, D, X, S, T, K, L, M, Y-Coding.
● Cableforce field wireable connector is available with contacts: 3pin, 4pin, 5pin, 8pin, 12pin
● We also sell the related bulk cables with unshieled, shielded, oil resistant, hydrolysis resistant, UV-resistant options
● The receptacle counter part with PCB contacts or Solder type panel mount connectors with wires
● Operating voltage 250V/ 60V/ 30V;
● Current range: 4A, 2A, 1.5A
● Degree of protection IP67
● Gold-plated solid brass or phosphor bronze contacts ≥ 600 times mating life
● Durable cable material suitable for Drag Chain moving and bending demands
● Good stripping and terminating properties
● Sturdy metal coupling screws with anti-vibration design, 48 hours Salt Spray Test
● UV Resistant, Hydrolysis Resistant,Oil resistant
● Temperature Range: Dynamic -25 ~ 80℃, Static: -40 ~ 80℃.
● Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
● RoHS, REACH compliant.
How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Always double confirm drawing before production .
Using Best in Class Materials
Cableforce Advantages
1. 100% high quality, all failed parts get free warranty within 30 days after received.
2. Accept 10 years warranty upon customer requirement.
3. Repairs parts are available within 10years; we will inform the EOL products to you from time to time
4. Free LOGO on the surface of over-molded connectors can be provided upon customer requirement.
5. Unique designed package for you can be provided upon customer requirement.
6. Special feature and service can be provided upon requirement.
Cableforce Company Profile
Cableforce focuses on the industrial connectors and cable assmebly's reaeach,development,manufature and sales.Whether the requirements are large or small,complex or simple,Cableforce has the experience and skills to get the job done right.With the efficient modern machinery and instruments of cable and connector‘s development and production,enable us supplying customers with 2D,3D designing,tooling & prototyping,cable cutting,soldering,crimping,epoxy resin injection,plastic injection molding,printing and testing.
