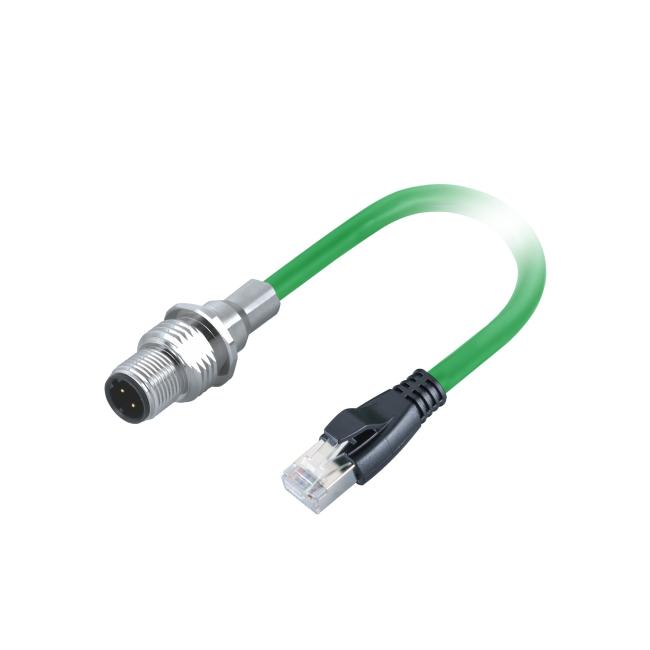

D Code Male To Rj45 M12 Cable Assembly With Gland Connector Shielded Molded 1m Pvc Cat 5e 4x22awg Green
|
Connector Technical Data
|
|||||||||
| Model Number | RJ5EA1-MC04C5RSDSB22CG10 | ||||||||
| Wire gauge | 0.34(AWG 22) | ||||||||

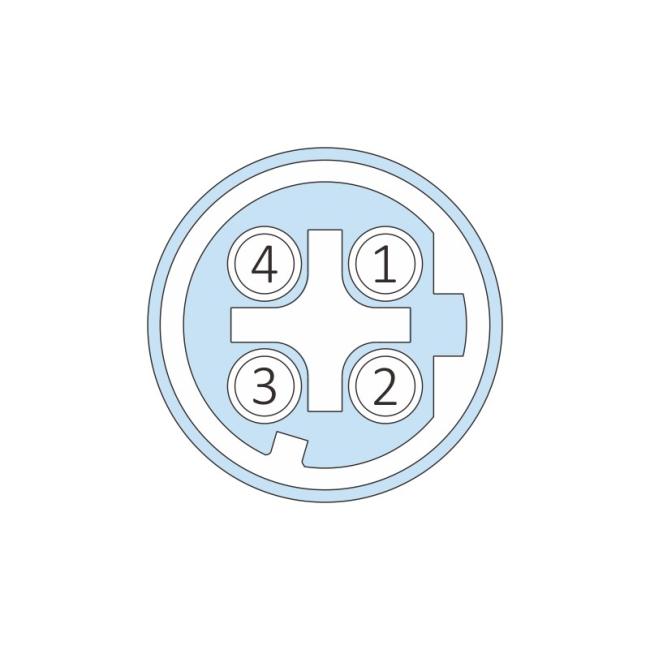

| Coding |
D coded
|
||||||||
|
Rated current
|
4 A
|
||||||||
|
Rated voltage
|
250V
|
||||||||
| Impulse voltage | 2500V | ||||||||
| Cable color |
Green
|
||||||||
|
Type
|
M12 D Code Cable Connector
|
||||||||
|
Contact Carrier
|
TPU+GF
|
||||||||
|
Screw Nut
|
Brass,CNC,Nickel-plated
|
||||||||
|
Contact
|
Phosphor bronze | ||||||||
|
Pollution Degree
|
3 | ||||||||
|
Protection Degree
|
IP67,IP68
|
||||||||
We provide customers with the following cable custom services:
● Custom cable color and length, custom print and labeling as well as packaging
● Custom Material: Extreme Temperature Resistant, High Flexible, UV Resistance, Oil Resistance, LSZH, Hydrolysis Resistance, Anti-Corrosion;
● Connector Configuration: Single Ended, Double Ended, multi Ended, multi-core wire, mixed joint and other configurations;
● Mechanical Reliable: Mating Life, EMI/EMC Shielding, Waterproof, Dustproof, Anti Vibration, Abrasion Resistant, Bending Endurance, Drag Chain, Welding resistant, etc.;
● Transmission Performance: Bandwidth, Voltage and Current rating, Impedance and Measurement Accuracy, etc.
FAQ
● What is PROFIBUS and how it works?
Profibus (from process field bus) is a protocol for field bus communication in automation technology. Profibus links automation systems and controllers with decentralized field devices such as sensors, actuators, and encoders. Profibus networks exchange data using a single bus cable.
● What does the coding mean on M12 connectors?
This coding prevents incorrect mating on products. In addition, shielding is available in most coded M12 connectors. For example, X-coded connectors are specifically shielded by the design of their coding.
● What is difference between PROFIBUS and Ethernet?
PROFINET is a fieldbus system which is based on Ethernet. PROFINET is one of the many industrial ethernet systems out there, which is often compared to PROFIBUS. PROFINET is a full duplex system. Because it's ethernet based, PROFINET can operate on a much higher transmission speed than PROFIBUS.
