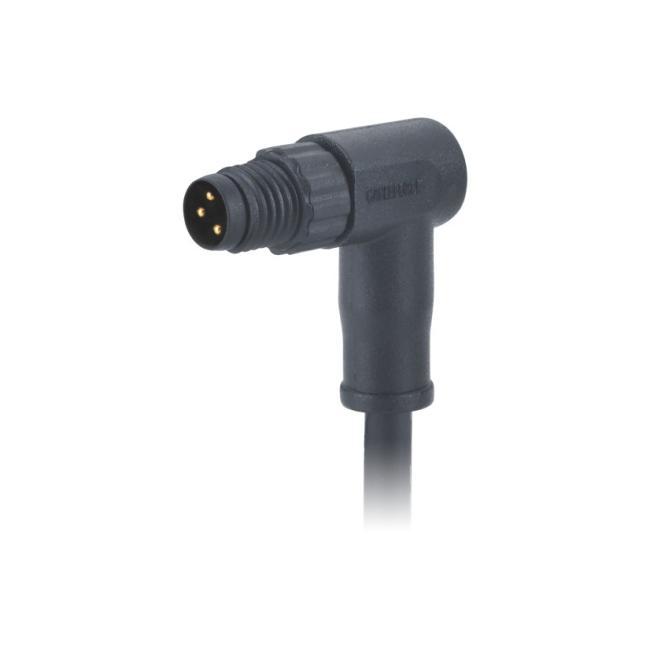

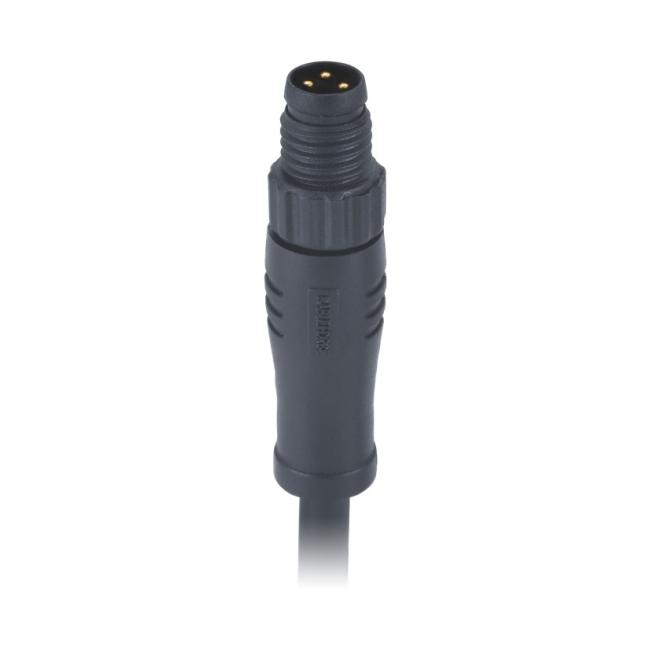

Plastic Screws 3 Pin M8 Circular Connector Molded 0.5m Pvc 3x24awg Unshielded Black Cable
|
Connector Technical Data
|
|||||||||
| Model Number | RJ5EA1-MC04C5RSDSB22CG10 | ||||||||
| Wire gauge | 0.25(AWG 24) | ||||||||
| Coding |
A coded
|
||||||||
| Wire insulation | PVC | ||||||||
| Rated temperature | -40℃~+80℃ | ||||||||
| Cable features | UV resistance | ||||||||
| Cable color | Black | ||||||||
| Cable flamability | VW-1 | ||||||||
| Locking screws | Nylon plastic | ||||||||
| Connector flamability | UL94 HB | ||||||||
|
Contact
|
Phosphor bronze | ||||||||
|
Pollution Degree
|
3 | ||||||||
|
Protection Degree
|
IP67,IP68
|
||||||||
● Custom cable specification and lengths, molded with PVC or PUR cable
● The receptacle counter part with PCB contacts or Solder type panel mount connectors
● Shielded, Oil-Resistant, Hydrolysis Resistant, UV-Resistant cable available
● Voltage rating: 60V, 30V
● Current rating: 4A, 3A, 1.5A
● IP67 protection degree
● Anti-vibration
We provide customers with the following cable custom services:
● Gold-plated solid brass or phosphor bronze contacts ≥ 600 times mating life
● Durable cable material suitable for Drag Chain moving and bending demands
● Good stripping and terminating properties
● Nylon plastic coupling screws with anti-vibration design
● UV Resistant, Hydrolysis Resistant,Oil resistant, Chemical resistant
● Temperature Range: Dynamic -25 ~ 80℃, Static: -40 ~ 80℃.
● Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
● RoHS, REACH compliant.
FAQ
● What is PROFIBUS and how it works?
Profibus (from process field bus) is a protocol for field bus communication in automation technology. Profibus links automation systems and controllers with decentralized field devices such as sensors, actuators, and encoders. Profibus networks exchange data using a single bus cable.
● What does the coding mean on M12 connectors?
This coding prevents incorrect mating on products. In addition, shielding is available in most coded M12 connectors. For example, X-coded connectors are specifically shielded by the design of their coding.
● What is difference between PROFIBUS and Ethernet?
PROFINET is a fieldbus system which is based on Ethernet. PROFINET is one of the many industrial ethernet systems out there, which is often compared to PROFIBUS. PROFINET is a full duplex system. Because it's ethernet based, PROFINET can operate on a much higher transmission speed than PROFIBUS.
