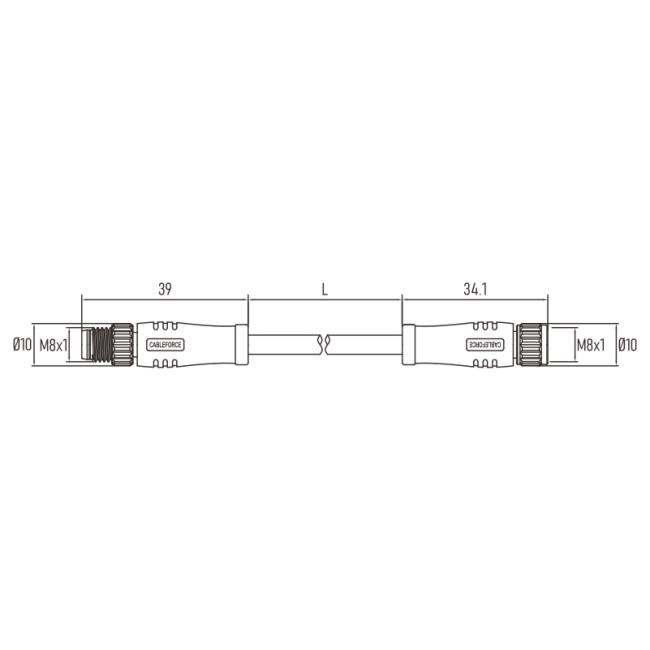

IP67 M8 Circular Connector Male To Female Connector AWG 24 M8 4 Pin Cable
| Connector Technical Data | |||||
| Contacts No. | 4Pin | ||||
| Referance standard | IEC 61076-2-104 | ||||
| Rated current | 3A | ||||
| Rated voltage | 60V | ||||
| Impulse voltage | 1500V | ||||
| Wire gauge | 0.25²(AWG 24) | ||||
| Rated temperature | Flexible: -25℃ ~ +80℃, Static: -40℃ ~ +80℃ | ||||
| Insulation resistance | ≥100MΩ | ||||
| Contact resistance | ≤5mΩ | ||||
| Over-molding | TPU | ||||
| Contact carrier | TPU+GF | ||||
| Screw nut | Brass, CNC, Nickel-plated | ||||
| Contact | Brass | ||||
| Contacts plating | Au(Gold) | ||||
| O-ring | FKM, Silicon O-ring | ||||
| Protection degree | IP67, IP68 | ||||
● Optional contacts number: 3Pin, 4Pin, 5Pin, 6Pin, 8Pin
● Authentication: RoHS, CE
● Rated temperature: Flexible: -25 ~ +80℃, Static: -40 ~ +80℃
● Protection degree: IP67 in locked status, IP68 base on customer specific requirements
FAQ
● What is M8 connector?
The M8 connector is used specifically with industrial sensors and features a waterproof 3-pin screw. These connectors come pre-assembled and remain watertight even if submerged. These heavy-duty connectors are typically used in harsh environments.
● What is the difference between M8 and M12?
Circular M12 and M8 connectors are used in industrial automation to connect devices securely. M12 designs can also be used for Fieldbus connections. The M8 connector is used specifically with industrial sensors. This connector features a waterproof 3-pin screw.
● Can i have a sample for test?
Yes, sample order is welcomed, the lead time will be 3-7 days according to your request.
● Are you a factory? where is your factory?
Yes, we are a factory, we located in Dongguan, Guangdong, China.
