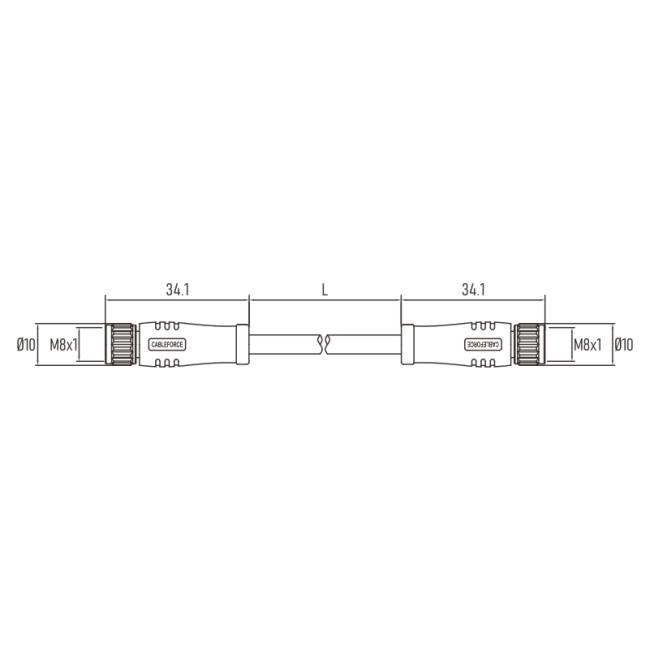

3Pin M8 Circular Connector Female To Female Shielded M8 Extension Cable
| Connector Technical Data | |
| Contacts No. | 3Pin |
| Referance standard | IEC 61076-2-104 |
| Rated current | 3A |
| Rated voltage | 60V |
| Impulse voltage | 1500V |
| Wire gauge | 0.25²(AWG 24) |
| Rated temperature | Flexible: -25℃ ~ +80℃, Static: -40℃ ~ +80℃ |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤5mΩ |
| Over-molding | TPU |
| Contact carrier | TPU+GF |
| Screw nut | Brass, CNC, Nickel-plated |
| Contact | Brass; Phosphor bronze |
| Contacts plating | Au(Gold) |
| O-ring | FKM, Silicon O-ring |
| Protection degree | IP67, IP68 |
| Pollution degree | 3 |
CABLEFORCE Products Features
● Optional contacts number: 3Pin, 4Pin, 5Pin, 6Pin, 8Pin
● Authentication: RoHS, CE
● Protection degree: IP67 in locked status, IP68 base on customer specific requirements
● Anti-vibration locking screw design
● Customized cable length, with PUR, PVC, LSZH, Ethernet cable options
FAQ
● What is M8 connector?
The M8 connector is used specifically with industrial sensors and features a waterproof 3-pin screw. These connectors come pre-assembled and remain watertight even if submerged. These heavy-duty connectors are typically used in harsh environments.
● What is the Applications of the M8 connector?
Common applications for the M8 connector include actuators, PLCs, I/O boxes, sensors, and switches in food and beverage processing, machine building, rubber and plastics, textile and printing presses, and in HVAC system valves.
● What is the difference between M8 and M12?
Circular M12 and M8 connectors are used in industrial automation to connect devices securely. M12 designs can also be used for Fieldbus connections. The M8 connector is used specifically with industrial sensors. This connector features a waterproof 3-pin screw.
