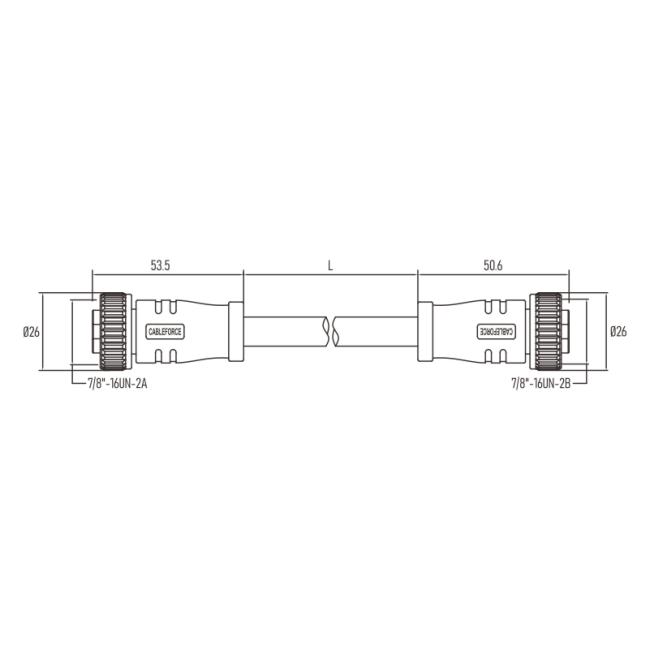

Unshielded Mini Change Connectors Female To Female For Automation Applications
|
Connector Technical Data
|
|||||||||
|
Model Number
|
MF05C4LCAB18CK35 | ||||||||
|
Connectors No.
|
5 Pin
|
||||||||
|
Rated Current
|
13A, 8A
|
||||||||
|
Rated Voltage
|
300V
|
||||||||
|
Impulse Voltage
|
2500V
|
||||||||
| Wire gauge | AWG 16, AWG 18 | ||||||||
| Over molding | TPU | ||||||||
| Contact carrier | TPU+GF | ||||||||
| Contect | Phosphor bronze | ||||||||
| Termination | Crimping | ||||||||
| Protection degree | IP 67, IP68 | ||||||||
The MIN-Series is so named because they are generally referred to in the industry as Mini-Change connectors, or Mini connectors. First introduced in 1968, the Mini-Change connector pioneered the market for rugged, sealed connectors in industrial applications. These connectors provided the first quick-connect alternative to hard-wiring. First introduced in 1968, the Mini-Change connector pioneered the market for rugged, sealed connectors in industrial applications. These connectors provided the first quick-connect alternative to hard-wiring.
FAQ
● What is UL Certification and Why is it Important?
In a nutshell, UL is a safety organization that sets industry-wide standards on new products. They continually check these products to ensure they’re up to these standards. UL testing makes sure that wire sizes are correct or devices can handle the amount of current they claim to be able to. They also ensure that products are constructed correctly for the highest safety.
A common misconception is that UL tests every product themselves. This isn’t always the case. Instead, UL authorizes a manufacturer to test the product themselves using the UL stamp. They then follow up on a regular basis to make sure that they are testing their products and following proper guidelines. This is one of many reasons that UL certification is attractive to businesses.
