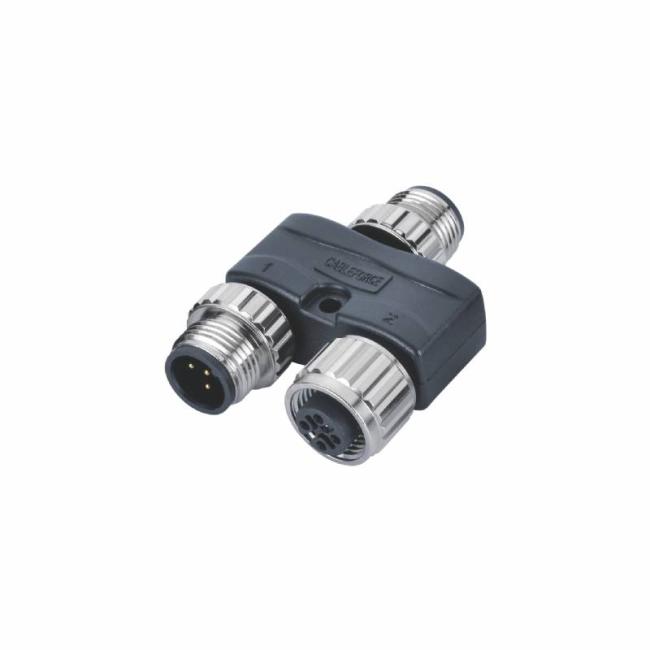

4A 250V NMEA 2000 Cables IP67 Metal Screw 3 Pin M12 Y Splitter
|

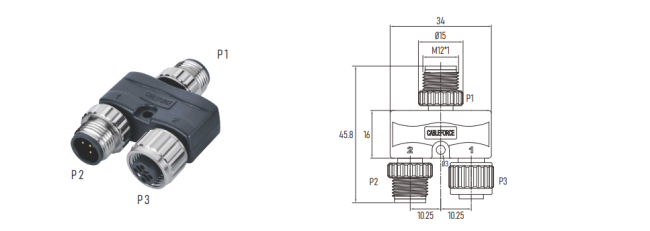

Connector Technical Data
|
|||||||||
| Model Number | MC03Y-MFFAB | ||||||||
| Contact No | 3 pin | ||||||||
| Coding |
A coded
|
||||||||
| Screw Type | Metal Screw | ||||||||
| Locking System |
M12 x 1.0 screw
|
||||||||
| Contact plating |
Au (Gold)
|
||||||||
|
Type
|
M12 NMEA 2000 Y Splitter | ||||||||
|
Contact Carrier
|
TPU+GF
|
||||||||
| Contacts plating |
Au ( Gold )
|
||||||||
|
Contact
|
Male: Brass, Female: Phosphor bronze
|
||||||||
| O-ring | FKM Silicon | ||||||||
|
Protection Degree
|
IP67,IP68
|
||||||||
● M12*1 thread locking mechanism, anti-vibration locking design
● Easy quick connect and disconnect coupling
● Pin configurations: 4, 5, 8 positions
● 3P 4P 5P 8P are available
● A, B, D coding available
● Accept OEM & ODM order to meet your customized requirement
● RoHS, REACH compliant.
FAQ
● What is Y splitter cable?
A “Y Splitter” is a common term used for any cable that has a single connector on one end, and a dual connector on the other.
● What is a Y splitter cable used for?
Y splitter Cable The Shimano EW JC130 Y connector cable is used to connect two shifters to a Junction box or Systems Informations Display while using only one e Tube port. It is generally used with the EW RS910 junction mainly because that specific junction only has two e Tube ports.
