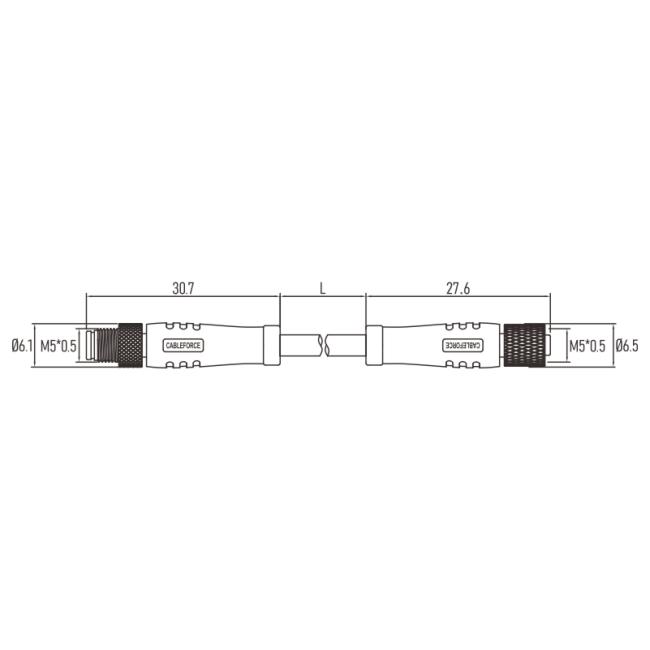

3Pin Molded M5 Circular Connector Male To Female Connector With 1M PVC Cable
| Connector Technical Data | |
| Contacts No. | 3Pin, 4Pin |
| Reference standard | IEC 61076-2-105 |
| Rated current | 1A |
| Rated voltage | 60V |
| Impulse voltage | 500V |
| Locking system | M5×0.5 screw |
| Tightening torque | Recommend: 0.1Nm, Max: 0.15Nm |
| Termination | Soldering |
| Wire gauge | 0.14mm²(AWG 26) |
| Rated temperature | Flexible: -25℃ ~ +80℃, Static: -40℃ ~ +80℃ |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤6mΩ |
| Over-molding | TPU |
| Contact carrier | TPU+GF, Black |
| Screw nut | Brass, CNC, Nickel-plated |
| Contact | Male: Brass, Female: Phosphor bronze |
| Contacts plating | Au(Gold) |
| O-ring | FKM, Silicon |
| Protection degree | IP67 |
| Pollution degree | 3 |
Features of M5 connector cables
● Straight connector or 90 degree connector are available
● Male or female are available
● 3Pin, 4Pin are optional
● Cable length is at buyer's option
● IP67, water and oil resistant
FAQ
● What is M5 connector?
The Sure-Seal M5 connector series is specifically designed to accommodate the rigors of miniature sensors and other applications that require a multitude of connections within a small footprint. The M5 connector series is designed per IEC 61076-2-105 standard.
● Can i have a sample for test?
Yes, sample order is welcomed, the lead time will be 3-7 days according to your request.
● Do you accept OEM & ODM service?
Yes, we accept OEM service. We wil produce according to your requirment. ODM are also welcomed. Our enginers have more than 10 years experience for waterproof connector industry. We provide our best service for your refer.
