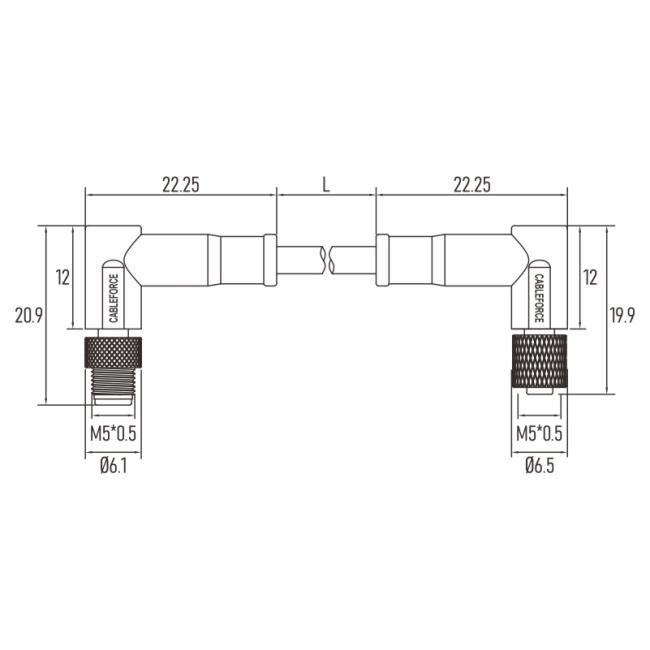

1M PVC M5 Male To Female Cable 3Pin Molded Right Angled Connector
| Connector Technical Data | |
| Contacts No. | 3Pin, 4Pin |
| Reference standard | IEC 61076-2-105 |
| Rated current | 1A |
| Rated voltage | 60V |
| Impulse voltage | 500V |
| Locking system | M5×0.5 screw |
| Tightening torque | Recommend: 0.1Nm, Max: 0.15Nm |
| Termination | Soldering |
| Wire gauge | 0.14mm²(AWG 26) |
| Rated temperature | Flexible: -25℃ ~ +80℃, Static: -40℃ ~ +80℃ |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤6mΩ |
| Over-molding | TPU |
| Contact carrier | TPU+GF, Black |
| Screw nut | Brass, CNC, Nickel-plated |
| Contact | Male: Brass, Female: Phosphor bronze |
| Contacts plating | Au(Gold) |
| O-ring | FKM, Silicon |
| Protection degree | IP67 |
| Pollution degree | 3 |
Features of M5 connector cables
● Straight connector or 90 degree connector are available
● Male or female are available
● 3Pin, 4Pin are optional
● Cable length is at buyer's option
● IP67, water and oil resistant
● M8 & M12 connectors also available
Cableforce Core Benefits
● Free technical consultation
● Free technical drawings
● Samples & prototyping
● Custom labels & packaging
● Using best in class materials
● Competitive pricing
● Timeline planning
● Certified cables on request
● Quality control & 100% testing
● Guaranteed for life
● Safe and reliable system that is easy to install
● CE, IP67, UL certified
● Manufactured, assembled and tested in our facility
● Excellent weathering, UV and temperature resistance
● High impact strength even
● Ingress protection up to lP68
● Vibration proof connections
● RoHS and REACH compliant
● Excellent chemical resistance: to fuels, oils, alkalies, weak acids
● Free of halogen, LSZH
