IP67 M5 Circular Connector 4Pin Molded Male To Male Connector
Price:
Negotiated
MOQ:
100
Delivery Time:
2~3 weeks
Brand:
CABLEFORCE
Product Description

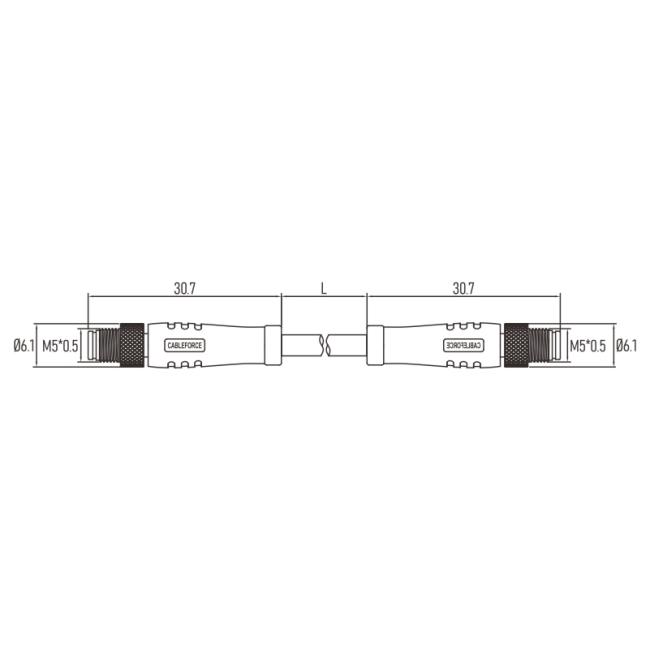

M5 A Code Circular Male To Male Connector 4Pin Molded With 1M PVC Cable
| Connector Technical Data | |
| Contacts No. | 3Pin, 4Pin |
| Reference standard | IEC 61076-2-105 |
| Rated current | 1A |
| Rated voltage | 60V |
| Impulse voltage | 500V |
| Locking system | M5×0.5 screw |
| Tightening torque | Recommend: 0.1Nm, Max: 0.15Nm |
| Termination | Soldering |
| Wire gauge | 0.14mm²(AWG 26) |
| Rated temperature | Flexible: -25℃ ~ +80℃, Static: -40℃ ~ +80℃ |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤6mΩ |
| Over-molding | TPU |
| Contact carrier | TPU+GF, Black |
| Screw nut | Brass, CNC, Nickel-plated |
| Contact | Male: Brass |
| Contacts plating | Au(Gold) |
| O-ring | FKM, Silicon |
| Protection degree | IP67 |
| Pollution degree | 3 |
Description
The M5 connectors provide 3 and 4 position cable cordsets and panel-mounted receptacles. All connectors are either factory PUR/PVC overmolded or supplied with attached wire leads.
Features of M5 connector cables
● Straight connector or 90 degree connector are available
● 3Pin, 4Pin are optional
● Cable length is at buyer's option
● IP67, water and oil resistant
● M8 & M12 connectors also available
FAQ
● What is M5 connector?
The Sure-Seal M5 connector series is specifically designed to accommodate the rigors of miniature sensors and other applications that require a multitude of connections within a small footprint. The M5 connector series is designed per IEC 61076-2-105 standard.
