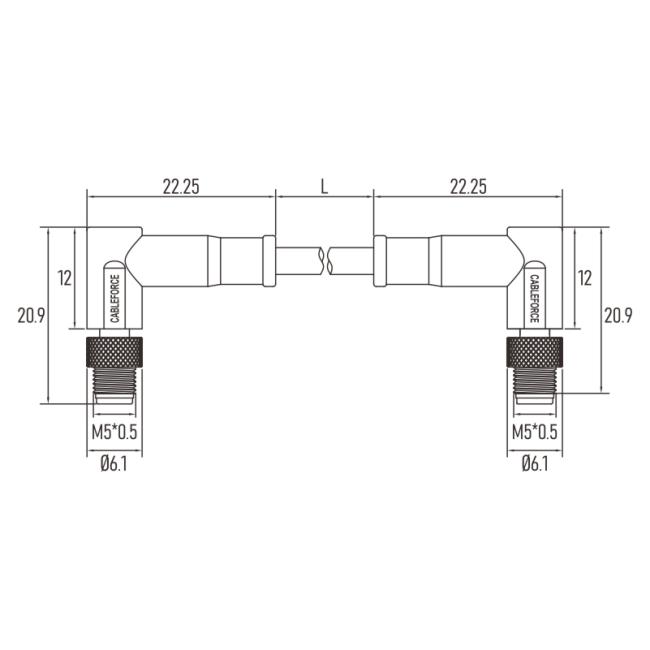

Right Angled M5 Male To Male Cable 4Pin Molded 1M TPU Over Molding Cable
| Connector Technical Data | |
| Contacts No. | 3Pin, 4Pin |
| Reference standard | IEC 61076-2-105 |
| Rated current | 1A |
| Rated voltage | 60V |
| Impulse voltage | 500V |
| Locking system | M5×0.5 screw |
| Tightening torque | Recommend: 0.1Nm, Max: 0.15Nm |
| Termination | Soldering |
| Wire gauge | 0.14mm²(AWG 26) |
| Rated temperature | Flexible: -25℃ ~ +80℃, Static: -40℃ ~ +80℃ |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤6mΩ |
| Over-molding | TPU |
| Contact carrier | TPU+GF, Black |
| Screw nut | Brass, CNC, Nickel-plated |
| Contact | Male: Brass |
| Contacts plating | Au(Gold) |
| O-ring | FKM, Silicon |
| Protection degree | IP67 |
| Pollution degree | 3 |
Features of M5 connectors
● Customized pin
This connector has a customized and configured pin inside it which allows a firm grip to its cable to enable easy function.
● Compatibility
The M5 connectors are highly compactible in softness, flexibility and small which gives the device the ability to interact with its host without system damage.
● High resistance
This connector has a high range of abrasion resistance and controls or stops the entrance of adhesive chemicals.
● Pin count
The M5 connectors also has pin counts that work for different uses. Most of the commonly used connector in this category has 3 – 4 pin counts.
● Acceptance
This connectors are generally accepted. It is widely distributed after production around the globe.
● High surface tension
This connectors have the ability to survive and function well in water areas or dusty environment which might be hazards to some other products thereby obstructing quality performance in work environment. If you want a perfect job around a wet area and you need water resisting connectors, think M5 connectors.
Applications of M5 connectors
● Fluid (wet/water) environment
● Robotics
● LED screens
● Communications
● Automobiles
● Control system
● Agriculture
● Dusty areas
FAQ
● What is M5 connectors?
The Sure-Seal M5 connector series is specifically designed to accommodate the rigors of miniature sensors and other applications that require a multitude of connections within a small footprint. The M5 connector series is designed per IEC 61076-2-105 standard.
● Can i have a sample for test?
Yes, sample order is welcomed, the lead time will be 3-7 days according to your request.
● Are you a factory? where is your factory?
Yes, we are a factory, we located in Dongguan, Guangdong, China.
● Do you have certificates about the waterproof connectors?
Yes, we have CE for all waterproof connectors.
● Do you accept OEM & ODM service?
Yes, we accept OEM service. We wil produce according to your requirment. ODM are also welcomed. Our enginers have more than 10 years experience for waterproof connector industry. We provide our best service for your refer.
