3m Cat 5E RJ45 Patch Cord 8P8C Blue Male Plug For Ethernet Data Center
|

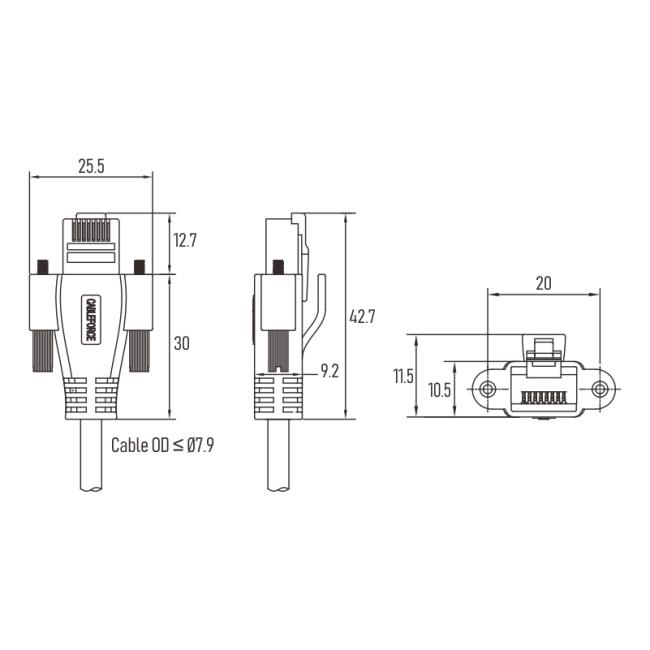

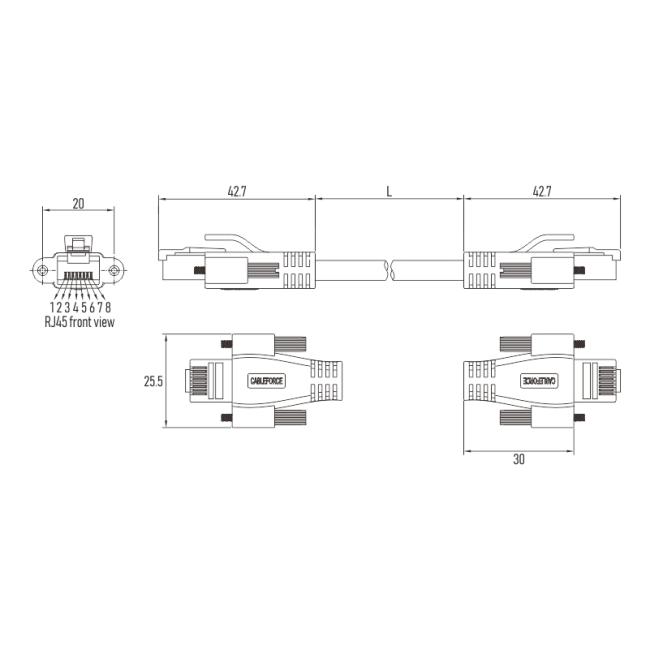

Connector Technical Data
|
|||||||||
|
Model Number
|
RJ5EC5LIB26CLB30 | ||||||||
|
Connectors No.
|
RJ45 8P8C | ||||||||
| Termination | Insulation Percing Contect | ||||||||
| Rated current | 1.5A | ||||||||
|
Rated Voltage
|
30V
|
||||||||
|
Impulse Voltage
|
1000V Contact to Contact, 1500 Contact to Screen
|
||||||||
| Locking System | M2 x0.4 Screw | ||||||||
| Contact carrier | PC | ||||||||
| Contect | Brass Gold plated | ||||||||
| Connector overmolding | PVC, TPU | ||||||||
The RJ45 patch cord cables designed to connect hub-to-hub, PC-to-PC,or Mac Computer to Mac Computer, this Cable features RJ45,male-to-male connectors, Exceeds the performance requirement of Category 5e. Gold plated connectors to insure a clean and cleartransmission.
Cable Characteristics (differences noted):
- ANSI/TIA 568-2.D compliant and Permanent Link tested to Cat5e performance
- Comes in shielded (F/UTP) or unshielded (U/UTP)
- CMX rated LLDPE outdoor jacket for rain, snow, UV sunlight, and ice resistance
- Not direct burial rated
- 24AWG solid pure copper conductors
- Supports PoE, PoE+ (IEEE 802.3af/at) up to 30W and 300V DC
- Cable jacket outer diameter (OD)
- 6.15mm (0.24”) for the shielded version
- 5.10mm (0.20”) for the unshielded version
- Insulated conductor diameter
- 0.97mm for the shielded version
- 0.91mm for the unshielded version
- Bend radius
- 1.75” for the shielded version
- 1.25” for the unshielded version
FAQ
● What is the bandwidth of a cat5 cable?
This type of network cable is made up of four twisted pairs of copper wire terminated by an RJ45 connector, which has a bandwidth of up to 100 MHz, supports 10 or 100Mbps speed. You may be able to get Gigabit speeds on a Cat5 cable, particularly if the cable is shorter, but it isn't always guaranteed.
●What does cat mean in Ethernet cable?
Both are built to a performance standard set by ANSI/TIA known as a Category, known as “Cat”. The Category defines how the cable will behave, performance-wise, at 328 feet or the maximum distance that any Ethernet cable can be run. Supports 1 Gigabit or 1,000 Mb/s speed to 328 feet.
