Green PUR 5m Cat5e Patch Cable M2x0.4 Screw Rj45 Socket Cable
Price:
Negotiated
MOQ:
100
Delivery Time:
2~3 weeks
Brand:
CABLEFORCE
Product Description
Socket Cable Network Media RJ45 Patch Cord 8P8C Green PUR Male AWG 26 Plug
|

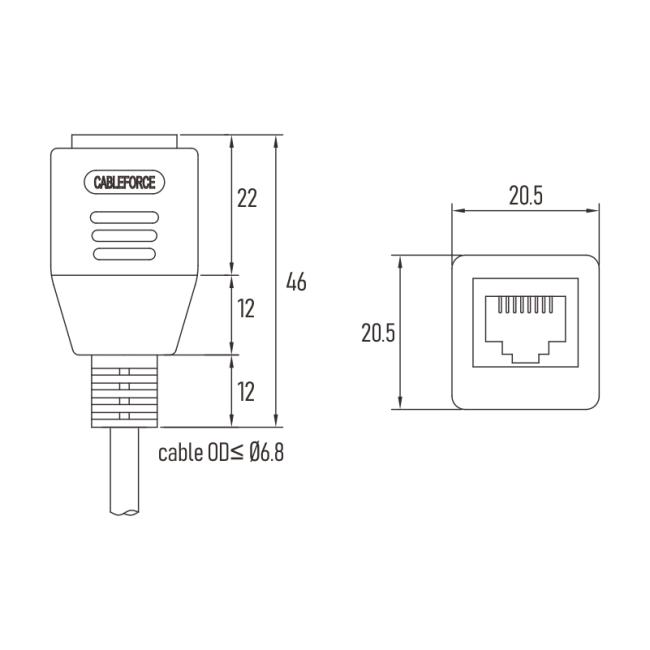

Connector Technical Data
|
|||||||||
|
Model Number
|
RJ5EC2LI26RG40 | ||||||||
|
Connectors No.
|
RJ45 8P8C | ||||||||
| Termination | Insulation Percing Contect | ||||||||
| Rated current | 1.5A | ||||||||
|
Rated Voltage
|
30V
|
||||||||
|
Impulse Voltage
|
1000V Contact to Contact, 1500 Contact to Screen
|
||||||||
| Locking System | M2 x0.4 Screw | ||||||||
| Contact carrier | PC | ||||||||
| Contect | Phosphor Bronze, Gold Plated | ||||||||
| Connector overmolding | PVC, TPU | ||||||||
Description
Cableforce Electronics Co., Limited focuses on the industrial cable and connector‘s Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 3000㎡ premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, screw and contact pin machining, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.
Cable Characteristics (differences noted):
- ANSI/TIA 568-2.D compliant and Permanent Link tested to Cat5e performance
- Comes in shielded (F/UTP) or unshielded (U/UTP)
- CMX rated LLDPE outdoor jacket for rain, snow, UV sunlight, and ice resistance
- Not direct burial rated
- 24AWG solid pure copper conductors
FAQ
● What is the difference between a cable and a connector?
A wire is a single strand of metal (e.g., copper) or optical fibers capable of transmitting power or data from one area to another. A connector is the unique end of a plug, jack, or the edge of a card that connects to a port.
●What is a RJ45 socket?
An RJ45 socket is a type of connector that is used to facilitate communication between two or more devices in a network. It resembles a telephone jack and is primarily used in Ethernet and computer networks. While an RJ45 socket resembles jacks used for telephone networks and wiring, it is characterized by a wider design.
